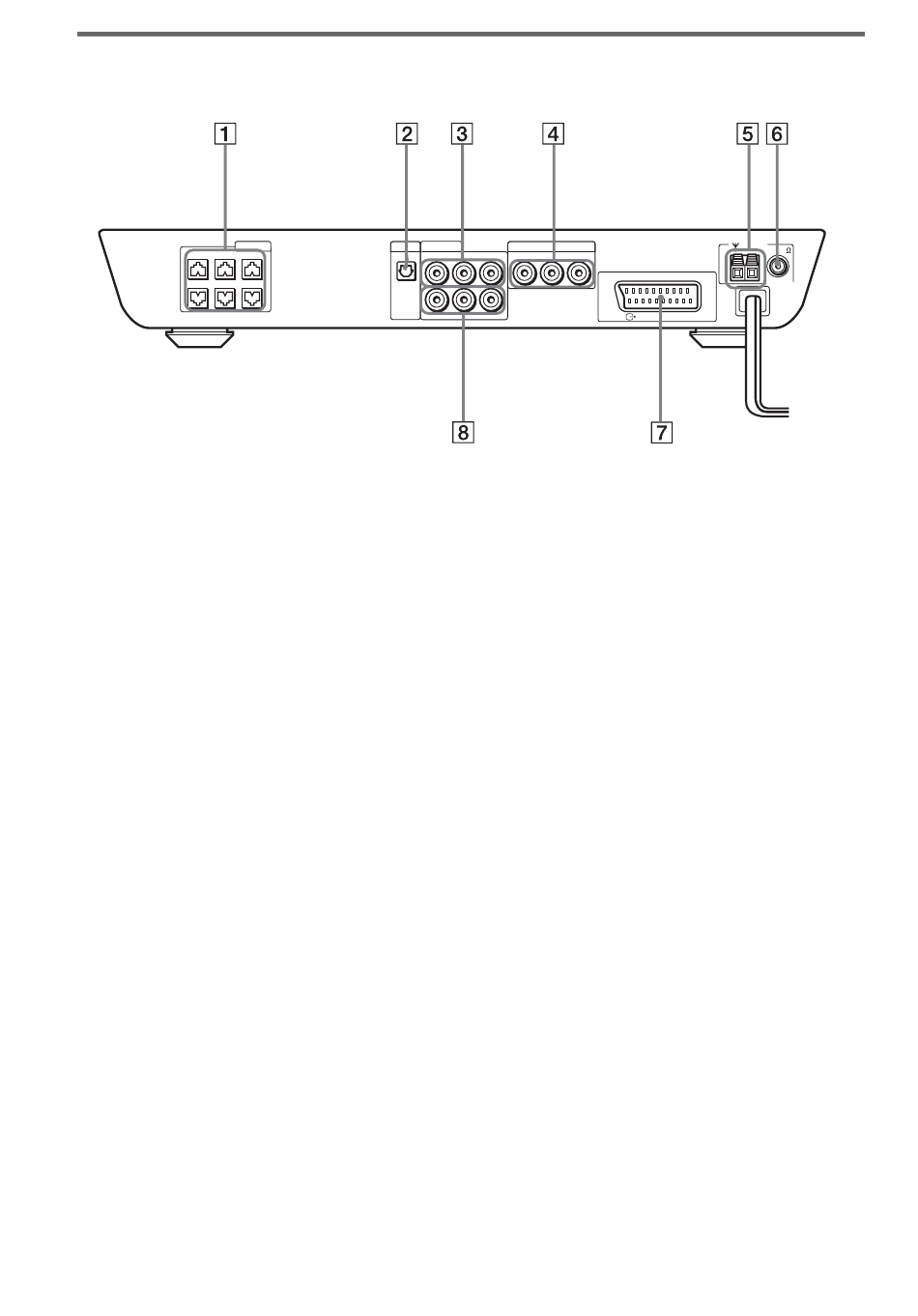

Panneau arrière
A Prises SPEAKER (Enceintes) (14)
B Prise VIDEO 2 OPTICAL DIGITAL IN
(VIDEO 2 entrée numérique optique)
(20)
C Prise VIDEO 1 ANALOG OUT (VIDEO 1
sortie analogique) (19)
D Prise VIDEO 2 ANALOG IN (VIDEO 2
entrée analogique) (19)
82 FR
SPEAKER
FRONT R CENTER FRONT L
SURR R WOOFER SURR L
VIDEO 2 VIDEO 1 VIDEO 2
AUDIO OUT VIDEO OUT AUDIO IN VIDEO IN
R L R L
OPTICAL
DIGITAL
R L
IN
AUDIO IN VIDEO IN
E Bornes AM (17)
F Prise FM 75Ω COAXIAL (17)
G Prises EURO AV OUTPUT (TO TV)
(sortie Euro AV (vers TV)) (19)
H Prise VIDEO 1 ANALOG IN (VIDEO 1
entrée analogique) (19)
AM
FM 75
EURO AV
COAXIAL
OUTPUT(TO TV)
