Connect the charger to the starter battery (battery I) as shown
in the diagram (fig. 4). Check that the correct cable cross-sec-
tions are used and that the terminals are connected correctly.
– Connect the negative charger cable for the battery I (blue
6 mm²) to the negative terminal of the charger and the
negative terminal of the battery I.
– Connect the positive charger cable for the battery I (red
6 mm²) to the positive terminal of the battery I on the charg-
er and the positive terminal for the battery I. This cable must
under all circumstances include the 30 A fuse supplied in its
circuit, positioned close to the positive terminal of battery I.

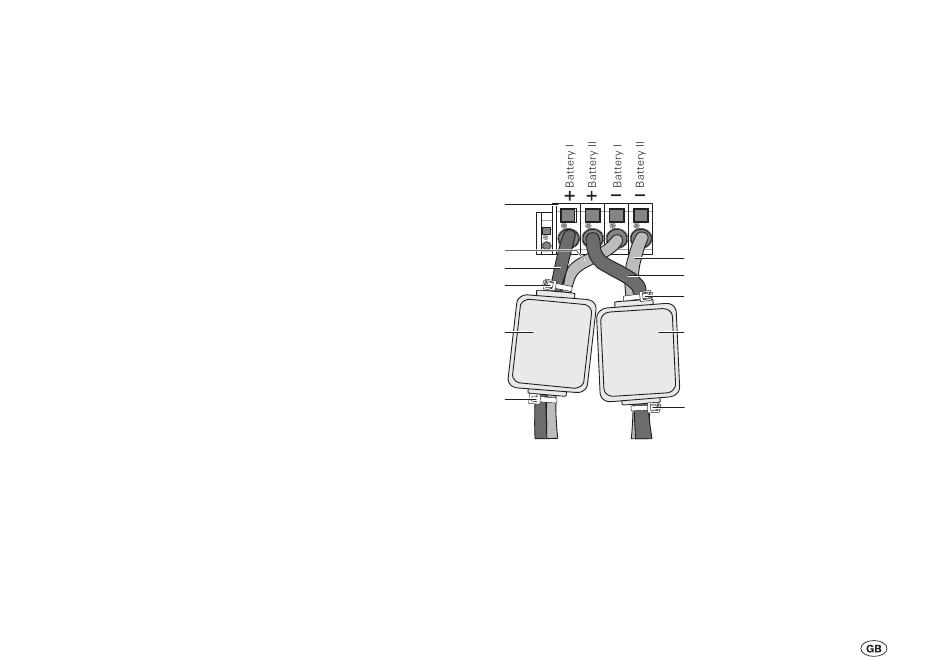

Snap ferrite
Install the snap ferrite near the device to achieve optimum
interference suppression. To this end, place the positive and
negative cables of the 12 V connections into the open ferrite,
close the snap ferrite and apply pressure until the lock engages.
Secure the snap ferrite using cable bands in front and behind
the ferrite.
1
2
3
4
5
4
1 Cage tension spring clamps
2 Negative charger cable blue
3 Positive charger cable red
4 Cable bands
5 Snap ferrite
2
3
4
5
4
Fig. 3: Snap ferrite
