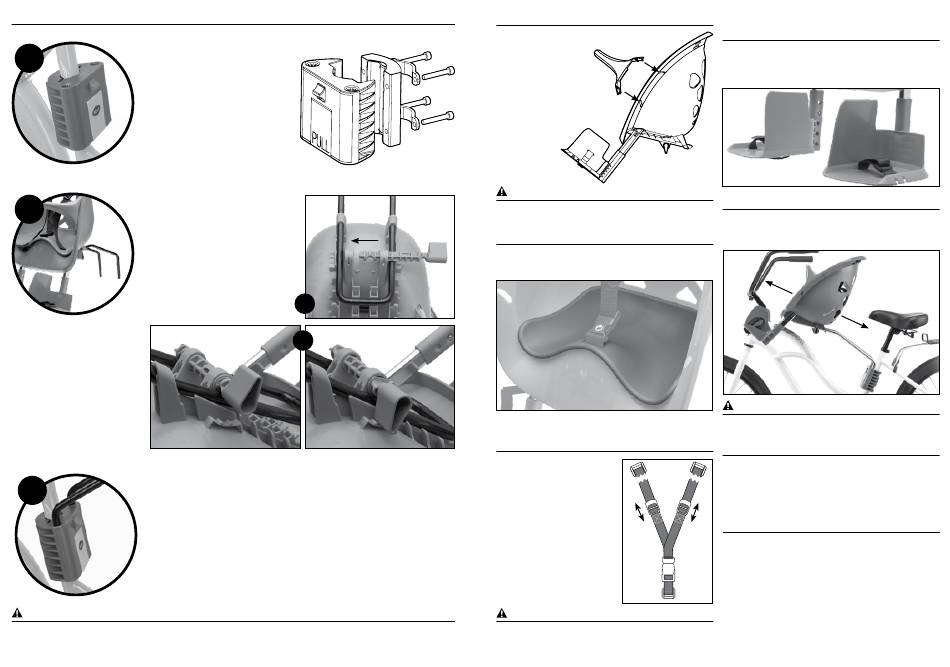

EASY, 3-STEP INSTALLATION
ATTACH MOUNT ONTO BIKE FRAME
1
1. Remove four (4) screws from back of
mount using 5mm Allen wrench.
2. Place front of mount around seat
tube of bike. Insert back of mount
to front of mount, insert screws.
Do not fully tighten. Do not place
around brake and derailleur cable
and housing.
SUSPENSION RACK AND
2
CHILD CARRIER ATTACHMENT
1. Turn the carrier upside down. Insert
suspension rack bars through holes
as shown below.
2. Insert the locking pin through the
holes under the carrier with the lever
in the unlocked position until it snaps
into place. Turn the pin 180 degrees
untill it snaps into the locked position.
UNLOCKED
CLICK SUSPENSION RACK INTO MOUNT
3
1. Slide the ends of the suspension rack into the top holes on the mount. Once secured,
you will hear a click. This means the suspension rack is secured to the mount.
2. Adjust child carrier up, down, forward and backward to prevent interference
with handlebars and front wheel when turned, and rider when pedaling.
3. Tighten the screws on the mount until mount will not slip up, down, or side to side.
4. Tighten fasteners securely, and check them frequently.
WARNING
Do not modify suspension rack or bicycle. If suspension rack will not fit on your bicycle, consult your local bicycle dealer or
call our Customer Service at 1.800.456.BELL for assistance.
4 | English
1
2
LOCKED
GRAB BAR INSTALLATION
Place bar over slot openings on the
front center of the carrier.
In order to install the bar,
align the corresponding
shapes together on the
bar and child carrier.
Snap each side into place to
secure. After installing, test by
pulling the bar away from the
child carrier to double check
it is fastened securely.
WARNING
If bar is not secured into place properly, it could fall off
during riding causing injury.
SEAT PAD INSTALLATION
Place seat pad into bottom of child carrier. Thread retention
harness through seat pad. Insert all four seat pad plugs into the
bottom of the child carrier.
RETENTION HARNESS:
3-POINT HARNESS
• Use harness slots at
child's shoulders.
• Shoulder straps should fit snugly
so that only one finger can fit
between harness and shoulder.
• Ensure top of chest clip is
positioned at armpit level.
• Ensure harness forms the
shape of a V.
• Connect each buckle end and
click to secure.
• To release, pinch each side
of buckle and pull apart
buckle ends.
WARNING
Child can fall out of child carrier if harness is not correctly
fastened and adjusted.
FOOT REST INSTALLATION
AND ADJUSTMENT
1. Loop one piece of Velcro through each foot rest and
®
attach back onto itself.
2. Spring loaded push button allows you to adjust the foot
rest up and down to accommodate your child.
CHILD CARRIER ADJUSTMENT
Move locking pin to "unlocked" position. Carrier bars can then
adjust forward or back fitting into the chassis grooves. Lock the
pin after proper adjustment is found. The child carrier should
tilt back slightly as shown below.
WARNING
Make sure that the child carrier and the child do not interfere
with the handlebars making it difficult to steer.
SEATING YOUR CHILD
WITH ONE PERSON HOLDING THE BICYCLE STEADY, THE
SECOND PERSON PLACES CHILD IN CHILD CARRIER.
Adjust harness to child's height. If child's shoulders are at or
below the lower strap slot holes, move the harness to the lower
holes. Push the plastic washer that hold the ends of the harness
out through the holes. Fasten buckles accordingly.
PRE-RIDE CHECKLIST
1. Suspension rack tightly fastened to bike?
2. Carrier mounted properly on suspension rack?
3. Harness properly fastened and adjusted?
4. Make sure when you turn handlebars with child in carrier,
the handlebars do not pinch child. Adjust carrier clearance
accordingly to allow for space.
5. Maximum load of 33 pounds?
6. Approved bicycle helmets for child and rider?
7. Child's clothing is clear of all moving parts?
8. Bicycle safety check?
Double check all steps before departing!
