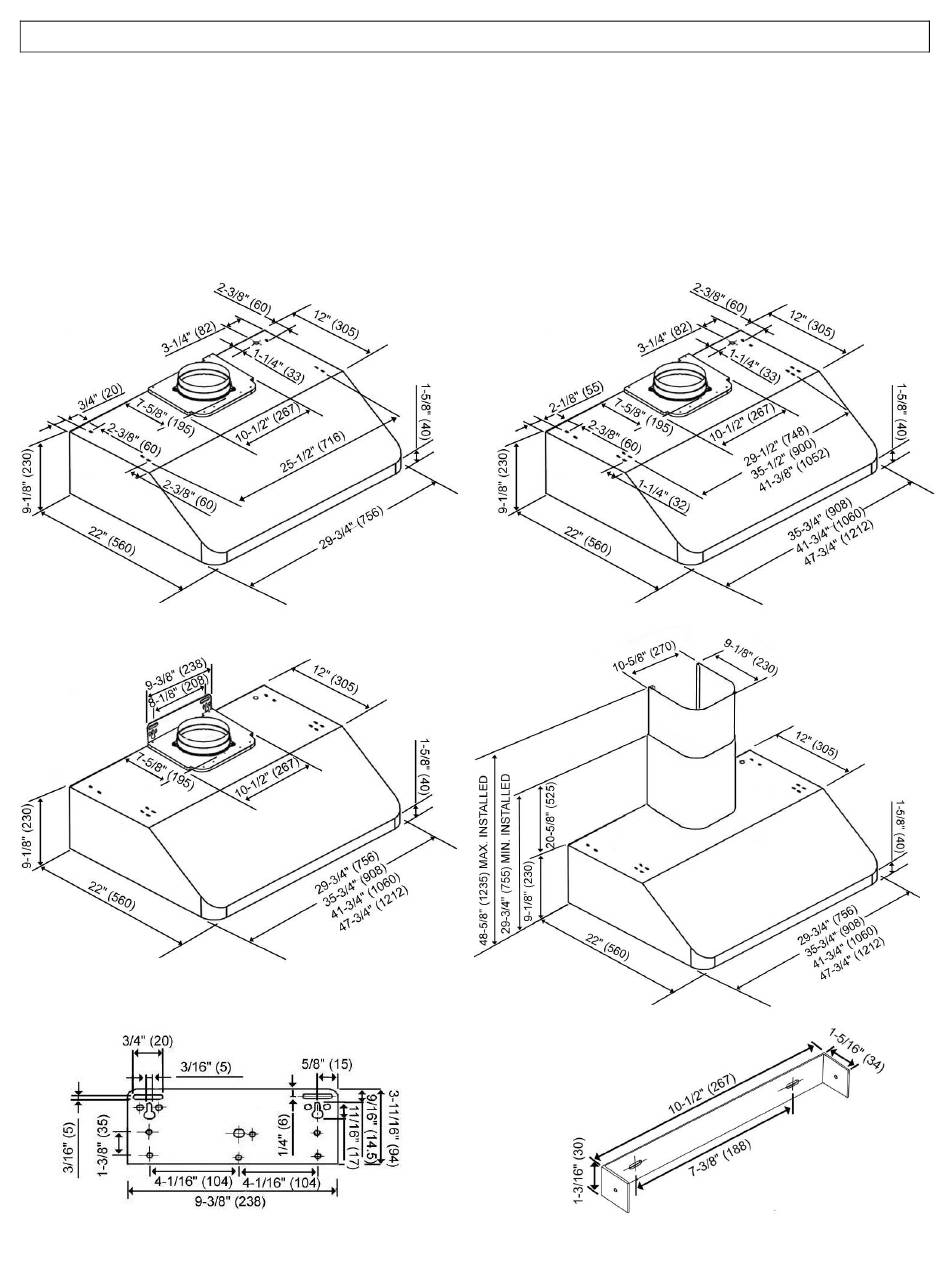

MEASUREMENTS & DIAGRAMS
 All measurements in ( ) are millimeters.
 All inch measurements are converted from millimeters. Inch
MODEL NO.: CH9130SQB
- FOR STAND ALONE (WITH OPTIONAL DUCT COVER) -
***Hood-Mounting Bracket
measurements are estimated.
- FOR UNDER THE CABINET -
MODEL NO.:
***Duct Cover-Mounting Bracket
17
CH9136SQB
CH9142SQB
CH9148SQB
