all joints secure and air tight as shown on
Figure 14.
To convert ductwork to 7" round, attached
7.
7" round adapter (provided) to the 6"
round plastic exhaust.
8. Slide the inner duct cover up 2 inches
before sliding the entire duct cover onto
the hood. Refer to Figure 15.
9. Adjust the height of the inner duct cover to
the duct cover-mounting bracket. Secure
the inner duct cover with two (4x8 mm)
screws (provided).

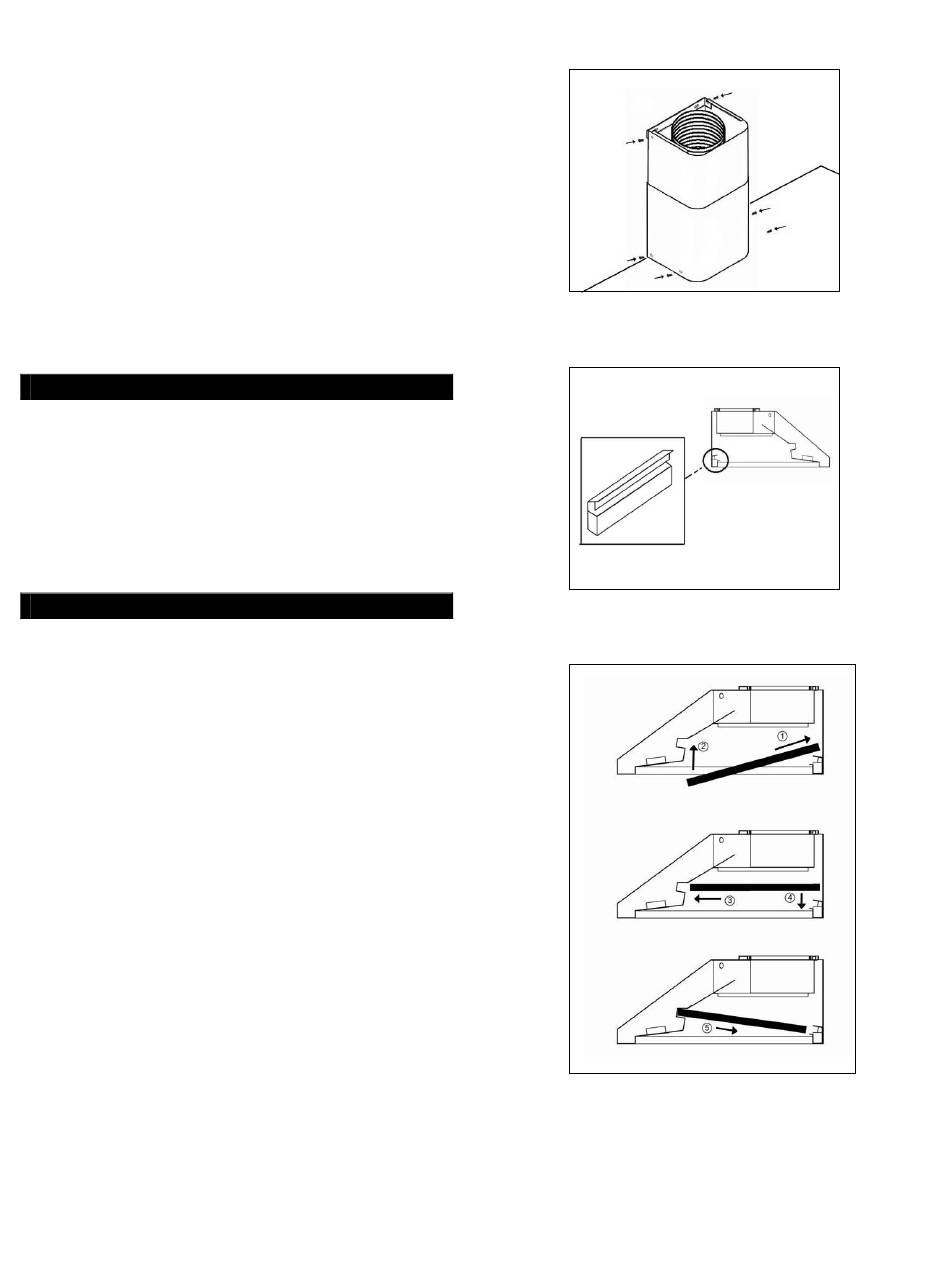

10. Fasten outer duct cover to plastic plate on
the hood with four (4x8 mm) screws
(provided) as shown in Figure 16.
Accessories
11. Attach oil tunnel. Refer to Figure 17.
12. Refer to Figure 18.
filter into the hood.  Push the baffle filter
 Slide forward.
upward.
downward.  Fit into place.
13. For bottom casing, repeat above steps.
Refer to page 16.
Final Assembly
14. Turn power ON in control panel. Check
all lights and fan operation.
15. Make sure to leave this manual for the
homeowner.
 Slide the baffle
 Pull
Figure 16
Figure 17
Figure 18
