Stand Alone Installation; Hood Preparation Before Installation - KOBE CH9130SQB Manuel D'installation Et Mode D'emploi

***This installation
purchase of a duct
RA1020DC).
Preparation before Installation
NOTE: TO AVOID DAMAGE TO YOUR
HOOD, PREVENT DEBRIS FROM
ENTERING THE VENT OPENING.


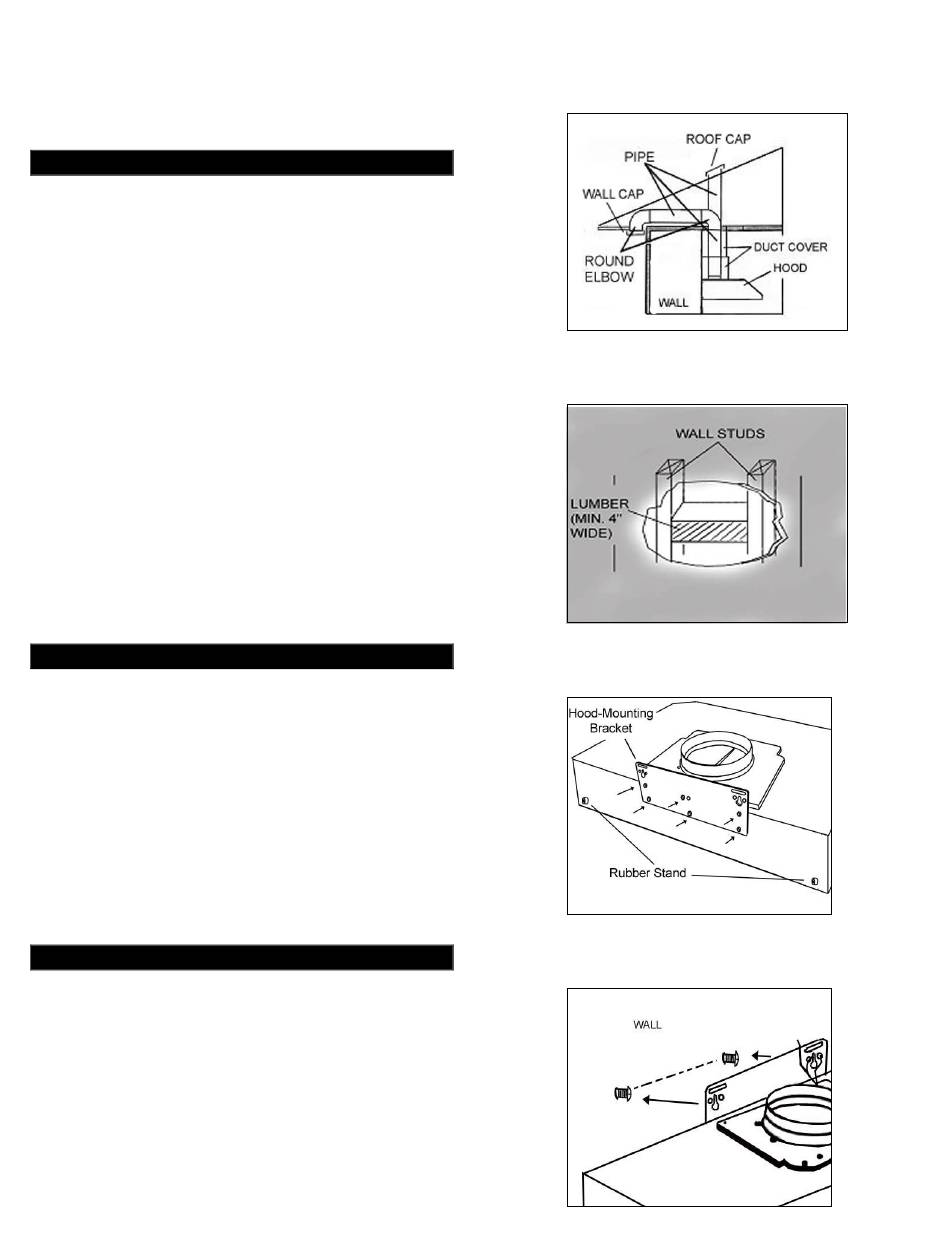

Decide the location of the venting pipe
from the hood to the outside. (Figure 1)

A straight, short venting run will allow
the hood to perform more efficiently.

Try to avoid as many transitions,
elbows, and long run as possible. This
may reduce the performance of the
hood.

Use duct tape to seal the joints between
pipe sections.

If necessary, prepare back wall frame
with cross framing lumber for secure
installation.

Using references on Table 2 and
measurements on page 15, decide the
level of the lumber. (Figure 2)

Hood Preparation before Installation


Temporarily wire the hood to test for
proper operation before installing.

Important:
the hood and the duct cover (if any).

If necessary, attach two rubber stands
(provided) with two (4 x 8 mm) screws
(provided) to the back of the hood.

Attach the hood-mounting bracket to the
back of the hood with six (3/16" x 3/8")
screws (provided) as shown In Figure
10.
Hood Installation
CAUTION: If required to move the cooking
range to install the hood, turn off the power
on an electric range at the main electrical
box. SHUT OFF THE GAS BEFORE MOVING
A GAS RANGE.
1. Using references
measurements on page 15-16, mark the
leveling point of the hood. Position two

STAND ALONE INSTALLATION

only applied with
cover (Model
Peel protective film off
on Table 2
the Figure 8
No.
Figure 9
Figure 10
Figure 11
and
10
