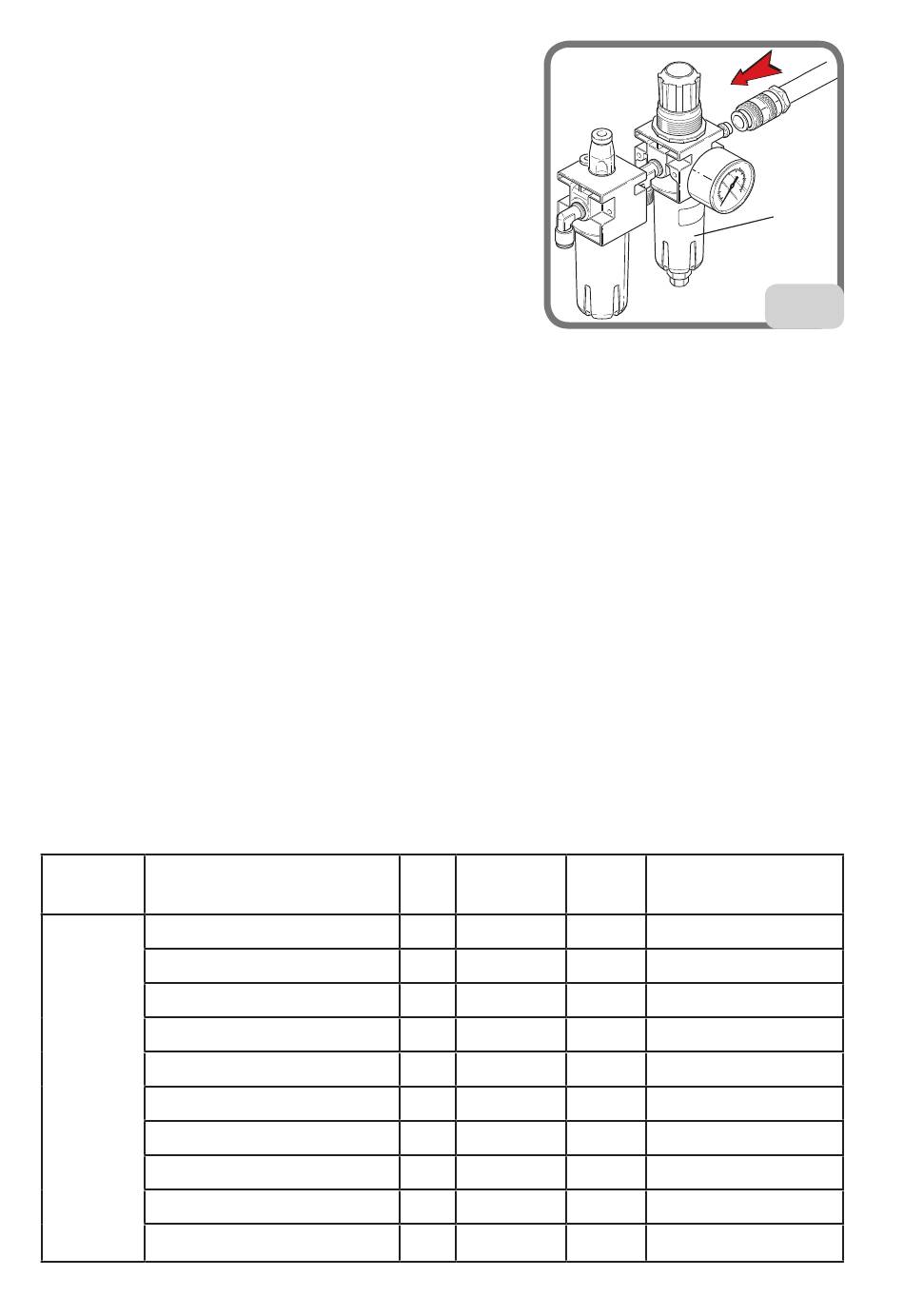

Check that the Lubricator unit B fig. 1b contains air
lubricating oil; top up if necessary. Use SAE20 oil.
The customer must provide an air cut-off valve upstre-
am of the air treatment and regulator device supplied
with the machine.
1.2.d TEChNICAL DATA
- Turntable clamping capacity
- internal clamping ......................................................................................... from 13" to 26"
- external clamping ........................................................................................ from 10" to 24"
- Maximum rim width ............................................................................................................ 14"
- Maximum tyre diameter ..................................................................................................... 47"
- Maximum tyre width ........................................................................................................... 13"
- Power supply voltage: ................................................................................................. see table
- Bead breaker aperture: ................................................................................................... 15"
- Bead breaking force ....................................................................15000 N (pressure 145 psi)
- Operating pressure .......................................................................................................145 psi
- Weight ............................................................................................................................. 256 kg
- Noise levels in operating conditions ..................................................................< 70 dB (A)
The noise levels indicated correspond to emission levels and do not necessarily represent safe
operating levels. Although there is a relationship between emission levels and exposure levels,
this cannot be used reliably to establish whether or not further precautions are necessary. The
factors which determine the level of exposure to which the operator is subject to include the
duration of the exposure, the characteristics of the workplace, other sources of noise, etc. The
permitted exposure levels may also vary according to the country. However, this information
will enable machine users to make a more accurate assessment of hazards and risks.
Model
400Volt/3ph 50Hz
200/230Volt/3ph 60Hz
200/230Volt/3ph 50Hz
200/230Volt/1ph 50Hz
AS 914 TI
200/230Volt/1ph 60Hz
115Volt/1ph 50/60Hz
115Volt/1ph 60Hz
200/230Volt/1ph 50/60Hz DV
115Volt/1ph 50/60Hz DV
AIR MOTOR
16
Motor rating
Rotation Torque
kW
speed rpm
0.75 8.5
0.75 8.5
0.75 8.5
0.75 8.5
0.75 8.5
0.55 11
0.75 8.5
0.75 6-15
0.75 6-15
/ 6.5
Weight of electric/
Nm electronic part kg
1200 11.5
1200 11.5
1200 11.5
800 11.5
800 11.5
950 10
800 11.5
1200 10.2
1200 10.2
800 /
AS 914 TI User Manual
B
1b
