Page 1

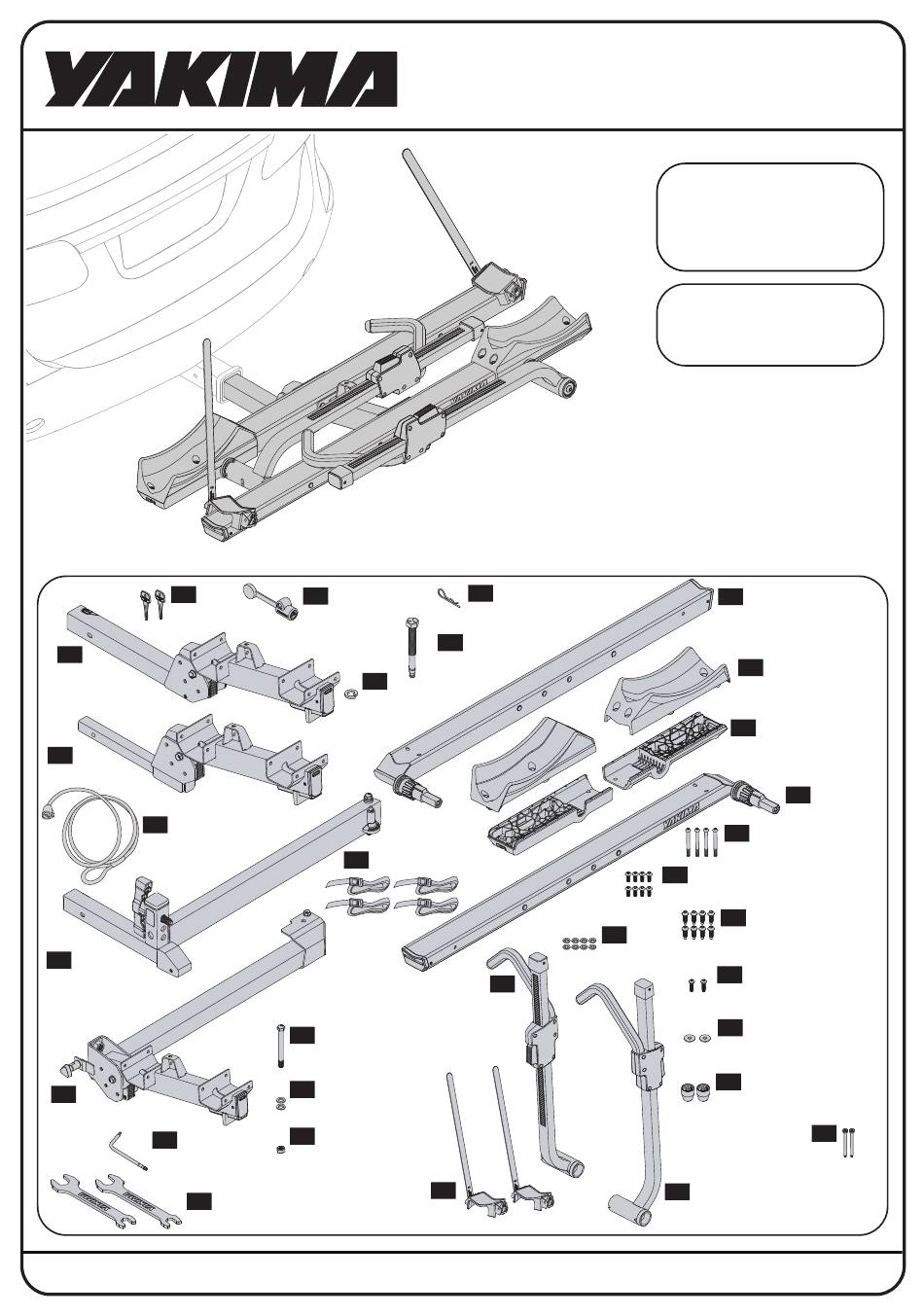

StepUp ® #8002772 is approved for class II (1.25”) receivers. #8002770 and 8002771 are approved for class III and IV (2”) receivers. NOTE: This instruction depicts the 2” hitch version of this product. CONTENTS safety pin (1X) key (2X) hitch lock (1X) inner tray (1X) hitch bolt (1X) 2”...
Page 2
LOAD CAPACITY StepUp Capacity Chart Rating Per Bike Road 65 lbs /29.5 kg Off Road 43 lbs/19.5 kg 2” Hitch - Class III & IV 43 lbs/19.5 kg (8002770 & 8002771) BackSwing* 43 lbs/19.5 kg StraightShot/FlipFlop/2.5” Reducer 43 lbs/19.5 kg Road 65 lbs /29.5 kg 1.25”...
Page 3
BASE INSTALLATION - – 2” SWING (#8002770) INSERT THE BASE INTO THE HITCH RECEIVER. Insert the tongue and align the holes as shown. The holes in the base must align to the holes in the hitch receiver. INSERT AND SECURE HITCH BOLT - 1 1⁄4” HITCH AND SWINGBASE 100 Nm 73.8 lb-ft A.
Page 4
ASSEMBLE THE TRAYS. Attach the front wheel cup to each tray with the four M8 x 20 mm screws and two M8 x 70 mm screws wheel cup bolts.Tighten completely to 5 Nm (3.7 lb-ft). 5 Nm 3.7 lb-ft INSTALL THE REAR WHEEL STRAPS. 5 Nm 3.7 lb-ft Install the wheel tray strap assembly and...
Page 5
NOTE: The 2” version of StepUp is shown in this and subsequent steps. Assembly is identical for the 1-1/4” and Swing versions, except where noted. • Place the inner tray—with the large Yakima logo on the underside—into the spine bracket, oriented with the front wheel cup on the left side of the vehicle.
Page 6
INSTALL THE OUTER TRAY. • Place the outer tray— identified by the small side logo—into the spine bracket with the front wheel cup positioned on the right side of the vehicle. • Attach the tray to the tray bracket using four M8 x 21 mm screws and four M8 washers, as shown.
Page 7
INSERT AND SECURE HITCH PIN TOOL - 2” HITCH A. Insert the hitch pin tool through your hitch and the tongue, as shown. B. Install the pin onto the end of the hitchbolt. C. Attach the HitchLock. D. Use a key to lock it. LOADING PREPARE FOR LOADING.
Page 8
• Load your heaviest bike first on the inner tray. LOAD YOUR BIKE. • Always load the first bike on the inner tray (closest to the vehicle). CAUTION: Do not load bikes with fenders. Fenders need to be removed for proper and safe loading.
Page 9
SECURE BIKE TO SPINE. For bikes with longer wheelbases, you must secure the wheels to the spine of the rack. A. Wrap the free end of the strap around the wheel tray on one side of the spine. B. Pass the free end through the strap loop to secure it.
Page 10
UNLOAD YOUR BIKES. • Unlock and stow the bike locking cable securely. • Press the release tab on the wheel strap buckle and release the strap. • While supporting the bike, press the button to raise the front wheel hook, then lower the hook arm.
Page 11
SWING GATE OPERATION - STEPUP SWING A. Completely loosen the swing knob. B. Pull the release pin. C. Swing open the carrier. D. To close, press down the pin inside the pivot point to release the swing. E. Fully tighten the swing knob before driving. LOWER CARRIER FORVEHICLE ACCESS.
Page 12
OPTIONAL: ADJUSTING THE POSITION OF THE TRAYS. If needed to reduce bike-to- bike interference or better center the wheelbase, one or both trays can be repositioned. • Use the hitch pin tool to remove the installed bolts and the plug from the alternate bolt location. •...
Page 13
REMOVE THE RACK FROM YOUR VEHICLE - 1 1⁄4” AND SWING VERSION A. Unlock and remove your bikes from the rack. B. Engage the release lever, and tilt the rack up to the vertical position. C. Unlock and remove the hitch lock. D.
Page 14
In order to replace any lost or defective keys, note the lock and key numbers below and register them at www.yakima.com. Record Your Key Number: (located on the set of locking keys)
Page 15
1-1/4 po et Swing, sauf indication contraire. broche de sûreté (1) plateau intérieur (1) rondelle de blocage (1) • Placez le plateau intérieur, avec le grand logo Yakima sur la face boulon d’attelage (1) dessus de coupelle de dessous de coupelle de roue (2) roue (2) inférieure, dans le support de la structure, orienté...
Page 16
DEUX FAÇONS DE PLIER LE PORTE- VÉLOS. CHARGEMENT PRÉPAREZ-VOUS POUR LE CHARGEMENT. Tirez le levier de déverrouillage situé sous la structure ou utilisez le levier de déverrouillage du pied situé près de la languette. Appuyez sur le bouton pour faire glisser le crochet de haut en bas sur le Quelle que soit la position, assurez-vous que le porte-vélos se bras.
Page 17
L’utilisateur doit donc respecter les présentes instructions à la lettre et n’employer que les pièces d’origine fournies. numéro de la serrure et des clés ci-dessous et les enregistrer à www.yakima. com. Enregistrer votre numéro de clé : (Situé...
Page 18
1-1/4” y giratoria, salvo donde se indique lo contrario. pasador de seguridad (1) bandeja interna (1) arandela de seguridad (1) • Coloque la bandeja interna (con el logotipo grande de Yakima en la perno de enganche (1) copa superior para copa inferior para rueda (2)
Page 19
CARGUE SU BICICLETA. Para cualquier posición, asegúrese de que el portabicicletas quede Si el indicador es visible, el portabicicletas no está bloqueado en su • Cargue primero la bicicleta más pesada en la bandeja interna. posición. • Cargue siempre la primera bicicleta en la bandeja interna •...
Page 20
Para reemplazar una llave perdida o defectuosa, anote más abajo los números de la cerradura y de la llave y regístrelos en www.yakima.com. Anote el número de su llave: (grabado en las llaves de bloqueo)
Page 21
YAKIMA PRODUCTS, INC. 4101 KRUSE WAY LAKE OSWEGO, OR 97035-2541 888.925.4621 yakima.com/support YAKIMA AUSTRALIA PTY LTD 17 Hinkler Court Brendale, QLD 4500 Australia 1800 143 548 www.yakima.com.au www.yakima.co.nz www.yakima.eu Instruction #21000099C-21/21...
