Connections

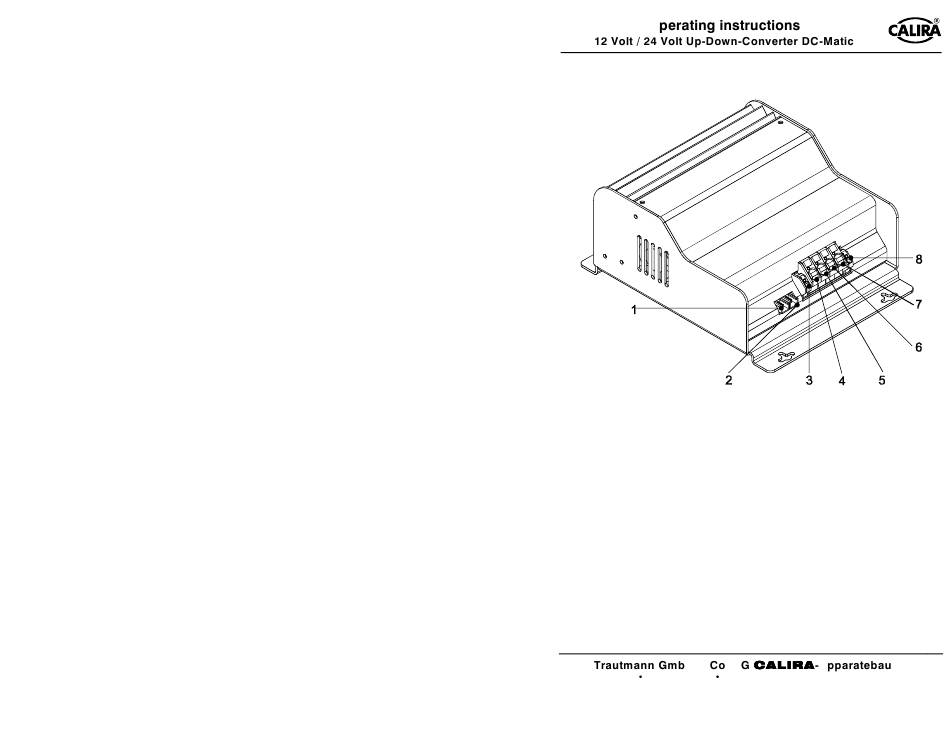

Fig. 1: Connections
1 Connection for temperature sensor 5
2 Connection for status indicator
3 Input D+ generator
4 + 24 volt connection battery I
Temperature sensor (optional)
If the converter is operated together with a temperature sensor (item 1) for the
supply battery, the converter controls the charging voltage automatically
depending on the battery temperature. This ensures a particularly effective and
gentle charging process for the battery. When not using a temperature sensor,
the converter controls the charging process as if the battery temperature was
20° C.
! " #
Lerchenfeldstr. 9 87600 Kaufbeuren Tel.: +49(0)8341 / 9764-0 Fax: +49(0)8341 / 67806
- 24 volt connection battery I
6 - 12 volt connection battery II
7 + 12 volt connection battery II
8 Input B+ battery II
$
