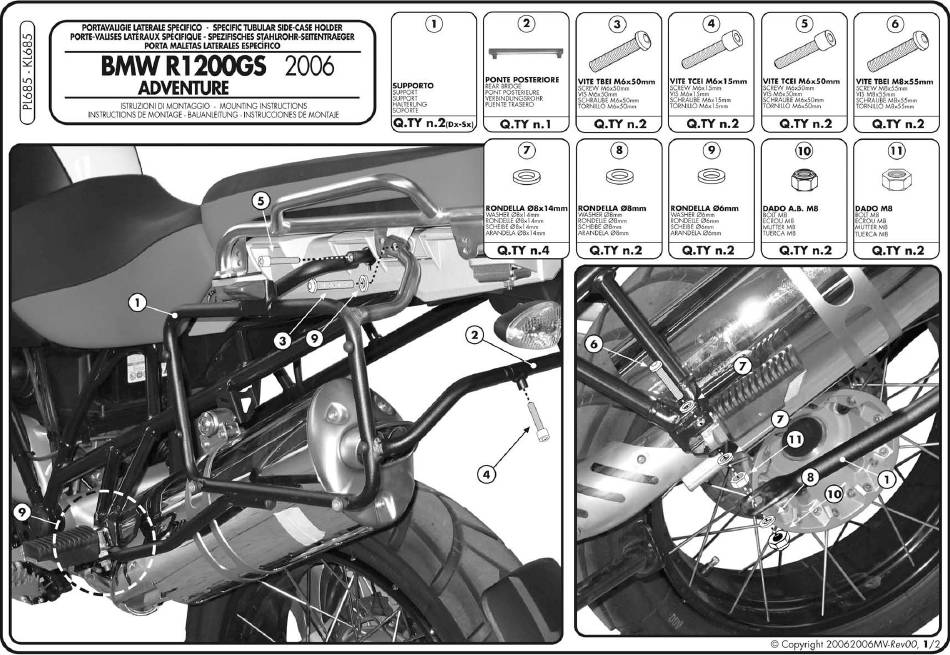

Kappa PL685 Instructions De Montage

PORTAVAUGIE L *TERALE SPECIFICO • SPECIFIC T UBULAR SIDE-CASE H OLDER
VALISES PORTE- LATERAUX SPÉCIFIQUE - SPEZIFISCHES
PORTA MALETAS LATERALES ESPECiFlCO
BMW R1200GS
ADVENTURE
ISTRUZIONI Dl MONTAGGIO • MOUNTING
INSTRUCTIONS DE MONTAGE • BAUANLEITUNG • INSTRUCCIONES DE MONTNE
1
STAHLROHR-SEITENTRAEGER
2006
SUPPORTO
SUPPORT
SUPPORT
HALTERUNG
INSTRUCTIONS
SOPORTE
Q.TY n.2(Dx-sx)
5
2
3
PONTE POSTERIORE
VITE TBEI M6x50mm
REAR BRIDGE
SCREW M6xSOmrn
PONT POSIERIEURE
M6xSOmm
VERBINDUNGSROHR
SCHRAUBE M6x50mm
PUENTE TRASERO
TORNILLO M6x50mm
Q.TY n. 1 Q.TY n.2
RONDELLA Ø8x14mm RONDELLA ø8mm
WASHER Ø8mrn
WASHER Ø8x 14rnm
RONDE11ä RONDEIIE Ø8mm
SCHEIBE SCHEIBE Ø8mm
ARANDEIA I ARANDELA Ø8mm
Q.TY n.4 Q.TY n.2
4 5
VITE TCEI M6x15mm VITE TCEI M6x50mm
SCREW 15mm SCREW M6x50mm
VIS M6x 15mm VIS M6x50mm
SCHRAUBE I smm SCHRAU3E M6x50mm
TORNILLO M6x I smrn TORNILLO M6x50mrn
Q.TY n.2 Q.TY n.2
10
RONDELLA ø6mm DADO A.B. M8
WASHER Ø6mm
BOLT MB
RONDELLE Ø6mm
ECROU ME)
SCHEIBE Ø6mm MUTTER MS
ARANDELA Ø6mm TUERCA MB
Q.TY n.2 Q.TY n.2
O Copyright 20062006MV-RevOOt I / 2
6
VITE TBEI M8x55mm
SCREW M8x5Smm
VIS M8x55mm
SCHRAU3E M8xSSmm
TORNILLO M8x55mm
Q.TY n.2
11
DADO M8
BOLT M8
ECROU MS
MUTTER M8
TUERCA M8
Q.TY n.2
