MasterCool COMMANDER1100 Manuel D'opération page 8

container for that purpose. The fluid is then filtered, recycled and returned to the tank installed in the machine.
The machine also permits running certain operational and leak tests on the A/C system.
THE MACHINE

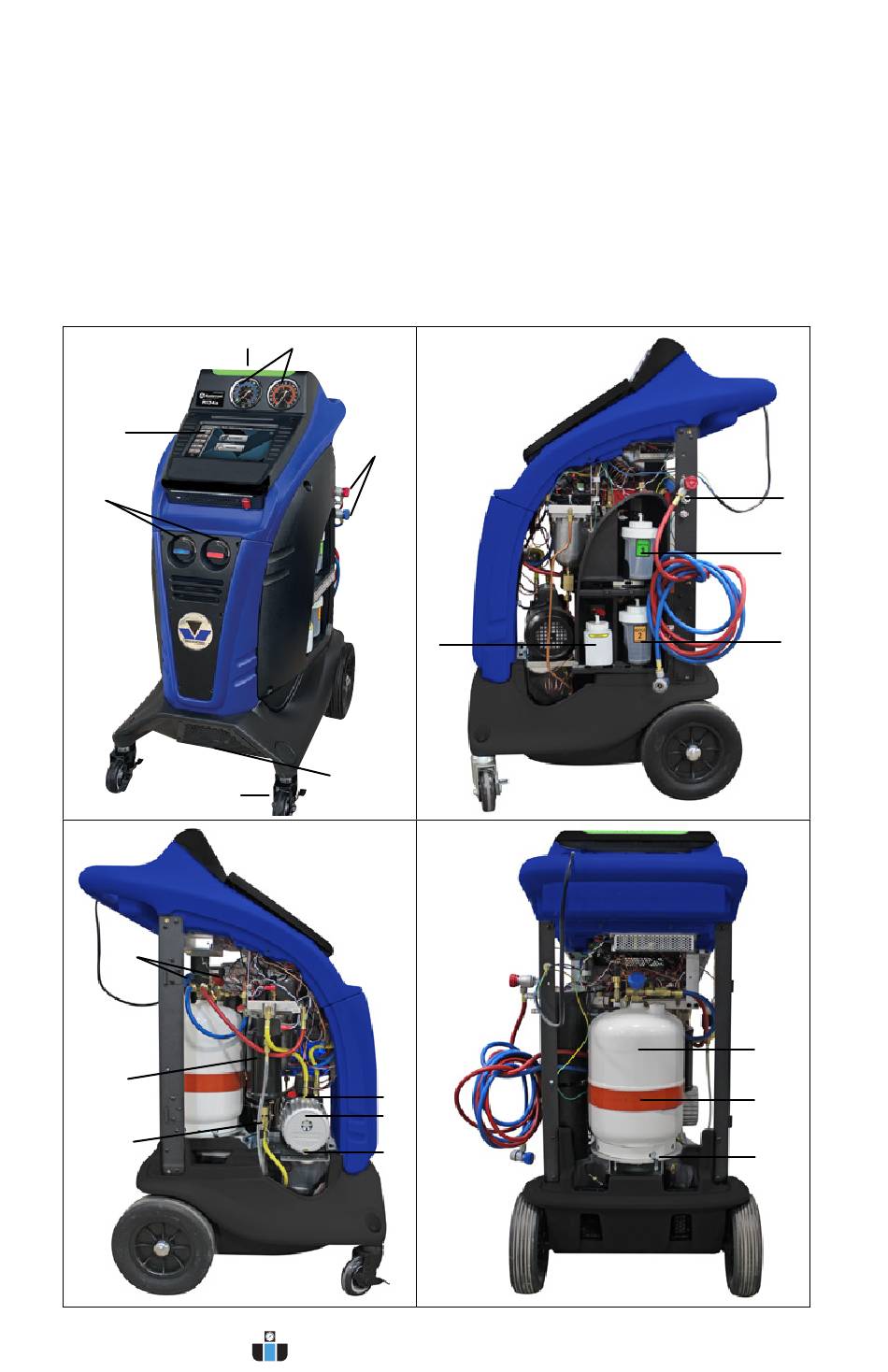

BASIC COMPONENTS (Refer to Figures 2, 3, 4 and 5.)
A. Visual Indicator Light
B. Low and High Side
Analog Gauges
C. Coupler Storage
(Hose Flush Manifold
(COMMANDER3100 (-E))
D. Tank Filling Adapter
FIG. 2
J
I
FIG. 4
K
S
R
8
8.610.7664
E. Fresh Oil Bottles
(COMMANDER2100 / 3100-E only)
F. Waste Oil Bottle
G. Cabinet Fan
H. Wheel Locks
I. Low and High Side Machine Valves
B
A
C
G
H
P
O
Q
www.mastercool.com
www.calcert.com
15
10 20
5 25
0 30
J. Computer Command
Center
K. Low and High Side DOT
Tank Valves
L. 30 lb DOT Tank
M. Heater Blanket
N. Load Cell Scale
FIG. 3
F
FIG. 5
O. Vacuum Pump
P. Vacuum Pump Vent/
Oil Fill
Q. Vacuum Pump Oil
Drain
R. Filter Ball Valve
S. Filter
D
E
E
L
M
N
