Dorman 599-982 Manuel D'instructions

599-982
TOTALLY INTEGRATED
POWER MODULE (TIPM)
BEFORE YOU BEGIN:
• Always wear proper safety
equipment when performing repairs.
• Ensure at your point of purchase
that this part fits your exact
vehicle configuration.
• Reference the appropriate service
manual for your vehicle. If you do
not have a service manual, and do
not have the training or experience
to perform the necessary
procedures correctly, seek the
services of a qualified technician.
NEED HELP?
Please call our Technical Support
team for assistance from our team of
certified automotive experts.
1-866-933-2911
© 2025 No reproduction in whole or in part without prior written approval.
599-982_Tech-Note_v2
TURN SIGNAL AND FOG LIGHT WIRING
Due to an OE TIPM hardware revision, the front lighting circuits may require alteration of the
factory wiring to ensure normal functionality when installing this replacement module.

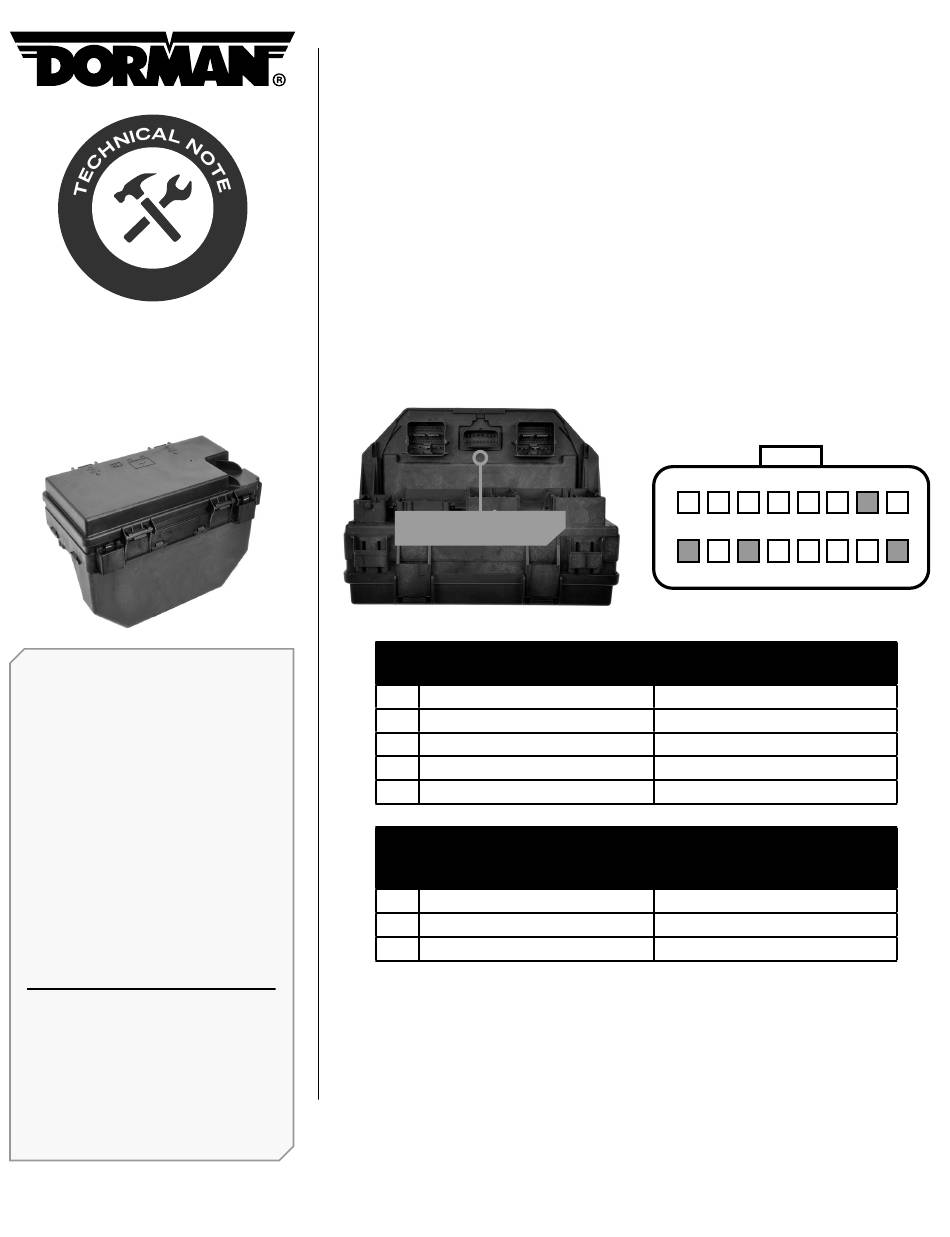

While the old TIPM is removed, locate the C4 harness connector as shown in the image below.
Find the correct table for your vehicle below and ensure the locations and colors match
as specified.
If your wiring matches the table, the front lighting circuits should function normally. Proceed
with the installation of the TIPM.
If your wiring does not match the table for your vehicle:
• Use a small screwdriver to remove the terminal lock from the front of the connector,
then disconnect the harness.
• Use a suitable tool to release the terminals from the harness-side connector and switch
them as needed to match the table below for your application.
C4 harness connector
598-731 (2011 Dodge Nitro, Jeep Liberty)
Pin Wire color
7 White/orange
9 White/yellow
11 White/pink or white/tan
16 White/gray or white/light green
598-710, 599-980, 599-981, 599-982, 599-983, 599-987
(2011-2013 Dodge Durango, Jeep Grand Cherokee, Dodge Grand Caravan,
Chrylser Town & Country, Volkswagen Routan, 2011 Jeep Wrangler)
Pin Wire color
7 White/orange
11 White/tan
Dorman Products, Inc. Corporate Office and Customer Service: 1-800-523-2492.
Disclaimer: It is impossible in these instructions to account for all possible circumstances or situations that you may experience when at-
tempting to install this product. Please consult with a qualified auto technician before attempting to perform any work you are not qualified to
do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor
Vehicle Safety Standards by the National Highway Traffic Safety Administration). Be sure that your work is performed in accordance with such
standards and that you do not disable any motor vehicle safety feature.
Rear of connector, harness side
1
9
598-709 (2013 Jeep Wrangler)
Right front fog lamp (if equipped)
Left front fog lamp (if equipped)
Right front turn signal
Left front turn signal
Right front fog lamp (if equipped)
Right front turn signal
PAGE 1 OF 3
2 3 4 5 6 7
10 11 12 13 14 15 16
Function
Function
8
