Powermax65/85 Power Switch rePlacement
Replace the Mylar barrier

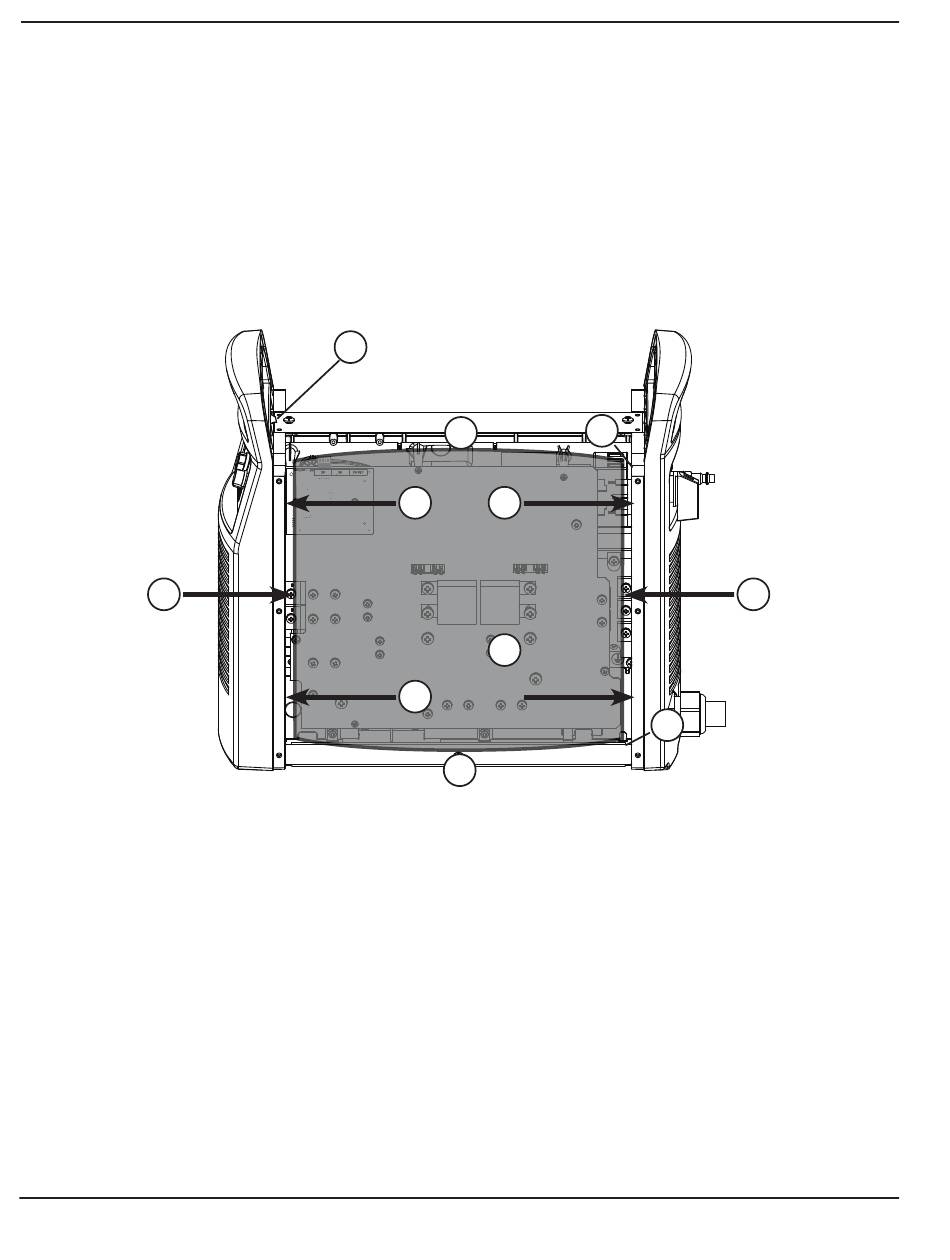

1. Carefully push in the sides (1) of the Mylar barrier so that the barrier bends out slightly at the top and bottom (2).
2. Slide the sides of the Mylar barrier behind the power supply frame (3). Be careful not to damage wires or
accidentally disconnect wires from the connectors.
3. Gently bend the top of the barrier at the perforation so that the top bends over the top of the power supply.
4. Slide the barrier down so that the bottom edge fits inside the power supply frame (4).
1
10
6
2
3 3
3
3
2
4
1
5
