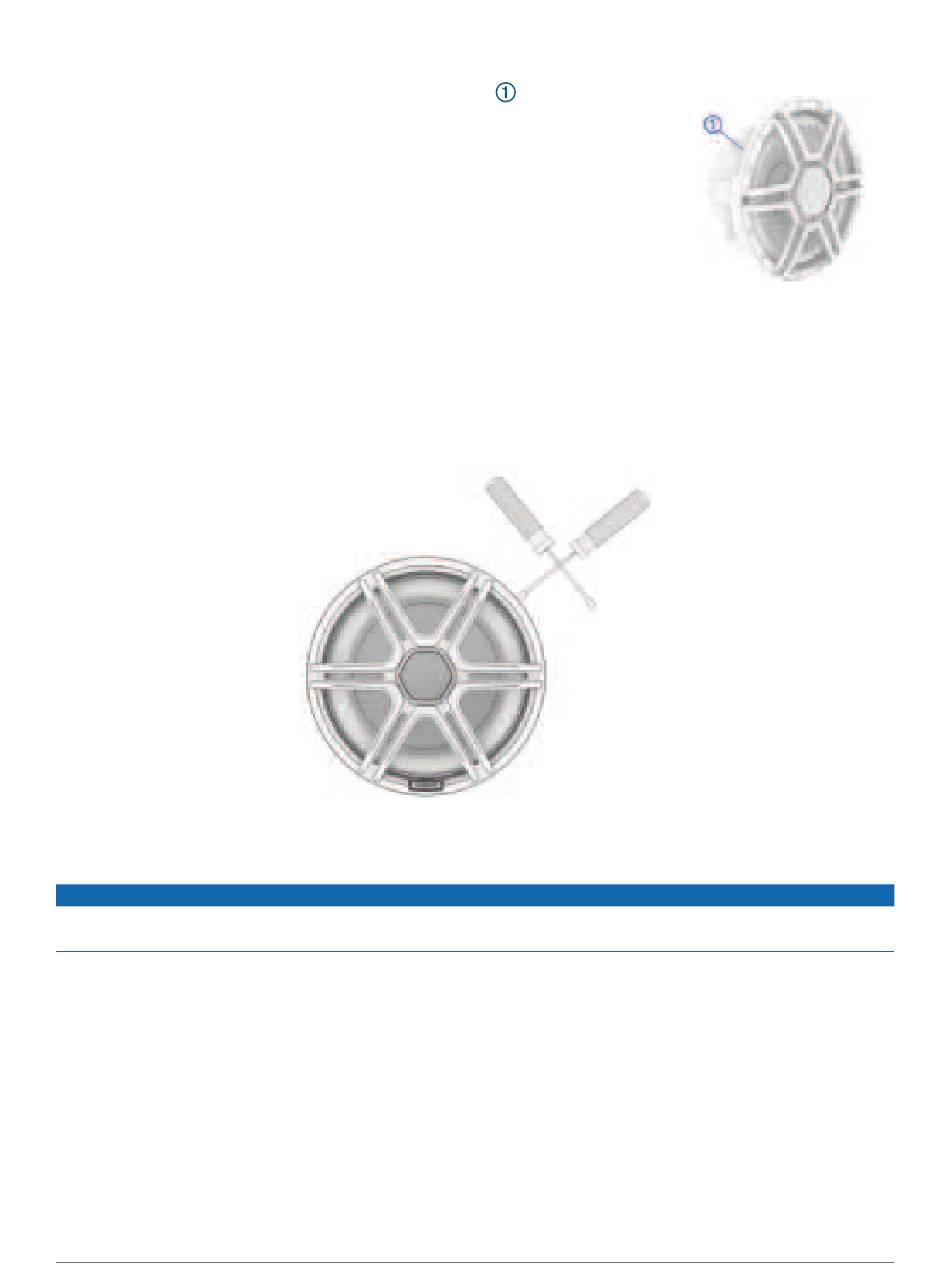

Attaching the Grille to the Subwoofer
1 Locate the retention tabs on the edge of the subwoofer
NOTE: When the subwoofer is installed with the connectors on the back at the
bottom (with the Fusion logo on the front in the 6 o'clock position), the retention
tabs are located at the 2 o'clock, 6 o'clock, and 10 o'clock positions on the edge
of the subwoofer.
2 Aligning the notches on the inside of the grille with the retention tabs on the
subwoofer, place the grille on the rim of the subwoofer.
3 Press on the grille to snap it in place.
Removing the Grille Using Prying Tools
If the grille is too difficult to remove by hand, you can use prying tools, such as a pair of flathead screwdrivers,
to remove it.
1 Locate the retention tabs by pressing the rim of the grille.
The grille flexes next to the tabs but not on top of them.
2 Insert one prying tool between the grille and the speaker at the edge of one retention tab, and use another
tool as an axis to pry against.
NOTE: For the best results, avoid placing the prying tool in the middle of a retention tab. The grille is easier to
remove when starting at either edge of a retention tab.
3 Pry the grille retention tab out of the slot.
Use care when removing the grille using prying tools to avoid damaging the grille, the speaker, or the mounting
surface.
4 Repeat these steps on other retention tabs until the grille comes away from the speaker.
Speaker Wiring
You can connect speaker wire to the subwoofer using the included wiring harness or the integrated spade
connectors. For the best results, use the included wiring harness to connect speaker wire to your subwoofer.
When connecting the subwoofer to your amplifier, observe these considerations.
• Speaker wire is not included. You should use 12 AWG (3 through 4 mm
the wiring harness to the amplifier.
• You should use a water-tight connection method when making all connections.
4
.
NOTICE
2
) or larger speaker wire to connect
