Miele PWM 916 RH Schéma D'installation page 37

Publicité

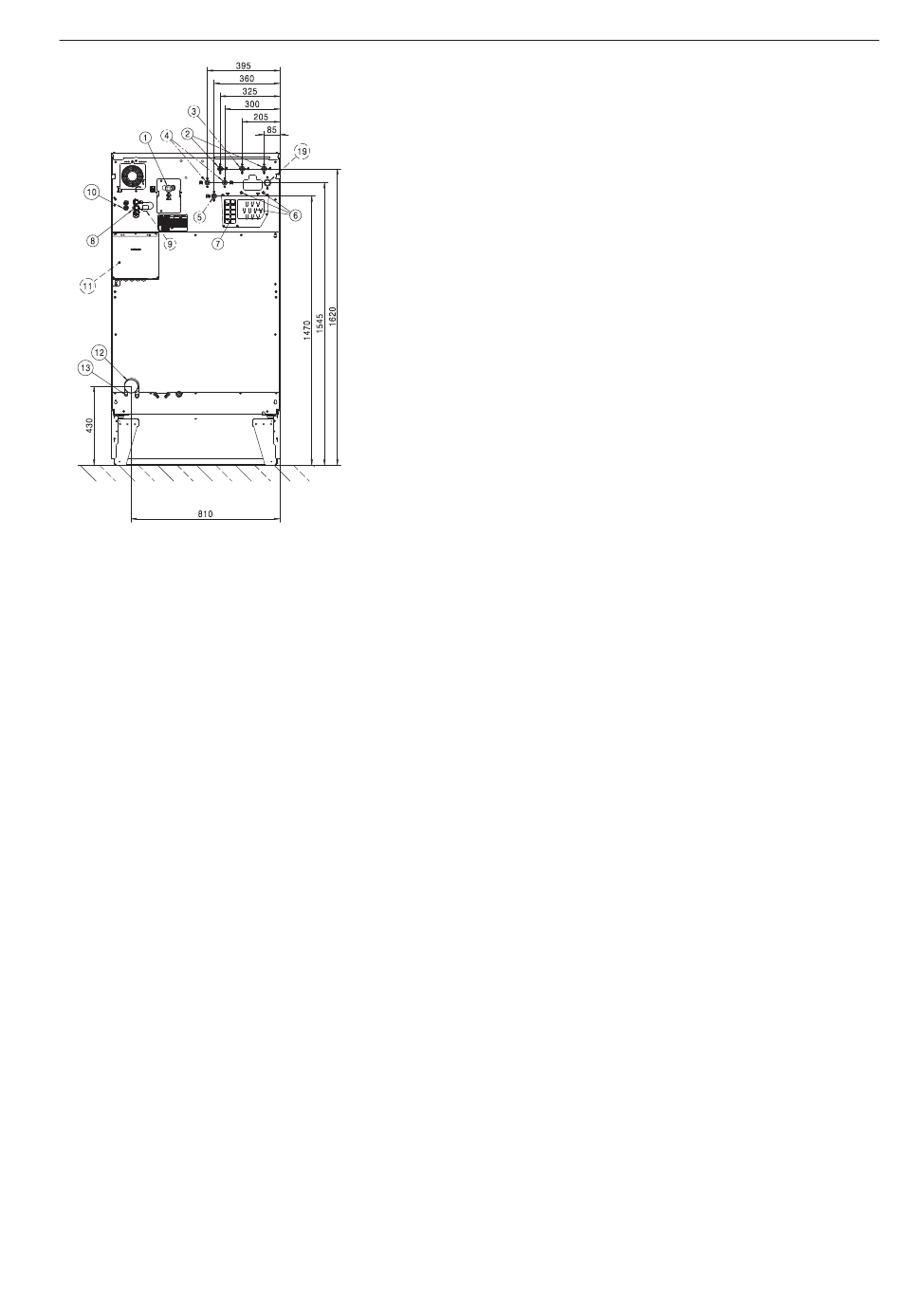

Dimensions in mm
Electrical connection
a
Cold water connection
b
Hot water connection for RH variants
c
Cold water connection for hard water (op-
d
tional)
Cold water connection for liquid dispens-
e
ing
Dispensing pump connections
f
Overflow and ventilation
g
Connector Box connection
h
Connector Kit connection (optional)
i
LAN connection
j
Connector Box (optional)
k
Drain pipe
l
Connection for equipotential bonding
m
Water recovery connection (optional)
s
en - Installation
