INSTALLATION
INSTALLING THE OUTER DOOR PANEL (DEPENDING
ON MODEL)
Before starting the installation of the custom door panel,
make sure that the measurements are within the ranges
specified in the CUSTOM DOOR PANEL (FOR PANEL-
READY MODELS) section of this manual.
1) The installation plan is in the plastic bag secured to the
inside of the dishwasher door. Position the installation
plan on the custom door panel aligning it with the top
and drill holes at the points indicated on the installation
plan.
2) Fasten the hook on the custom door panel and insert it
into the slot on the outer door of the dishwasher (Fig. 16
,Fig. 17 ).
3) After positioning the panel in place, fix the custom door
to the outer door of the dishwasher with the two screws
provided in the two lower installation holes Fig. 18 .
4) After tightening the screws, insert two rubber plugs into
the holes to prevent fingers from getting stuck.

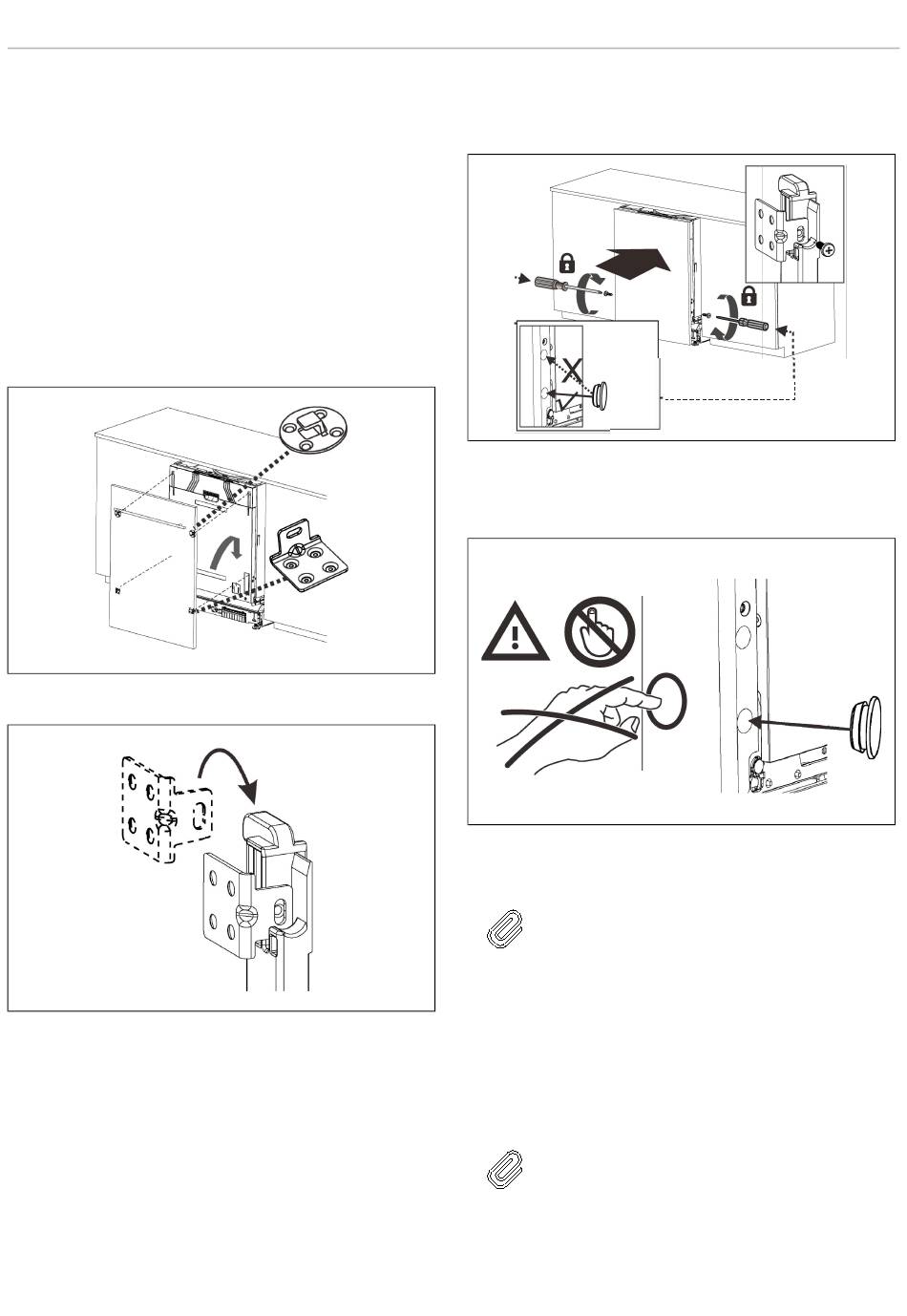

Fig. 16
NOTE
In any cases, please DO NOT insert the
fingers into the side holes on dishwasher
door, since that may cause serious hazard.
Please DO NOT leave the installation hole
open after installation. Plug the holes by
Fig. 17
the
installation to avoid any potential damage
to children
NOTE
Before mounting the wooden door on the
dishwasher, mount the handle on the
wooden door as in Fig. 20 .
rubber
plug
immediately
Fig. 18
Fig. 19
after
21
