INSTALLATION

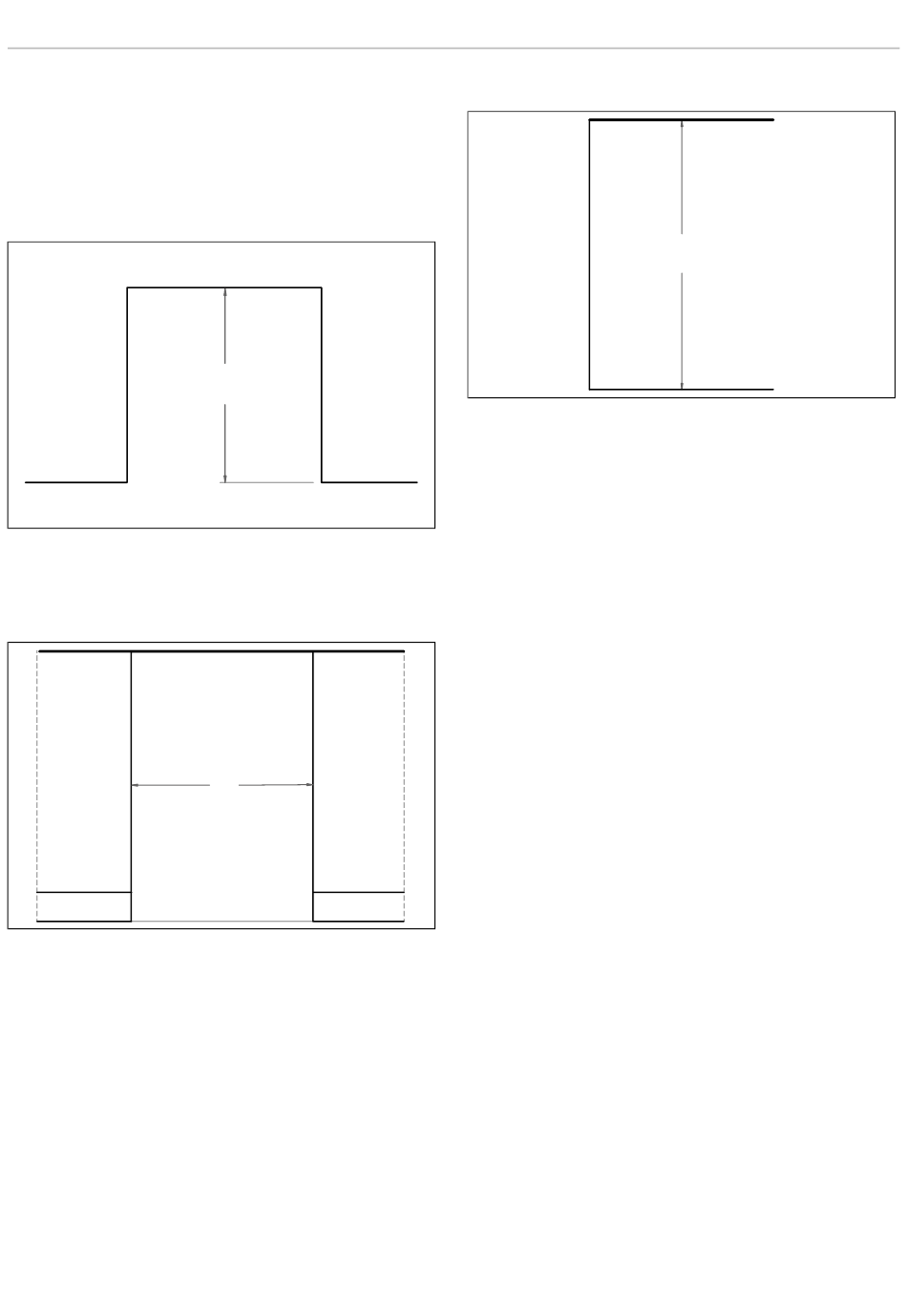

CUTOUT DIMENSIONS
Cabinet depth shown includes kitchen cabinet front panel.
For a flush installation, a minimum inset depth of 580 mm
(22 13/16") is required with a custom door panel thickness
of 20 mm (3/4").
TOP VIEW
•
A 580 mm (22 13/16")
FRONT VIEW
•
B 600 mm (23 5/8")
A
B
SIDE VIEW
•
C 820 mm - 870 mm (32 1/4" - 34 1/4")
Fig. 2
Fig. 3
C
Fig. 4
11
