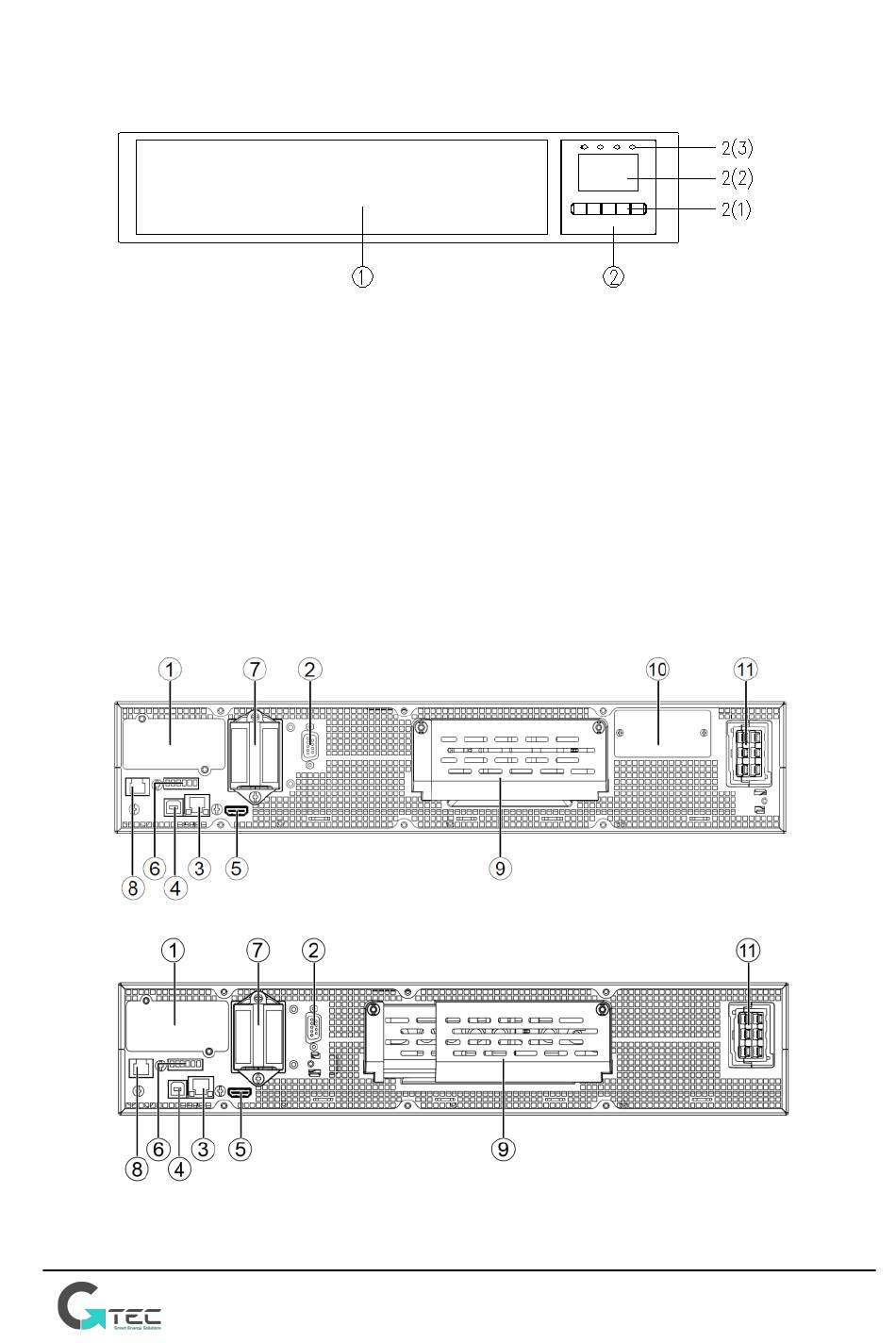

2.2.2 Modèle RT :
•
Module UPS
Vue avant
1. Zone de ventilation
2. Module LCD, comprenant : 2(1)---Bouton,2(2)---Écran LCD,2(3)---Indicateur LED
Vue arrière
1. FENTE INTELLIGENTE optionnelle
2. Port RS232
3. Port Ethernet (RJ45, pour fonction IoT)
4. Port USB
5. HDMI pour Sans fil opt. (pour fonction IoT)
6. EPO& DRY entrée/sortie
7. FENTE PARALLÈLE optionnelle
8. RJ45 (pour détection EBM/RT MBP)
9. Bornier Entrée/Sortie en CA
10. Couvercle en métal (ne pas ouvrir)
11. Connecteur de batterie externe
Onduleur (1-1)
Onduleur (3-1)
