ZEPHYRONLINE.COM
Installation Clearance Requirements

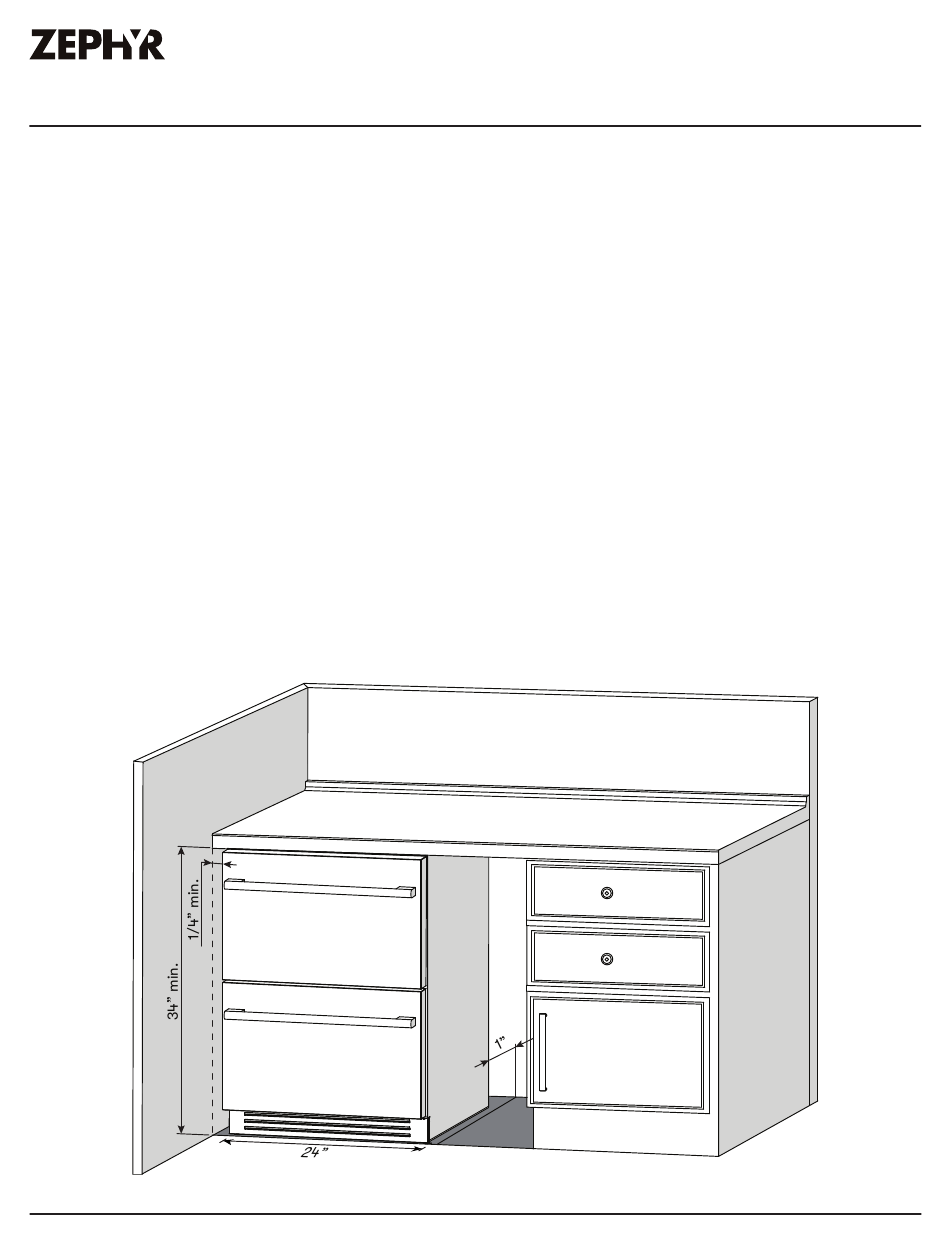

When installing the refrigerator freezer drawers under a counter, follow the recommended spacing
dimensions shown.
►
For proper clearance of the electrical plug, allow at least 1" of clearance at the back as shown in
the diagram.
►
An installation next to a wall will require a minimum 1/4" clearance.
►
The cabinet should allow at least 24" for the width and 34" for the height to accommodate the
refrigerator freezer drawers.
►
The power cable is located on the back right of the unit and has a length of 78-3/4" to
accommodate multiple outlet locations.
►
Once you are ready to install the unit, you must adjust the feet to level the refrigerator freezer
drawers. An improperly leveled drawer may not close properly.
►
This refrigerator can be fully built-in to cabinetry and does not require any additional clearances
besides what is referenced below.
►
The installation should allow the unit to be pulled forward for servicing, if necessary.
Refrigerator Freezer Drawers Use, Care, and Installation Guide
Installation Instructions
17
