Frigelux RDP216BE Manuel D'utilisation page 38

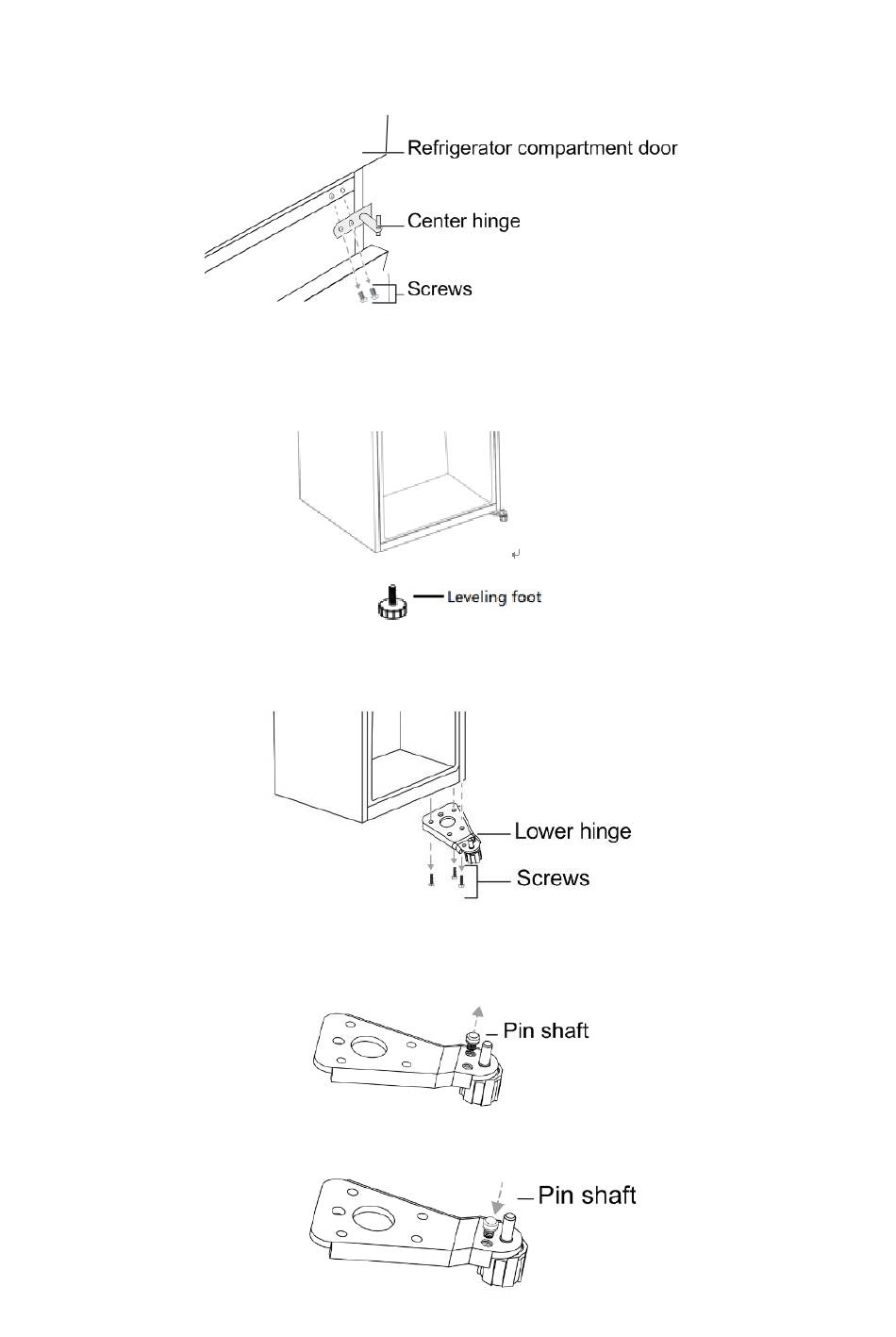

Remove the freezer compartment door from the cabinet.
3)
4) Remove the two screws that secure the center hinge.
5) Remove the freezer compartment door.
6) Remove the leveling foot on the left side of the cabinet, and place it aside for later
installation.
7) Remove the screws that secure the lower hinge to the right side of the cabinet, then
remove the hinge.
8) Remove the washer and nut that secure the pin shaft to the right hole on the lower
hinge, then remove the shaft.
9) Insert the pin shaft into the left hole on the lower hinge, then secure the shaft with the
washer and nut.
38
