ETI B01080601A Guide D'utilisation Et D'entretien
PACKAGE CONTENTS
Part
Description
A
Lens
B
Fixture
C
Mounting Screw
D
Drywall Anchor
ADDITIONAL PARTS AVAILABLE TO PURCHASE
The hardware kit for surface mounting is sold as a separate accessory.
Please contact ETiSSL Customer Service 1-855-384-7754 for additional information.
Part
Description
E
Electrical Box Plate
F
Electrical Box Screw
NOTE: This fixture should be used on a 120 Volt fused circuit 60Hz.
NOTE: Keep your receipt and these instructions for proof of purchase.
WARNING: Shut off the power at the circuit breaker or fuse panel before removing the old fixture.
If you are unfamiliar with electrical installations, we recommend you contact a qualified electrician to do the installation.
INSTALLATION
Select a suitable location that can support the weight of the fixture.
With power disconnected to the electrical box, remove the existing fixture. Make a sketch of how the current fixture is wired (by wire color) or mark the wires
with masking tape and a pencil so you will know how to properly reconnect the wires to the new LED light fixture.
A
B
1
Press the side buttons of the fixture (B) in the direction of the arrows, and remove the lens (A) with the other hand. After separating the lens (A) from
the fixture (B), unplug the wire connector to disconnect the terminal wires.
NOTE: The 8ft. Model # B01082601A, B01085601A have terminal wires at both ends, be reminded to disconnect both connectors.
B
2
Hold the fixture (B) up to the mounting surface to determine which knock out hole to use for wiring the fixture. Mark two keyhole locations on the
mounting surface. Using a screwdriver, punch out one of the large knock out holes in the fixture (B) for wiring, based on the installation position. Drill a
1/8-in. pilot hole into the screw locations marked on the ceiling. You can also use an awl or nail to dimple the screw holes. Install a drywall anchor (D)
and a mounting screw (C) in each drilled mounting hole, but do not tighten fully.
NOTE: The 8ft. Model # B01082601A, B01085601A have four keyholes.
USE AND CARE GUIDE
2FT., 4FT., 8FT. TIRA STRIP LIGHT
Quantity
Quantity
(2ft./4ft.)
(8ft.)
1
1
1
1
2
4
2
4
Quantity
Order #
1
54657102
2
D
Knock Out Holes
C
Keyholes
Model # B01080601A
Model #
B01080601A
B01081601A
B01082601A
Model #
B01083601A
B01084601A
B01085601A
A
B
Keyholes
Part # TRST-2-D-840K-SV
B01081601A
B01082601A
B01083601A
B01084601A
B01085601A
A
B
A
B
E
F
D
C
TRST-4-D-840K-SV
TRST-8-D-840K-SV
TRST-2-R-840K-SV
TRST-4-R-840K-SV
TRST-8-R-840K-SV
C
D
Wire Connector
Table des Matières
Manuels Connexes pour ETI B01080601A
Sommaire des Matières pour ETI B01080601A

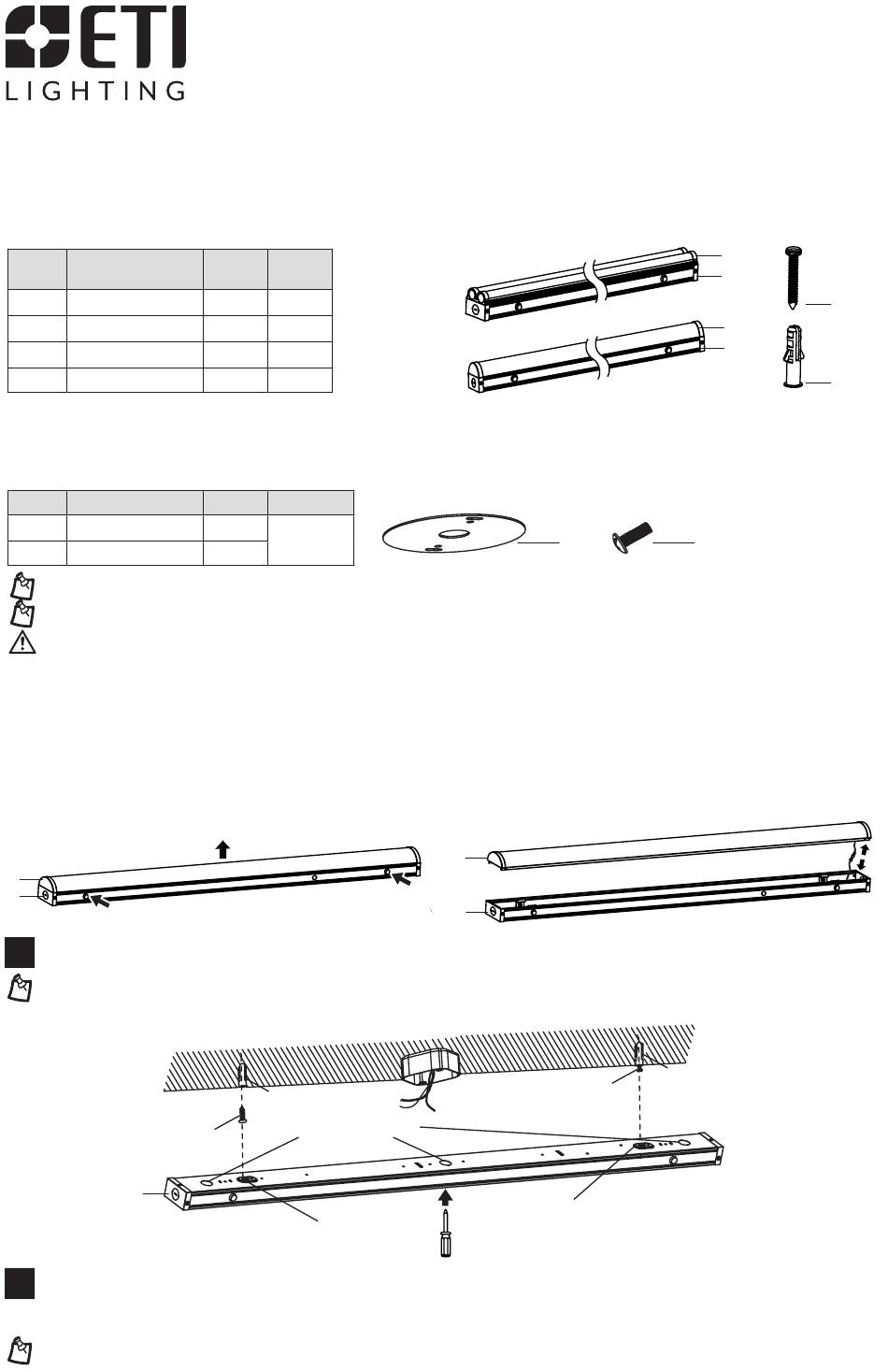

- Page 1 Model # B01080601A Part # TRST-2-D-840K-SV B01081601A TRST-4-D-840K-SV B01082601A TRST-8-D-840K-SV B01083601A TRST-2-R-840K-SV B01084601A TRST-4-R-840K-SV B01085601A TRST-8-R-840K-SV USE AND CARE GUIDE 2FT., 4FT., 8FT. TIRA STRIP LIGHT PACKAGE CONTENTS Model # Quantity Quantity Part Description B01080601A (2ft./4ft.) (8ft.) B01081601A Lens B01082601A...
