Unfolding the Handle

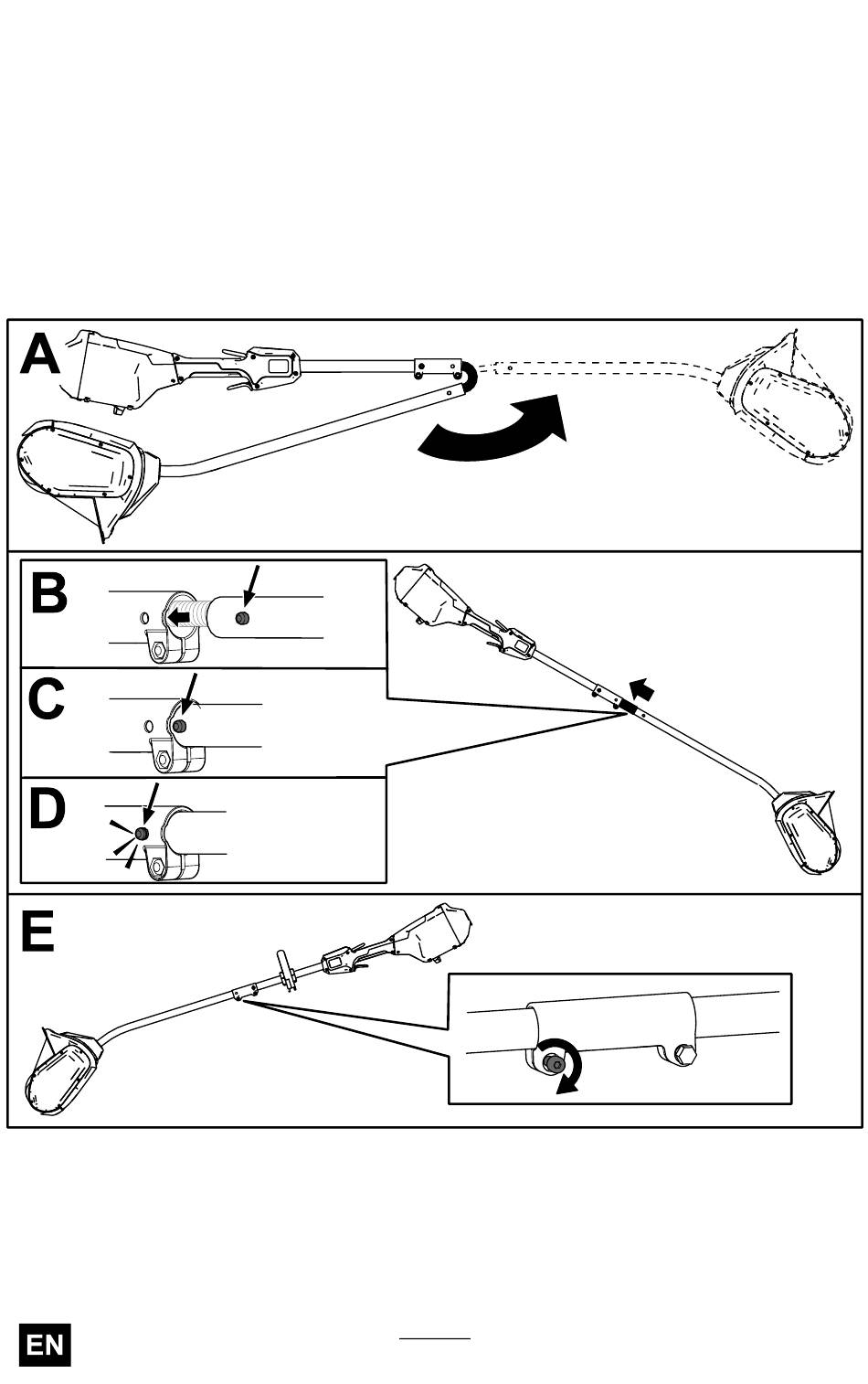

1. Unfold the handle (A of
2. Align the locking button on the lower shaft with the slotted hole on
the upper shaft and slide the 2 shafts together (B and C of
Note:
The locking button clicks into the slotted hole when the shafts
are secured (D of
3. Using the provided Allen wrench, tighten the screw on the shaft
connector until it is secure (E of
Figure 4).
Figure 4).
Figure
Figure 4
14
4).
Figure 4).
g543891
