Installation and Operating Instructions
EN
Slim centrifugal fan box – SVV 80

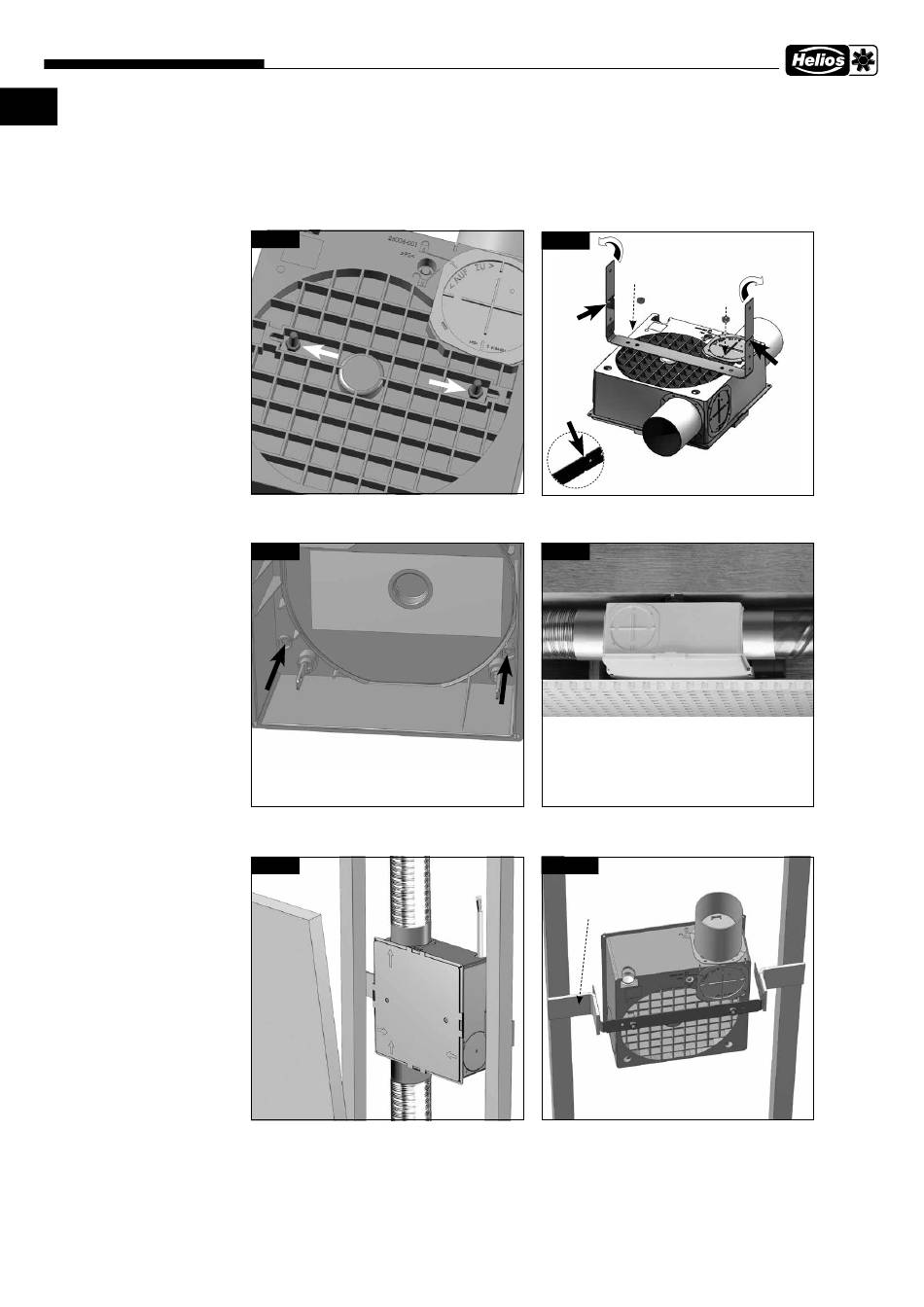

3�3 Assemble mounting holder for wall or ceiling installation
Required for flush mounted installation in a funnel, with thin brick linings, planking or ceiling.
Adjustment
Depending upon the installation and according to the situation, align the mounting holder on the casing and screw the
elements together firmly (Fig. 5-Fig. 6).
Fig� 5
3�4 Examples of wall and ceiling installation
Fig� 7
Drill screw adapter for wall fixing
(without mounting bracket) (Ø 6 mm)
3�5 Installation example at the plasterboard system
Fig� 9
Fig� 6
~
Fig� 8
Installation in suspended ceiling.
Directly inside pipe position
(with mounting bracket)
Plaster-
Fig� 10
board in-
stallation
Pos a.
The fastening at the plasterboard
system is carried out with plaster-
board system specific brackets or
wall holders (Pos. a).
12
➑
~
Mounting bracket Ñ can be
bended or shortened at the notch.
