3. Intended use
• The „stainless steel pillar" socket outlet distributor is used for power distribution in the garden. Two electrical appliances can be connected.
• The product is not suitable for commercial use. It is only suitable for private use.
4. Wiring
• This product complies with protection class I and must therefore be connected to the protective earth conductor.

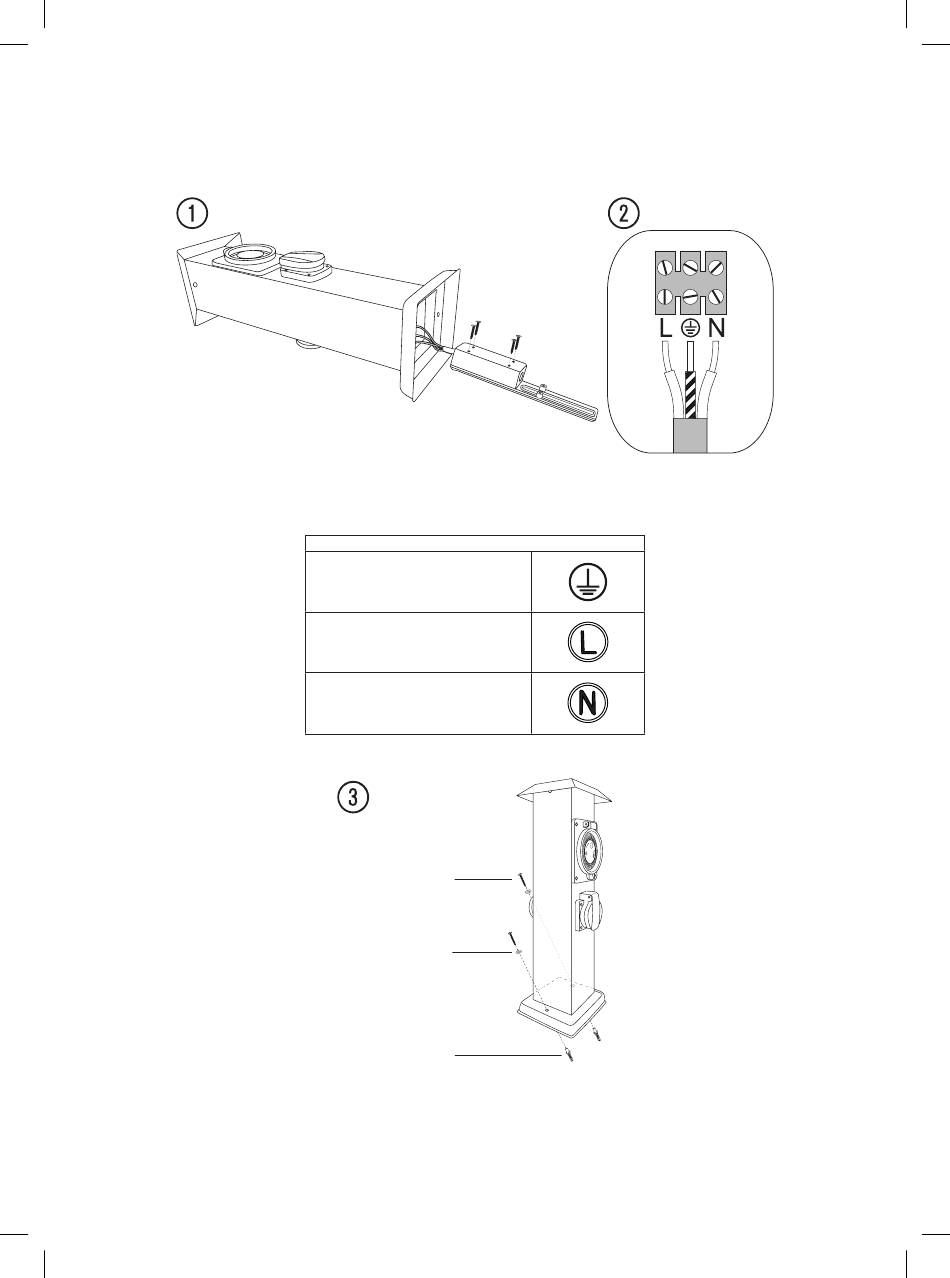

• Loosen the screws to open the cable connection box (Fig. 1).
• The wire ends of the supply cable should be stripped by approx. 5 to 10 mm.
• Fasten the wire ends in the corresponding luster terminals (Fig. 2).
5. Mounting
Drill holes in the floor (concrete, wood or similar) and then screw the product to the floor (Fig. 3).
6
4008153442537_44253_BDA_0125.indd 6
4008153442537_44253_BDA_0125.indd 6
Wire assignment
green-yellow (protective conductor)
brown (phase)
blue (neutral)
Screws
Washers
Dowels
