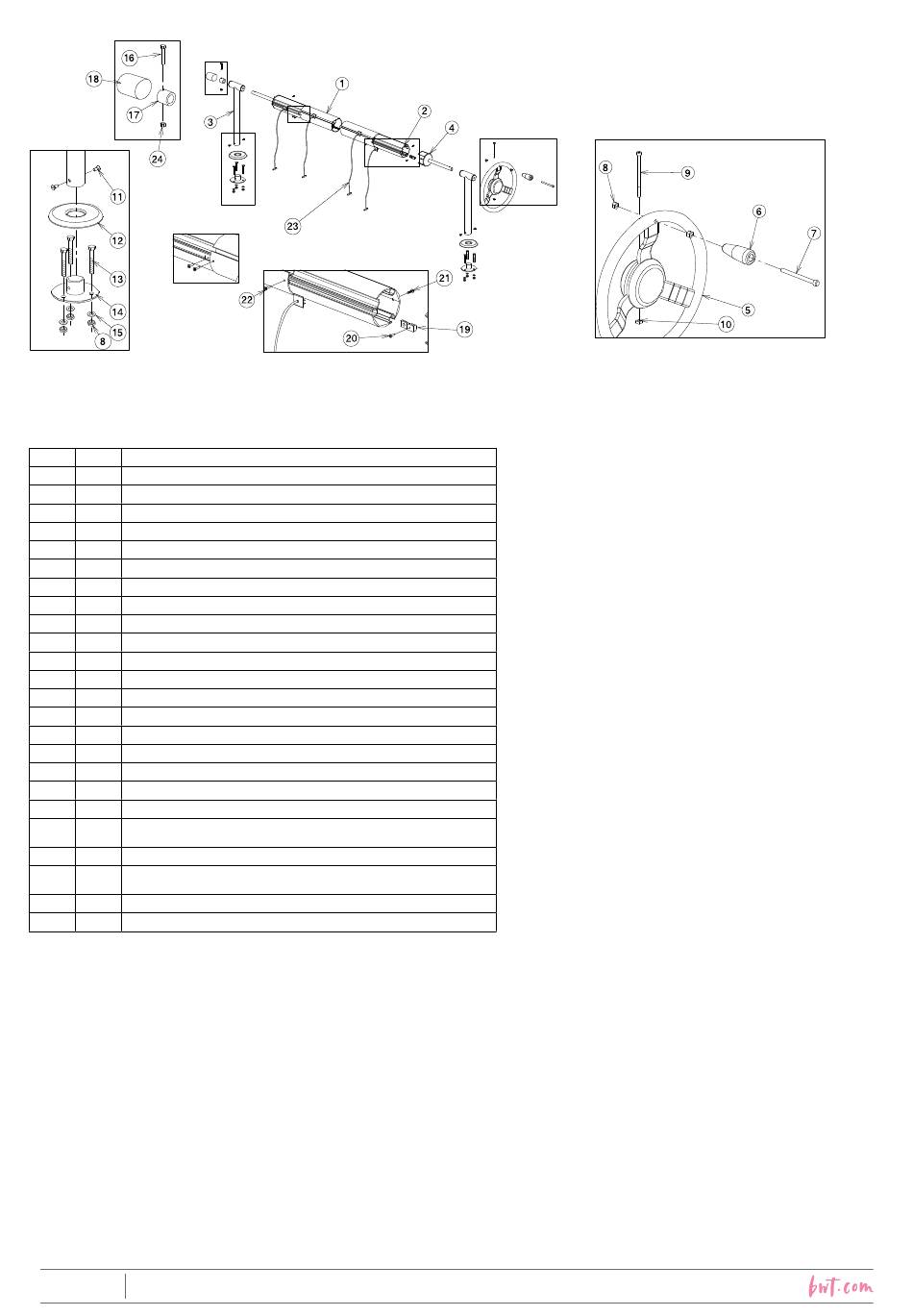

If the axle is too long, shorten each end section (ref 2) by half of the superfluous length.
Rep.
Qty
Components description
1
1
Central sliding section Ø 94 mm
2
2
Sliding end section Ø 89 mm
3
2
End stand for the G10 flange model
4
2
PVC axle end piece tfor end section
5
1
Flywheel, Ø 300 mm
6
1
Flywheel hand grip
7
1
8x100 stainless steel screw
8
8
M8 stainless steel nut
9
1
6x100 stainless steel screw
10
1
M6 stainless steel square nut
11
4
Button- head screw / to fasten the end-stand
12
2
Black ABS escutcheon plate
13
6
Socket head screw M8 X 50, low head
14
2
Screw flange
15
6
Medium M8 washer
16
1
6X 35 stainless steel screw
17
1
Axle locking ring
18
1
Protective cap
19
2
Lug
Self-tapping large round button head pozi 3.5x13 stainless
20
2
steel screw for lug
21
2
5.5 x 15.9 screw
Self tapping cross head pozi 3.5x16 stainless steel screw for
22
2
lug
23
15
Bungee strap
24
1
M6 stainless steel locknut
8/12
