Assembly Instructions
Installing M/Connect Onto Edge of Tabl
Clamp Mount

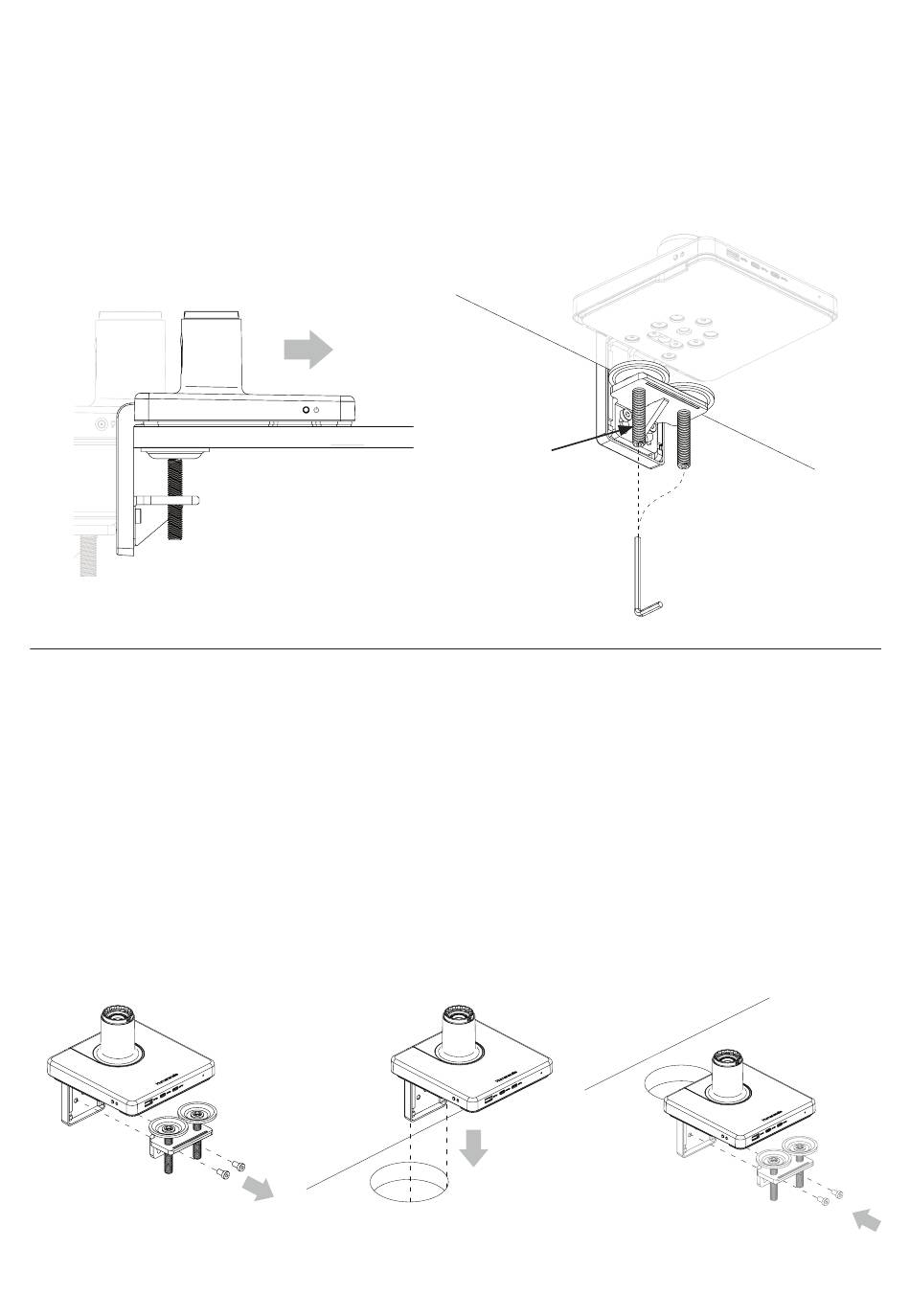

A - For installation on open edge of work surface:
Slide Mount against work surface edge. ①
1
F ully tighten Clamp screws(A) with 4mm hex key. ②
2
B - For installation on work surface positioned against a wall or through a grommet hole:
NOTE: Grommet holes must be at least 3" wide
Remove the two screws using hex key and detach the clamp foot bracket from the L bracket. ③
1
Place the L bracket through the desk gap or the grommet hole and slide it towards the front as far as possible. ④
2
Underneath the work surface, reattach the clamp foot bracket to the L bracket using the screws from step 1. ⑤
3
4
Fully tighten the clamp feet against the work surface.
③
6
e
①
A
②
④
⑤
