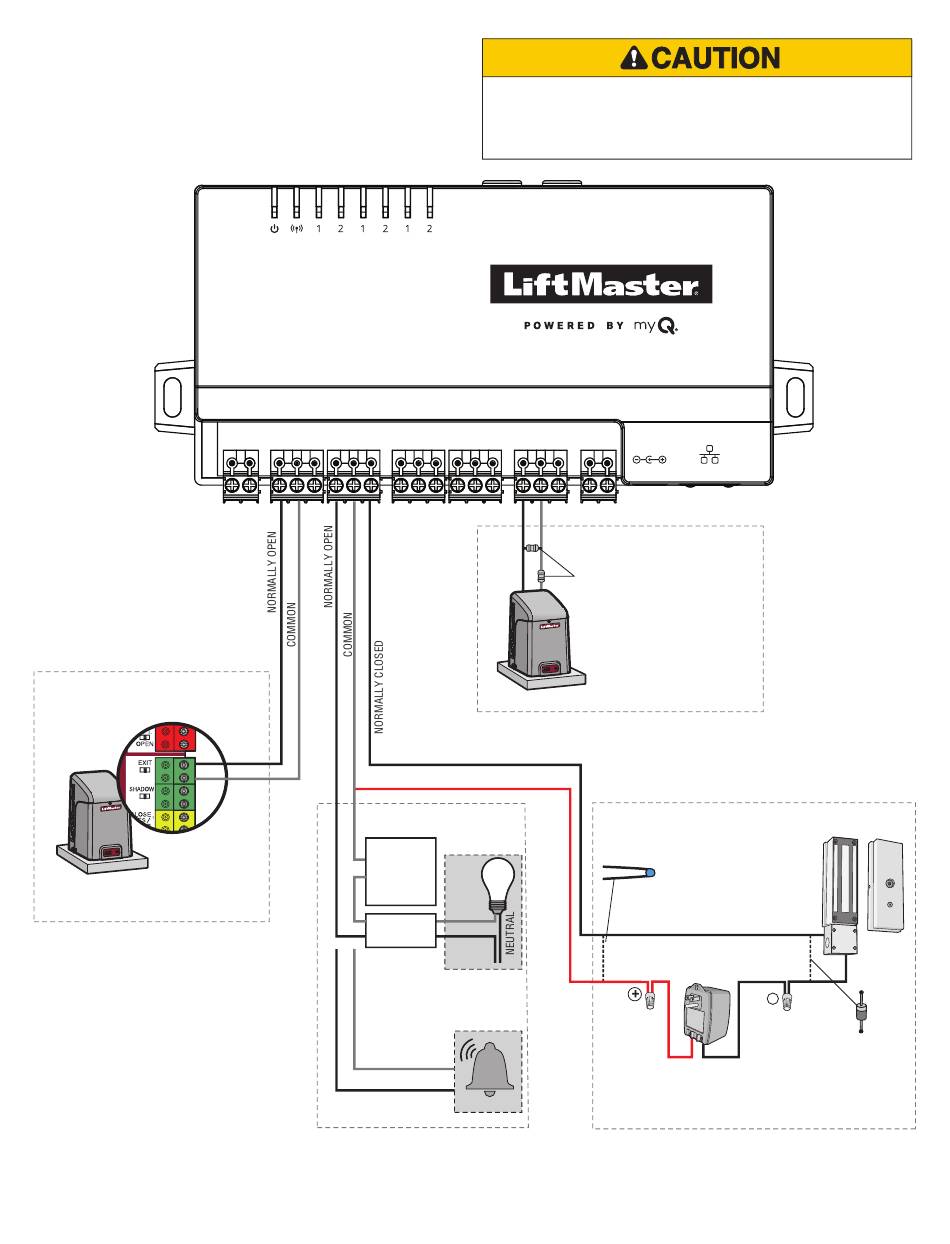

Gate Access
NOTE: The SDA/SLA
Gate input/output shall
not be connected in UL
applications.
PRIMARY RELAY
GATE OPERATOR
Refer to the Gate Operator manual
for wiring details.
NOTE: For UL installations, only a
UL 325 Listed Gate Operator, UL
294 Listed electric door strikes or
UL 294 Listed Maglocks may be
connected to relay output 1 or 2.
All manuals and user guides at all-guides.com
OUTPUT
WIEGAND
1
2
OUTPUT
GATE
SDA SCL
NO COM NC
NO COM NC
D1 COM D0
EXIT
AUXILIARY RELAY
Low
Voltage
Power
Supply
Isolation
Relay
COMMON
NORMALLY OPEN
Not responsible for conflicts between the information listed in
the wiring diagram and the requirements of your local building
codes. The information is for suggested use ONLY. Check your
local codes BEFORE installation.
INPUT
1
2
WIEGAND
INPUT
POWER
D1 COM D0
1 GND 2
GND 12V-24V
EOL (End of Line)
Resistor (1k ohm)
LIGHT
LOAD
LINE
OR
OR
ALARM BYPASS
POWER
ETHERNET
STATUS
GATE OPERATOR
(connect to Aux
Closed Limit switch -
refer to gate operator
manual)
*AUXILIARY RELAY
For AC Power:
Install a Siemens S10K30MOV
(Metal Oxide Varistor) (provided)
or equivalent
NORMALLY CLOSED
Use 18-22 AWG
COMMON
Power for Maglock
(Not Provided)
DO NOT use the power
supply for the controller
MAGLOCK
For DC Power:
Install a 1N4005
diode or equivalent
