DESCRIPTION OF THE HOIST
Robur hand chain block is a portable manual actuated hoist. It is designed for lifting a load suspended on a load chain by manually
actuating an hand chain.
It is normally used on a fixed anchoring point.
It is manufactured with high quality materials and has a compact, light and manageable design. It is portable and easy to install.
It has a double pawl ratchet system to guarantee the reliability of lifting in total security for the operators.
The lifting chain is secured to a low limit stop itself secured to the hoist.

TECHNICAL SPECIFICATIONS

TABLE
Standard
WLL
lifting height
(t)
(m)*
0,5 3
1 ** 3
1,5 3
2 ** 3
3 3
5 3
10 3
* For each size, for the same WLL, lifting heights other than those stated in the table are available on request.
**For the sizes indicated, the hoist is available in a self-locking hook configuration.
INDIVIDUAL PROTECTION DEVICES TO BE WEAR USING THE HOIST
SAFETY SHOES
SAFETY GLOVES AGAINST PHISICAL AGENTS
HELMET
8143_8143SL.indd 7 8143_8143SL.indd 7

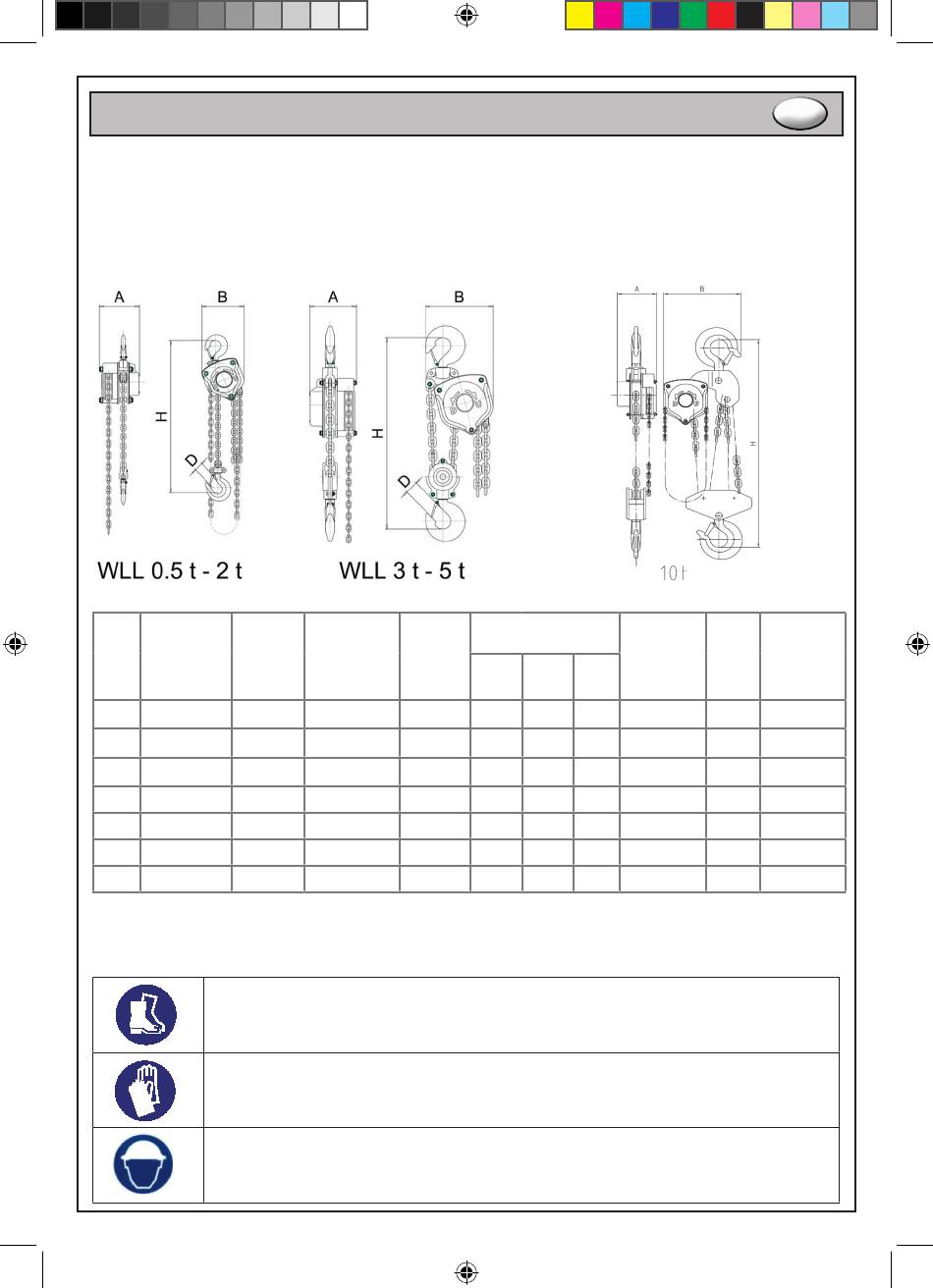

Fig. 1
Minimum
Operating
distance
effort at nomi-
between
nal capacity
hooks H strands
(daN)
(mm)
270 27
317 44
399 44
399 44
465 45
618 47
798 52
Dimension (mm)
Num-
ber of
A B D
1 137 136 35
1 162 142 35,5
1 183 155 45
1 183 155 45
2 220 155 50
2 288 183 64
4 348 195 85
EN I
Fig. 1B
Chain
Net
dimension
weight Code
(mm)
(kg)
5x15 8,5 8143 - 0,5t
6x18 12 8143 - 1t
8x24 15 8143 - 1,5t
8x24 19,5 8143 - 2t
8x24 21,5 8143 - 3t
10x30 38 8143 - 5t
10x30 76 8143 - 10t
