MAKING THE CONNECTIONS

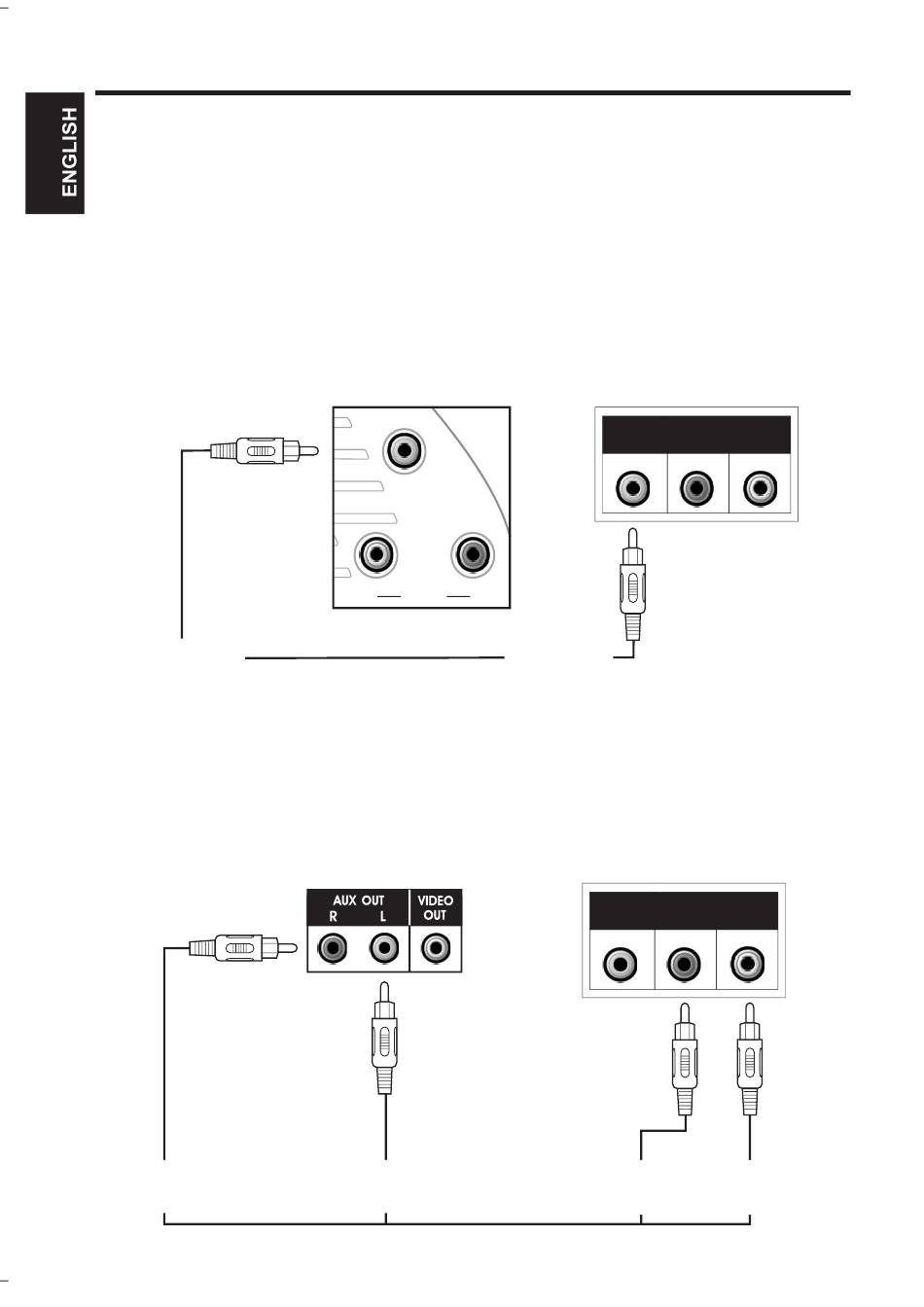

CONNECTING A VIDEO COMPONENT FOR INPUT
Please follow the steps below to display CDG lyrics on the Singing Machine's monitor from
another video source:
(1) Locate the multicolored patch cords.
(2) Connect video cable (yellow) to the Video In jack on the front of the Singing Machine.
(3) Connect the other end of the Video Cable (yellow) to the Video Output on another video
source such as a VCR.
(4) Set the FUNCTION Selector switch to AUX and the MONITOR Selector switch to
CDG/AUX.
(5) Adjust the BRIGHTNESS, CONTRAST and VERTICAL HOLD knobs located at the back
of the Singing Machine for the best picture quality.
VIDEO INPUT
(Yellow Jack)
AUDIO CONNECTION
Connect the unit to your TV or home stereo system using the White and Red connections on the
supplied patch cord. Plug the white end of the patch cord into the white AUX OUT jack on the
unit. Plug the red end of the patch cord into the red AUX OUT jack on unit. Now connect the other
end of the cable's white (left channel) and red (right channel) plugs to your TV or home stereo
system's 'AUDIO IN' or 'AUX IN' jacks.
AUX OUTPUT
R
(Red Jack)
All manuals and user guides at all-guides.com
FRONT VIEW OF
SINGING MACHINE
VIDEO IN
L AUX IN
REAR VIEW OF
SINGING MACHINE
AUX OUTPUT
L
(White Jack)
E9
REAR VIEW OF VCR
VIDEO
OUT
R
VIDEO OUTPUT
(Yellow Jack)
REAR VIEW OF TV
VIDEO
INPUT
AUDIO INPUT
R
(Red Jack)
AUDIO
OUT
R L
AUDIO
INPUT
R L
AUDIO INPUT
L
(White Jack)
