Specifications [EC Declaration of Conformity]
EN 61010-031:2000
Type C probe assembly
Attenuation Ratio . . . . . . . . . . . . . 1x (1:1); 10x (10:1) & 1x/10x (1:1 / 1:10) 10:1±0.5
Bandwidth . . . . . . . . . . . . . . . . . . see table
Rise Time . . . . . . . . . . . . . . . . . . . see table
Input Resistance . . . . . . . . . . . . . . see table (used with oscilloscope with 1 MΩ input)
Input Capacitance . . . . . . . . . . . . . see table
Compensation Range . . . . . . . . . . see table
WARNING Do not apply to the input any potential that exceeds the maximum
Max. Input Voltage . . . . . . . . . . . . 600 V CAT I, 300 V CAT II (DC + peak AC)
Pollution Degree 2
Max. Operating Temp . . . . . . . . . . 0° to +50° C
Humidity . . . . . . . . . . . . . . . . . . . . 85 RH or less (at 35° C)
Cable Length . . . . . . . . . . . . . . . . see table
Definitions:
Measurement Category I (CAT I) is for measurements performed on circuits not directly connected to mains.
Measurement Category II (CAT II) is for measurements performed on circuits directly connected to the low voltage in-
stallation. Examples are on household appliances, portable tools and similar equipment.
Pollution Degree 2 refers to an operation environment where normally only dry non-conductive pollution occurs
Temporary conductivity caused by condensation must be expected.

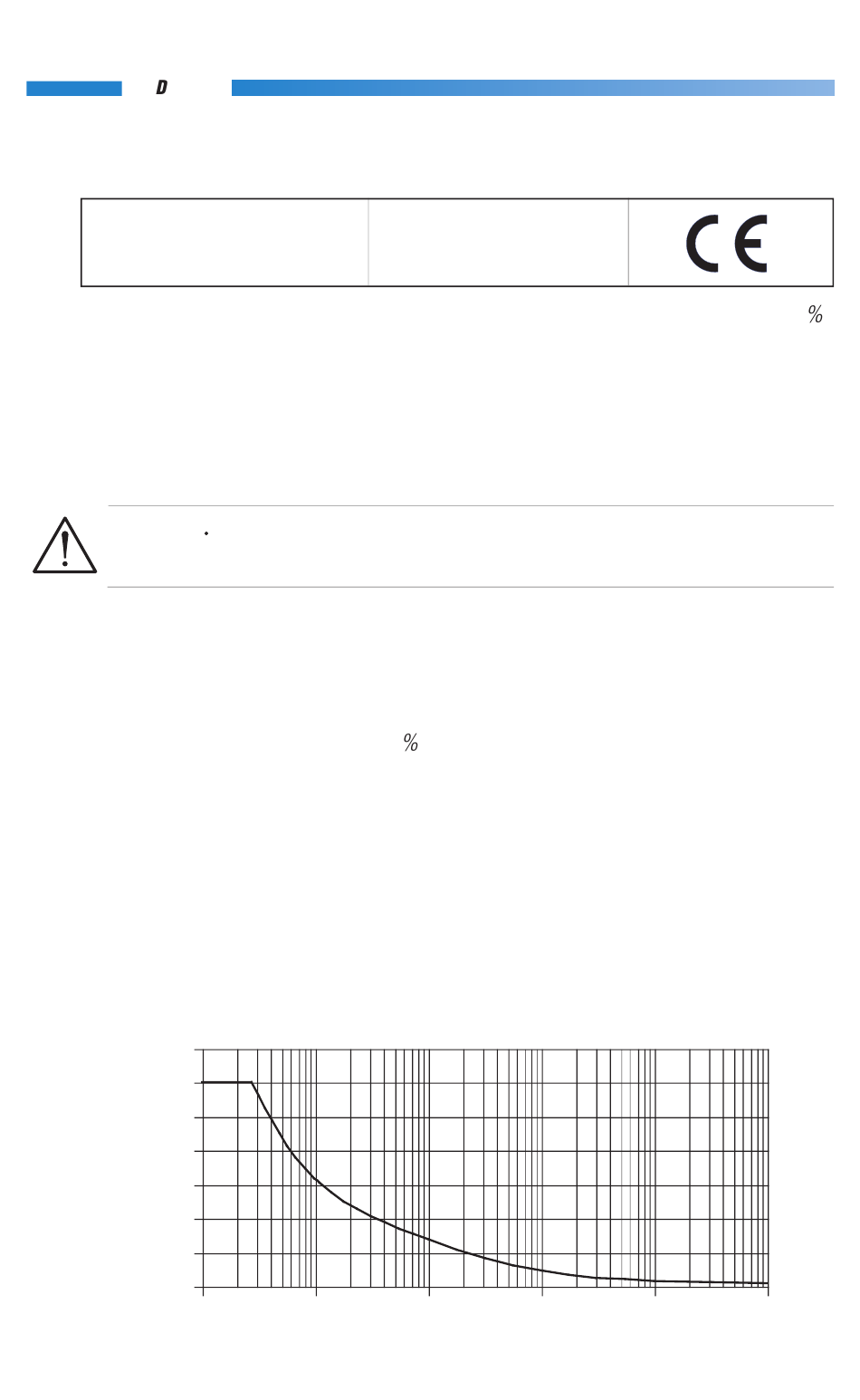

Voltage vs Frequency Derating Curve
700 V
600 V
500 V
400 V
300 V
200 V
100 V
0 V
6
ratings of the probe .
10 KHz 100 KHz
Low Voltage Directive
(LVD) 93/68/EEC
(and 73/23/EEC)
Derated with Frequency (see Derating Curve)
1 MHz 10 MHz 100 MHz 1 GHz
