Timbren GMRZR2 Instructions De Montage

01/14/25
GMRZR2

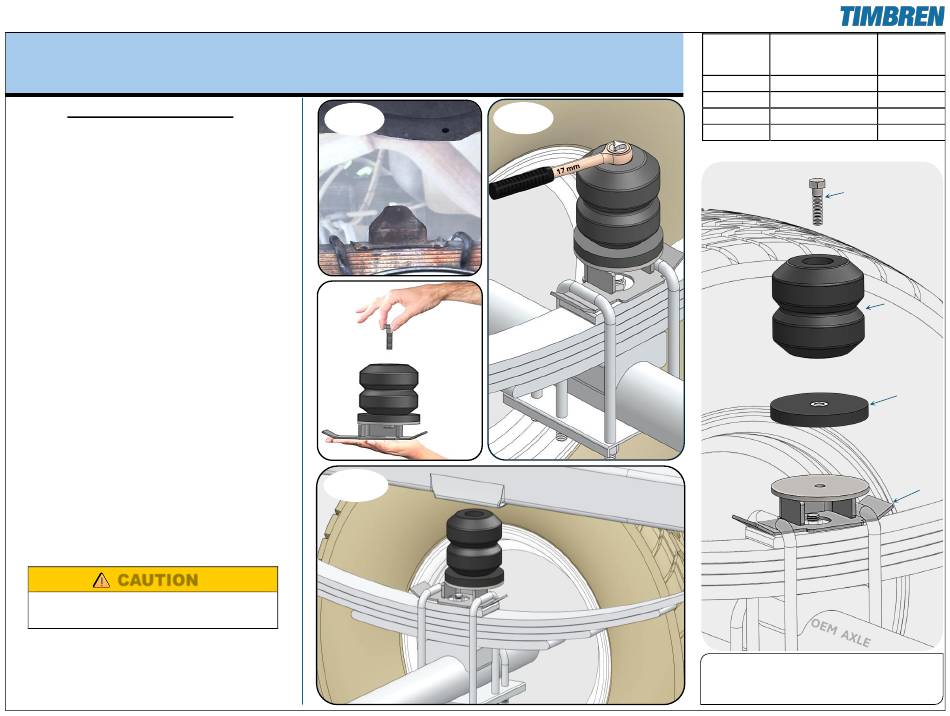

INSTALLATION INSTRUCTIONS
STEP 1: Raise Vehicle:
•
Partially raise the vehicle one side at a
time.
STEP 2: Remove OEM Bump Stop:
•
Loosen axle U-bolts and remove the
existing bump stop. Fig.1: Shows the
original bump stop location.
STEP 3: Preassemble Parts:
•
Use 17mm socket to assemble Aeon
rubber spring to the bracket. (Part 2 is
optional; use a longer fastener if
utilized.) Fig.2: Displays the assembled
items prior to installation.
STEP 4: Install Timbren Kit:
•
Install Timbren kit assembly to the leaf
spring using OEM U-bolts.
STEP 5: Lower Vehicle.
Fig.3 Shows preassembled kit clamped
to the leaf spring, ensuring everything is
secured using the appropriate wrench
and socket.
Fig.4: Shows the installed kit.
CAUTION
Never Work under a truck supported only by a
jack; it may slip or fall, causing serious injury or
death.
Do not exceed vehicle manufacturer's recommended
weight rating. Check for AEON ® interference with
vehicle components - Under load AEON ® will
"expand" in diameter.
Rear suspension package
Ensemble pour suspension arrière
Ensemble para suspensión de trasero
Fig.3
Fig.1
Fig.2
Fig.4
REFERENCE PART NO. QUANTITY
RÉFÉRENCE
NUMÉRO DE PIÈCE QUANTITÉ
REFERENCIA NÚMERO DE PIEZA CANTIDAD
1 K11033-003; LH, RH
2 A25722-90P00
3 A00550-65P30
4 F11539-350
4
3
Overall kit height:
5-3/4"
Hauteur totale du kit:
Altura total del kit
GMRZR2 PAGE 1 OF 2
2
2
2
2
2
1
