LADDER COLUMN

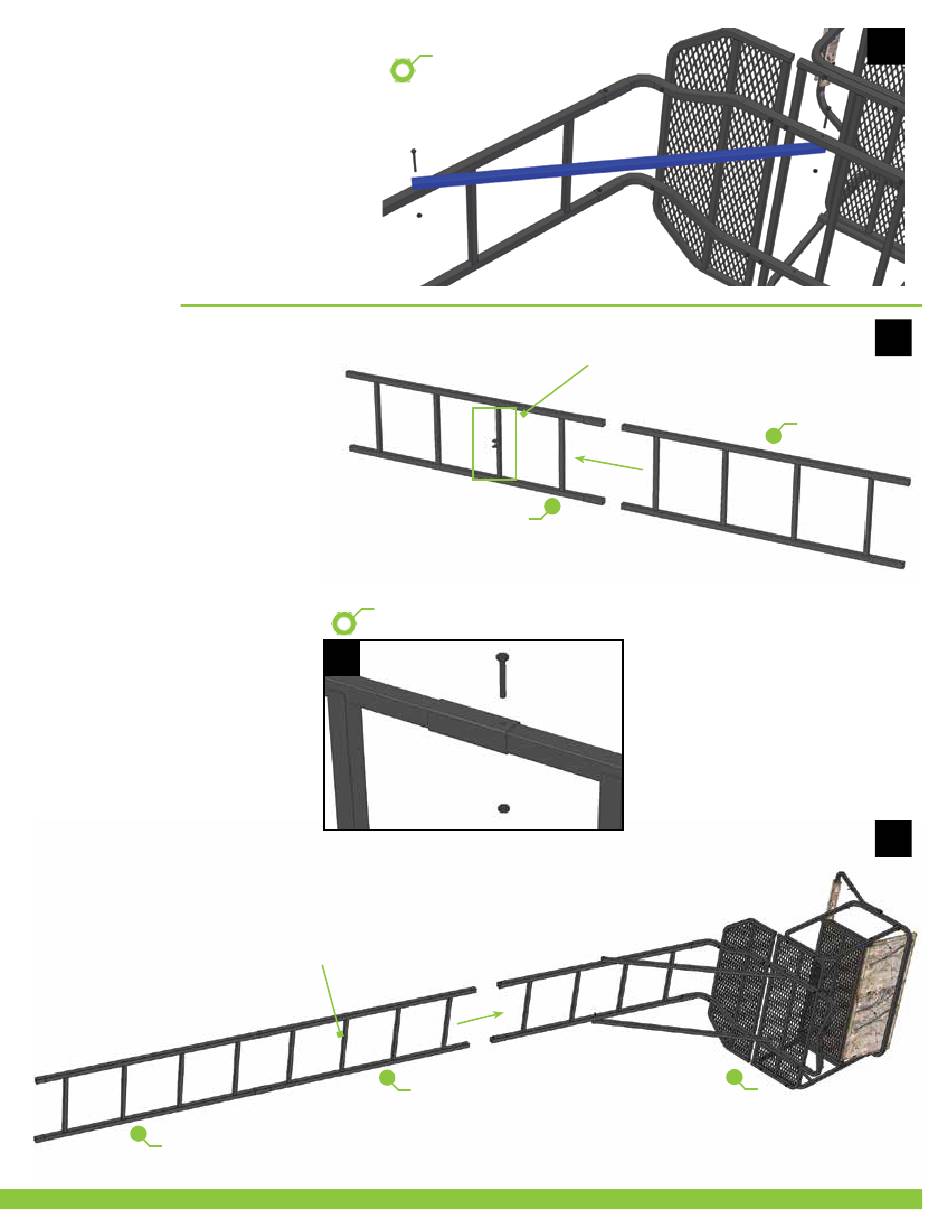

1. Position the Bottom Ladder Section
and Middle Ladder Section as shown in
figure 27. The welded U bracket faces
the tree when fully assembled.
The Bottom Ladder Section has no
welded couplers.
2. Slide the Ladder Sections together,
line up the bolt holes and use one
bolt and lock nut
to secure each side
(see figure 28).
3. Slide the completed Bottom
and Middle ladder sections into the
completed Platform / Seat assembly to
finish assembly as shown in figure 29.
4. Secure using two
1 3/4" bolts and
lock nuts.
(See figure 30)
BOTTOM LADDER SECTION
(PN 82066.930)
2 3/4" BOLT, LOCK NUT -
WRENCH TIGHTEN
1 3/4"
MIDDLE
LADDER
SECTION
(PN 82066.920)
1 3/4" BOLTS, LOCK NUTS -
WRENCH TIGHTEN
28
WELDED
U BRACKET
FACES TREE
MIDDLE LADDER SECTION
(PN 82066.920)
WELDED
U BRACKET
COMPLETED
PLATFORM / SEAT
ASSEMBLY
26
27
BOTTOM
LADDER
SECTION
(PN 82066.930)
29
PG 7
