1
INDEX
2
PARTS LIST
BOX CONTENTS
PN
DESCRIPTION
82066.010
CROSS TENSION BAR
82066.020
LADDER SUPPORT
82066.200
LEFT PLATFORM BRACE
82066.250
RIGHT PLATFORM BRACE
82066.100
FRONT PLATFORM
82066.150
REAR PLATFORM
82066.300
YOKE
82066.400
LEFT SEAT SUPPORT
82066.450
RIGHT SEAT SUPPORT
82066.600
SEAT PAN
82066.910
TOP LADDER SECTION
82066.920
MIDDLE LADDER SECTION
82066.930
BOTTOM LADDER SECTION
82066.940
STABILIZER MALE SECTION
82066.950
STABILIZER FEMALE SECTION
82066.500
ARMREST
82066.820
LEFT GUNREST ARM
82066.830
RIGHT GUNREST ARM
82066.810
GUNREST BAR
82066.850
FOAM SEAT
82066.840
GUNREST PAD
82066.700
ACCESSORY PACKET
ACCESSORY PACKET CONTENTS
PN
DESCRIPTION
82066.890
HARDWARE PACKET
82066.750
PLATFORM RATCHET WITH
LOOP END
82066.755
PLATFORM SHORT STRAP
FOR RATCHET
82066.760
SHORT LADDER STABILIZER STRAP
WITH CAM BUCKLE
82066.765
LONG LADDER STABILIZER STRAP
WITH LOOP END
82066.870
INSTRUCTIONAL DVD
82066.880
4 POINT HARNESS WITH TREE
STRAP AND INSTRUCTIONS
STABILIZER BAR ROPE
3
TOOLS REQUIRED
Tools
• 7/16" Wrenches and / or Socket / Ratchet
- Assembly can be made easier by the use of a powered ratchet or drill with socket adapter (take care not to overtighten
when using power tools to assemble)
- It is recommended that all bolts be sorted by thread count / length prior to assembly.
PG 2
GENERAL WARNINGS AND PRECAUTIONS, STAND WEIGHT LIMITS
SECTION 1 - INDEX
SECTION 2 - PARTS LIST
SECTION 3 - TOOLS REQUIRED
SECTION 4 - ASSEMBLY
SECTION 5 - SETUP AND USE
SECTION 6 - MAINTENANCE AND CARE
SECTION 7 - HARNESS SUSPENSION INFORMATION
SECTION 8 - LIMITED WARRANTY INFORMATION
Please call 256-353-0634 or visit http://www.summitstands.com/contactus/
if you have any questions, if you need replacement parts, if you have any missing parts or if the
included DVD does not play.
QTY
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
QTY
1
1
1
2
2
1
1
1

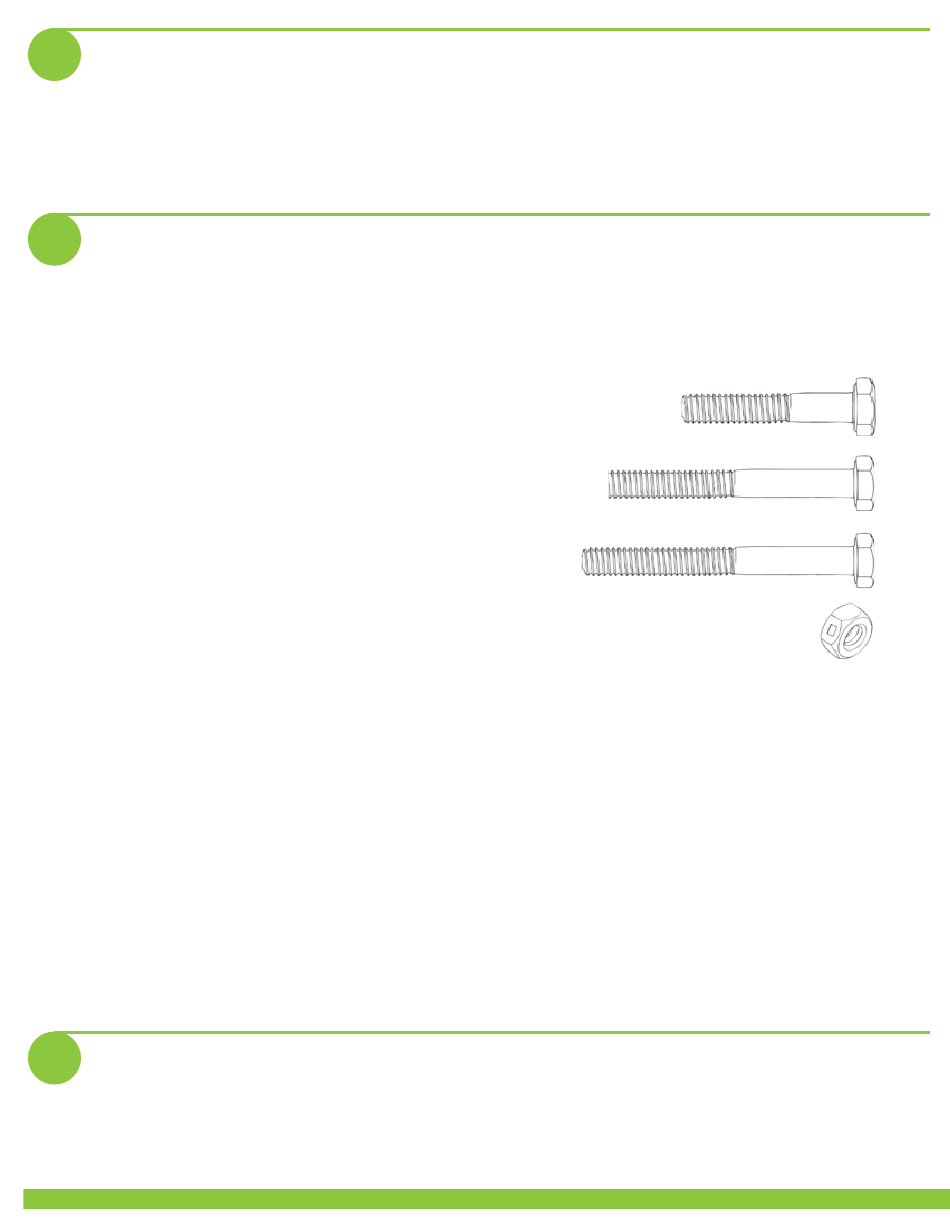

82066.890 - HARDWARE PACKET
All bolts used are 1/4" threads, grade 5.
PN
DESCRIPTION
10601
1 3/4" BOLT, 1/4x20
10670
2 1/2" BOLT, 1/4x20
2 3/4" BOLT, 1/4x20
10612
LOCK NUT, 1/4x20
1/4" WIRE LOCK PIN
1/4" BUSHINGS
RUBBER BUMPERS FOR GUNREST
Use
Main Ladder Bolts / Nuts -1/4x20 hardware
PG 1
PG 2
PG 2
PG 2
PG 3 - 8
PG 9 - 11
PG 12
PG 12
PG 12
QTY
19
14
4
37
3
2
2
www.summitstands.com
