Page 10
AXIS T90C20
When camera lens faces left
1. Remove 2 screws located on the top on either side of the LED block.
2. Unscrew the ground wire from the screw hole to the left and attach to a screw hole to the
right.
3. Align the LED block with the screw holes to the left and fasten the 2 screws again.
When camera lens faces right
1. Remove 2 screws located on the top on either side of the LED block.
2. Unscrew the ground wire from the screw hole to the left and attach to a screw hole to the
right.
3. Loosen the cable gland and pull a greater length of the cable so it can reach the left side of the
IR-LED.
4. Remove 2 screws on the control board and fasten the control board to the left.
5. Fix the LED block where the control board was with 2 screws.

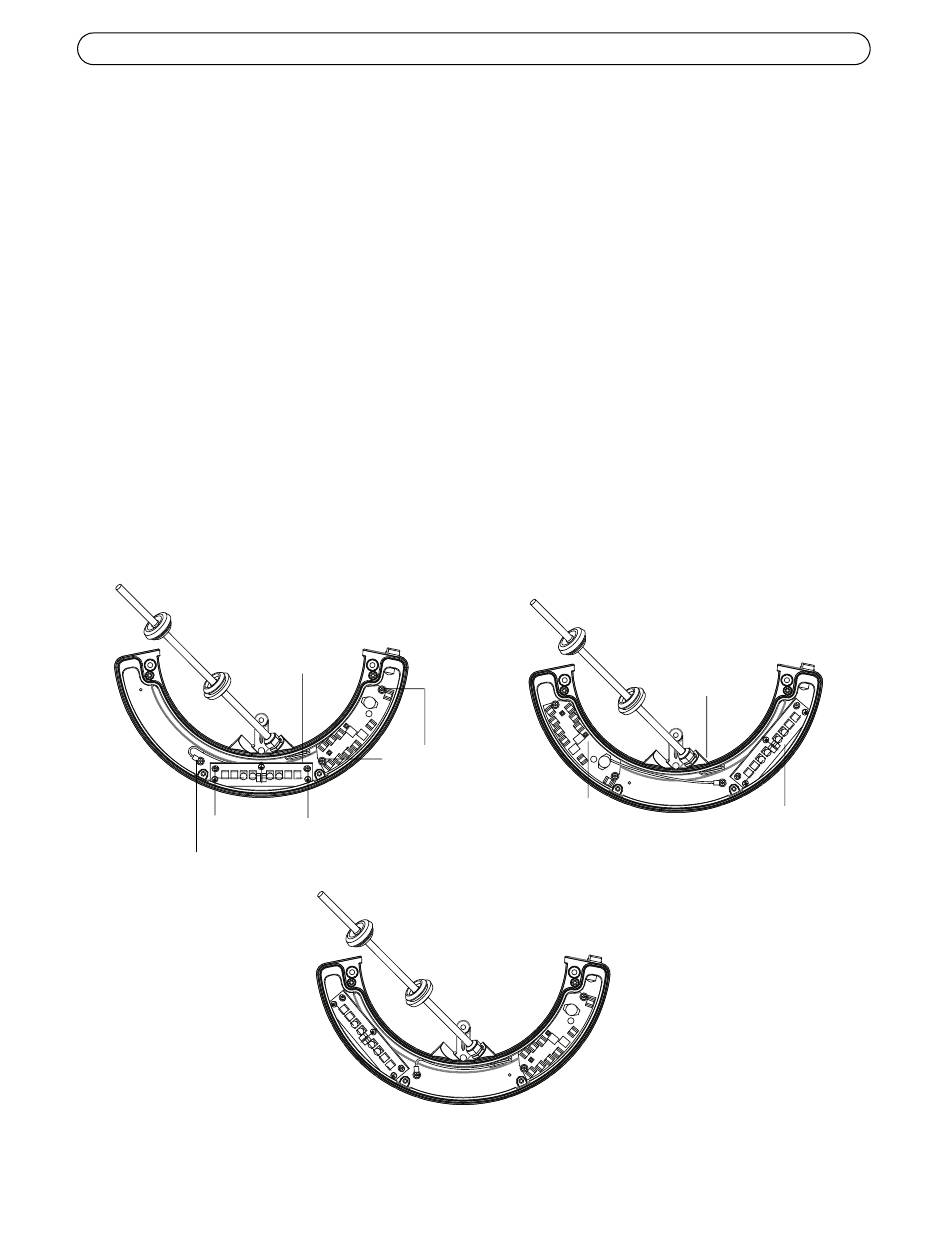

LED block to the center
LED block
2 screws on LED block
Ground wire
All manuals and user guides at all-guides.com
AXIS T90C10/T90C20 Fixed Dome IR-LED User Guide
2 screws on control
board
LED block to the left
LED block to the right
Cable gland
Control board
LED block
