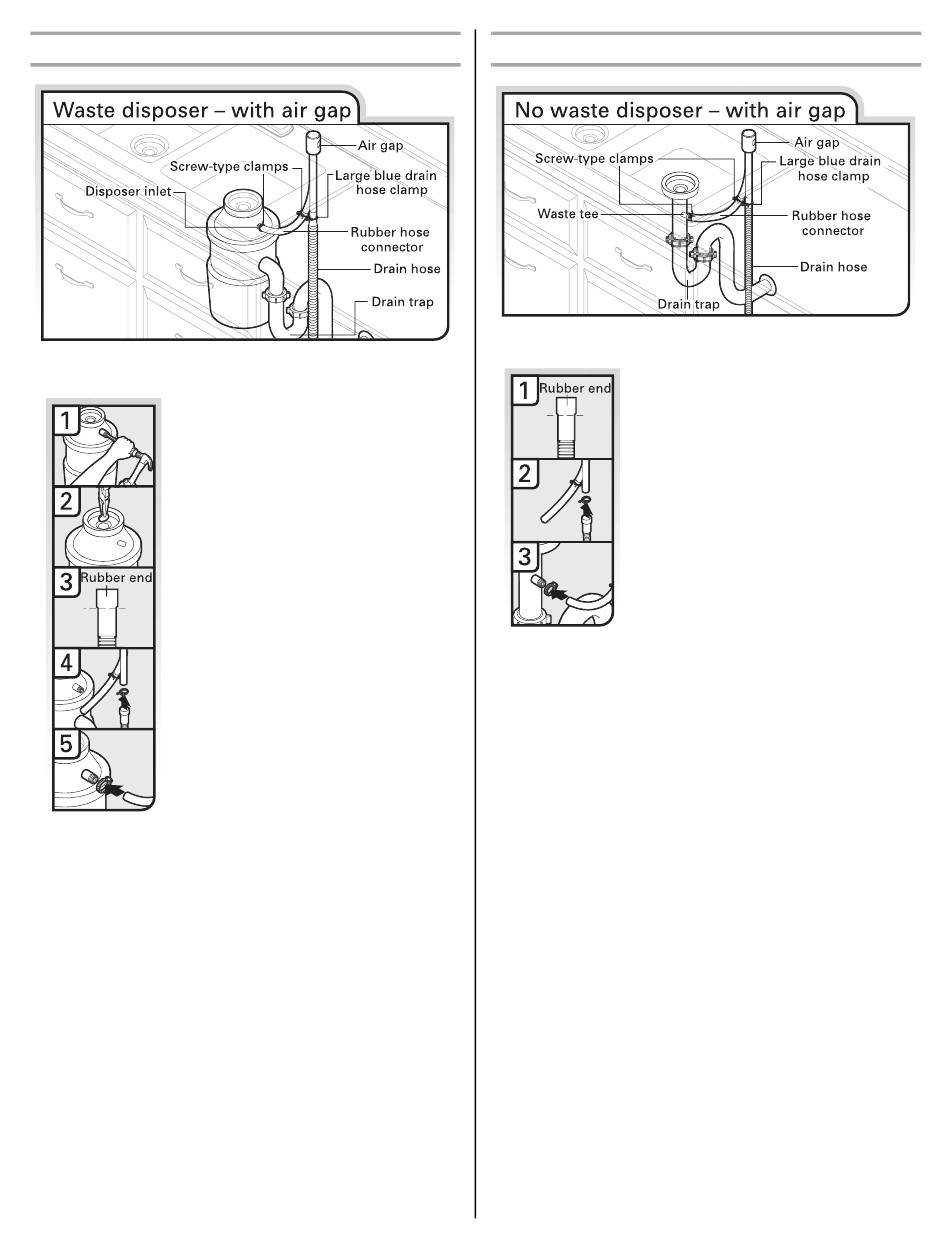

Option C, Waste disposer – with air gap
1. Using a hammer and screwdriver,
knock plug into disposer.
2. Use needle-nose pliers to remove
plug.
3. Connect rubber end of drain hose to
air gap and cut if needed.
NOTE: Do not cut ribbed section.
4. Attach drain hose to air gap with
large blue drain hose clamp
(provided). Use pliers to squeeze
clamp open and move into position.
If the drain hose was cut, use a 1¹⁄₂"
to 2" (3.8 to 5 cm) screw-type clamp
(not provided).
5. Use a rubber hose (not provided)
with screw-type clamps (not
provided) to connect from air gap to
disposer inlet.
Option D, No waste disposer – with air gap
1. Connect rubber end of drain hose to
air gap and cut if needed.
NOTE: Do not cut ribbed section.
2. Attach drain hose to air gap with
large blue drain hose clamp
(provided). Use pliers to squeeze
clamp open and move into position.
If the drain hose was cut, use a 1¹⁄₂"
to 2" (3.8 to 5.1 cm) screw-type
clamp (not provided).
3. Use a rubber hose (not provided)
with screw-type clamps (not
provided) to connect from waste tee
to air gap.
