ENGLISH

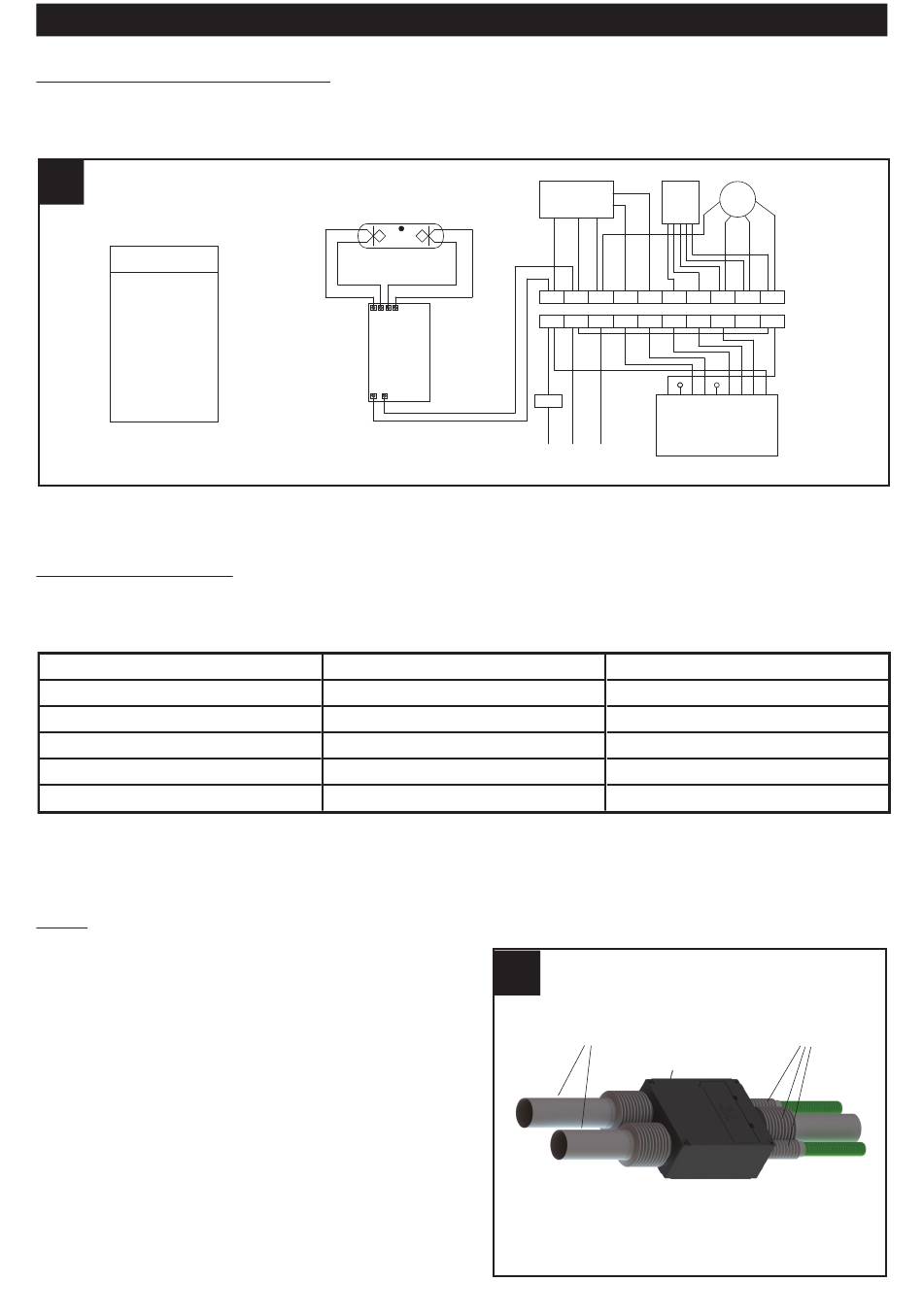

Electrical connections

These operations must only be performed by professionally qualified personnel before installing the device in
the false ceiling. After making the connections, close the door.
9
Wires color code
BU=blue
BN=brown
GNYE=yellow/green
RD=red
BK=black
WH=white
GN=green
YE=yellow
GY=grey
PK=pink
VT=purple
OG=orange

Functional test

To complete installation work, check the connections and carry out a functional test, according to the following
diagram:
Switch
ON/OFF
High speed
Medium speed
Low speed
ON/OFF
In case of abnormal operation during testing, switch off the device and check connections.

Use

The device has continuous operation, with two
operating modes:
- Ventilation: the air taken from the outside is filtered
and sent inside; in this mode, air return from the inside
is blocked
- Purification: air taken from the inside is disinfected by
the photocatalysis unit, filtered and re-sent inside; in
this mode, air inlet from the outside is blocked
In both modes, you can select 3 different air flow
intensities: min, med, max. speed.
NB In the event of prolonged absence, a switch can be
installed on the line to switch off the appliance.
All functions are managed by an external control panel.
See the relevant Instructions Manual for details on
operation.
UV LAMP
(FC UNIT - DF09960)
GY BN
BN GY
1 2 3 4
BALLAST
L N
BN BU
Switch setting
ON
MAX
MED
MIN
OFF
GY
PCB
YE CAPACITOR
BN BU GNYE
WH GN BUBNBK
L N G LS
MODEL 1 MODEL 2
L N G LS
MODEL 1 MODEL 2
BU
Safety
N M1 M2 M3 M4 LS MS HS L
switch
BN BU GNYE
L N G
MAIN 230V
Check
Ventilation active
Maximum ventilation
Medium ventilation
Minimum ventilation
Minimum ventilation
10
Fresh air inlets
M
GNYE BK
BU BN
MS HS N
MS HS N
BU
OG PK VT GY BK BN
LCD
Supply air
