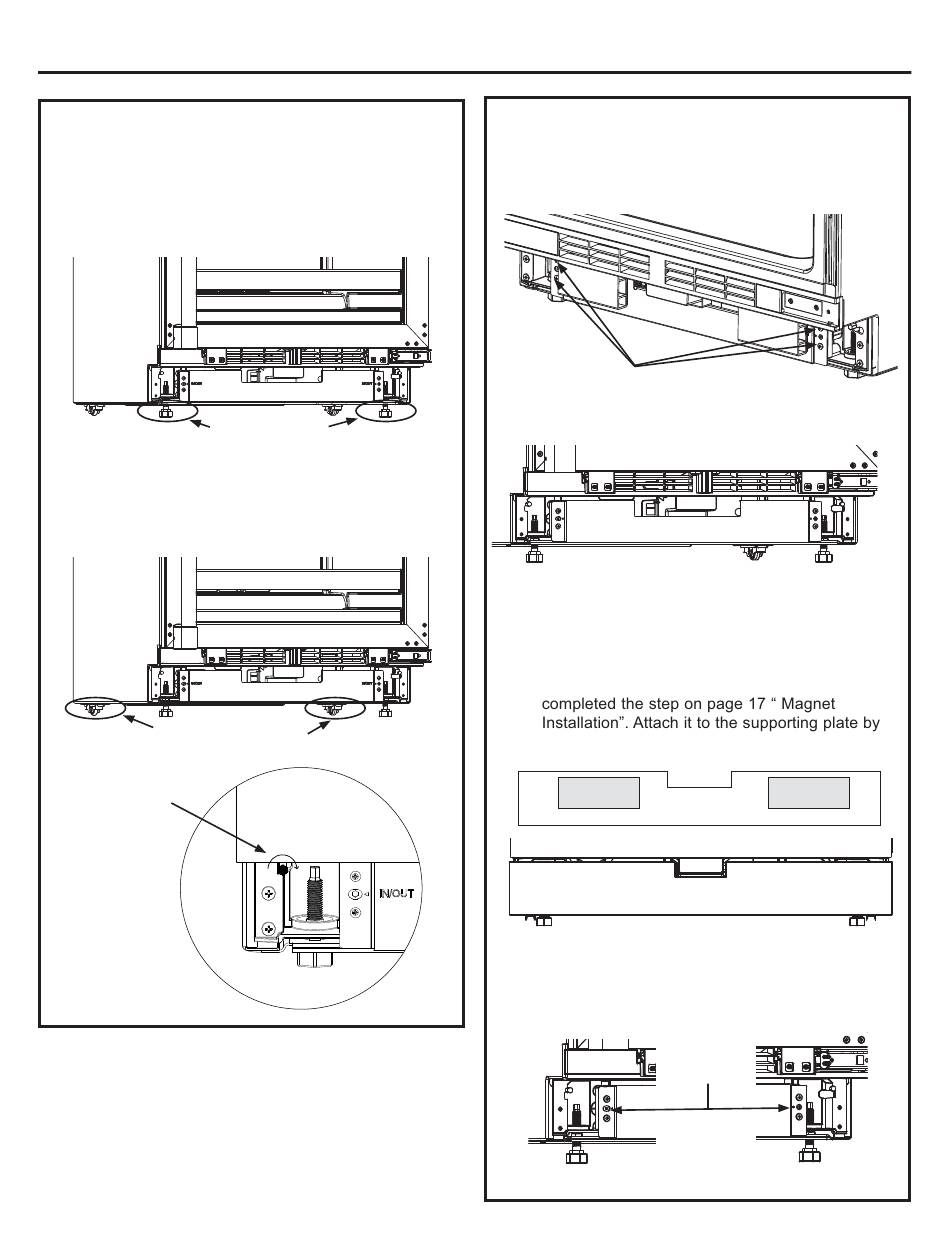

ADJUST THE LEVELING LEG
(TO FIT CUT OUT)
Adjust the front levelling legs
1. Adjust the height of two front leveling legs. Use either
a right angle driver at top of each leg or a 1"
(2.54 mm) wrench at foot of each leg.
Front levelling legs
2. Adjust the rear leveling rollers. Use the 1/4"
(6 mm) hex head driver bit. Turn the left screw
clockwise to raise the left back of the unit. Turn the
right screw counter-clockwise to raise the right back
of the unit
Rear leveling rollers
Rear leveling roller
adjustment screw
49-1000775 Rev. 2
Installation Instructions
INSTALL TOE KICK SUPPORTING PLATE
AND TOE KICK
1. Install toe kick supporting plate
1a. Unscrew 4 screws at bottom front of the unit
Unscrew 4 screws
1b. Install the supporting plate which comes with the
unit with same screws.
2. Install the Toe Kick.
2a. If using a stainless steel toe kick, attach it to the
supporting plate by using magnetic backing on
the toe kick.
2b. If using a custom toe kick, make sure you
using magnetic backing.
3. Adjust the toe kick. Using the adjustment fasteners
located below, adjust the toe kick supporting plate
forward or backward for proper cabinet alignment.
Adjustment
fastener
29
