JOIN DUAL INSTALL
4. Install 3 back connectors.
5. Install front trim piece (front connector).
28
Installation Instructions
(cont.)
Front Trim Piece (Front Connector)

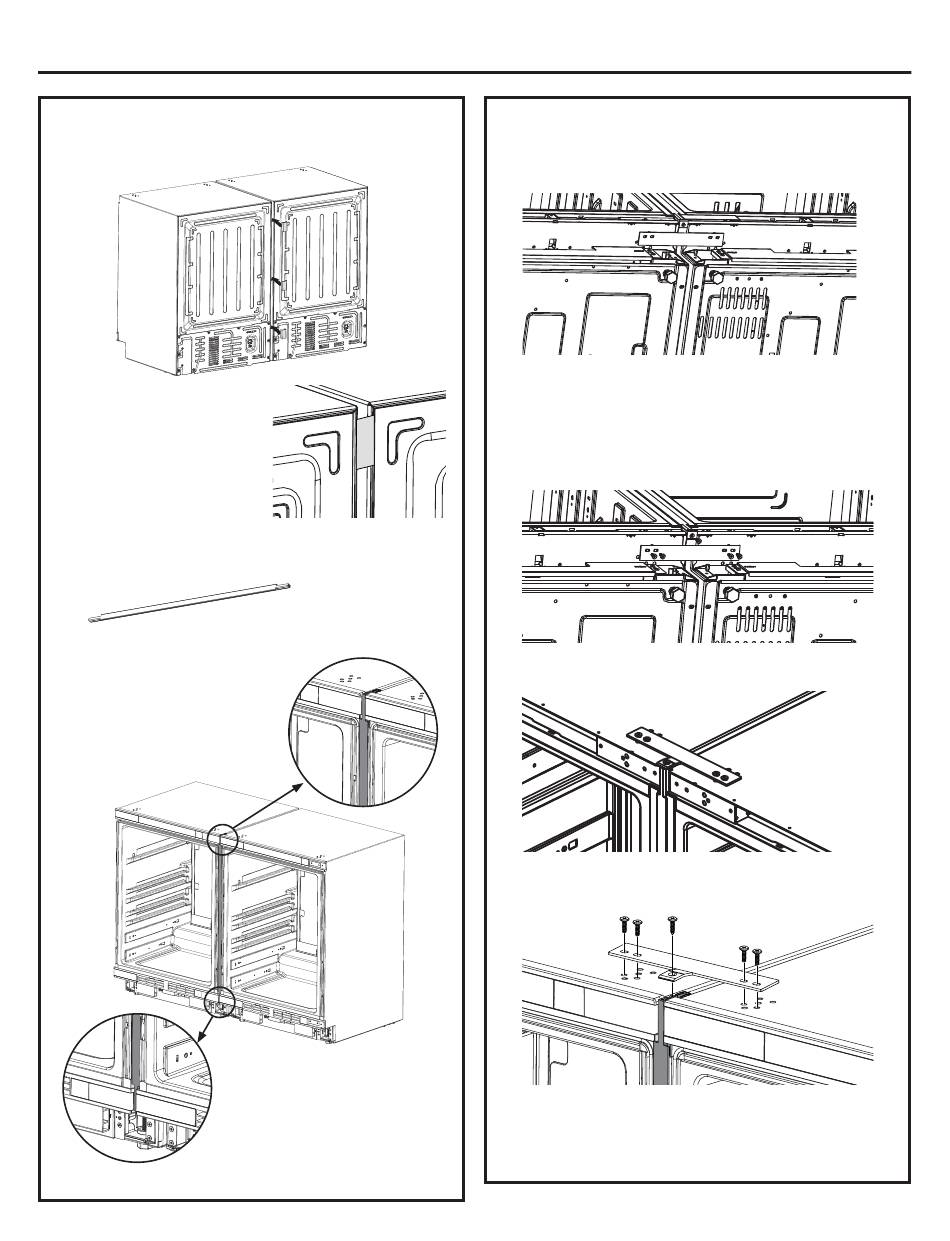

JOIN DUAL UNITS
6. Install Bottom Connector.
A. Place the bottom connector as shown.
B. Install one Fastener C screw and four Fastener E
screws.
Note: Fastener C screw attaches the bottom connector
to the front trim (front connector) piece. The Fastener
E screws attach the bottom connector to the bottom of
both boxes.
7. Install Top Connector.
A. Place the top connector as shown.
B. Install one Fastener C screw and four Fastener E
screws.
Note: Fastener C screw attaches the top connector
to the front trim (front connector) piece. The Fastener
E screws attach the top connector to the top of both
boxes.
(cont.)
49-1000775 Rev. 2
