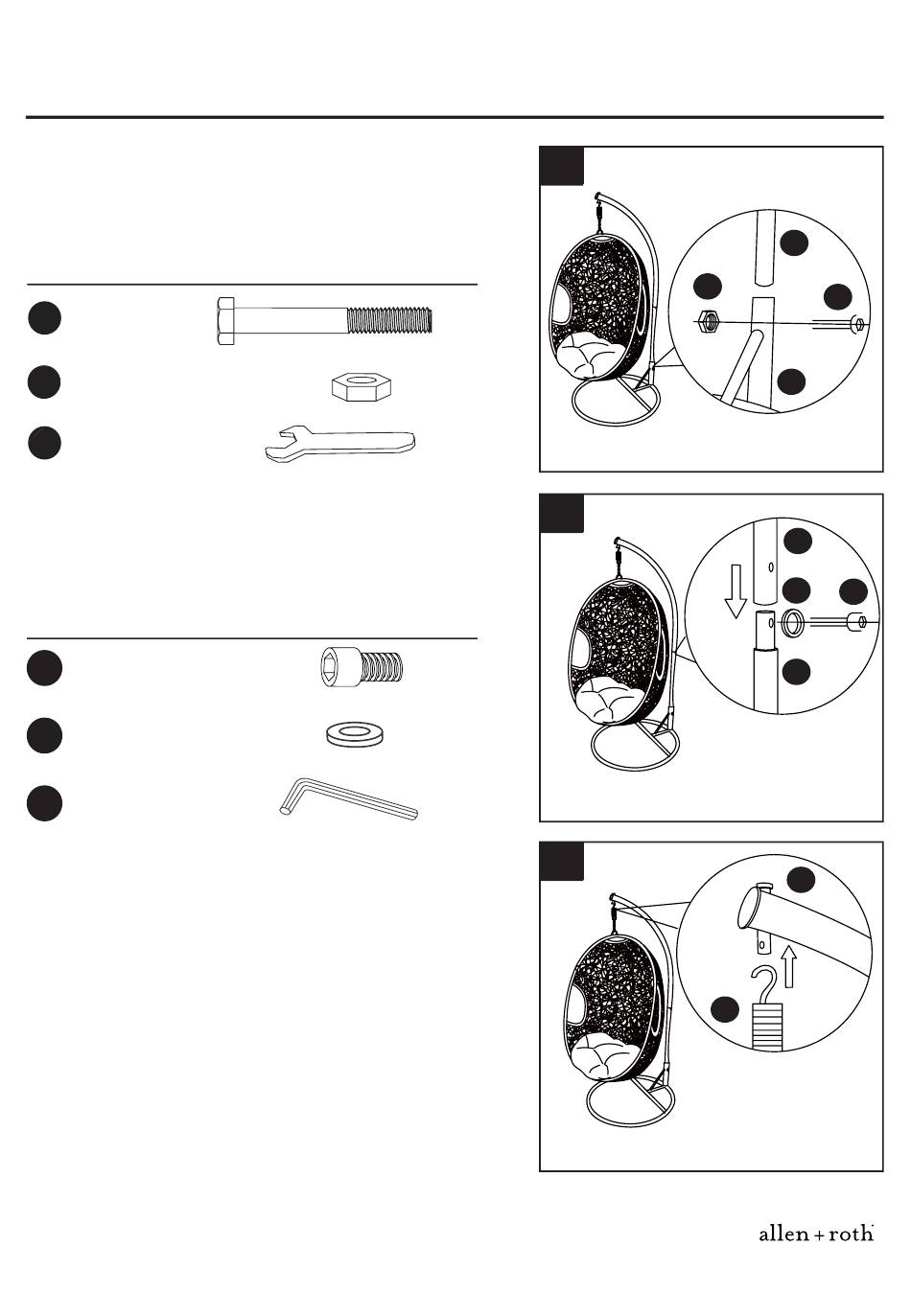

ASSEMBLY INSTRUCTIONS
1. Insert connecting pole (C) into base stand (D) and
secure with bolt (CC) and nut (DD). Fully tighten
using wrench (FF).
Hardware Used
CC
M10 x 65 mm
Bolt
DD
M10 Nut
M10 Wrench
FF
2. Insert connecting pole (C) into top pole (B) and
secure with bolt (AA) and flat washer (BB) using
wrench (EE). Fully tighten.
Hardware Used
M8 x 12 mm
AA
Inner Hex Bolt
BB
M8 Flat Washer
Hex Key
EE
Wrench
3. Position the seat (A) hook on top pole (B).
