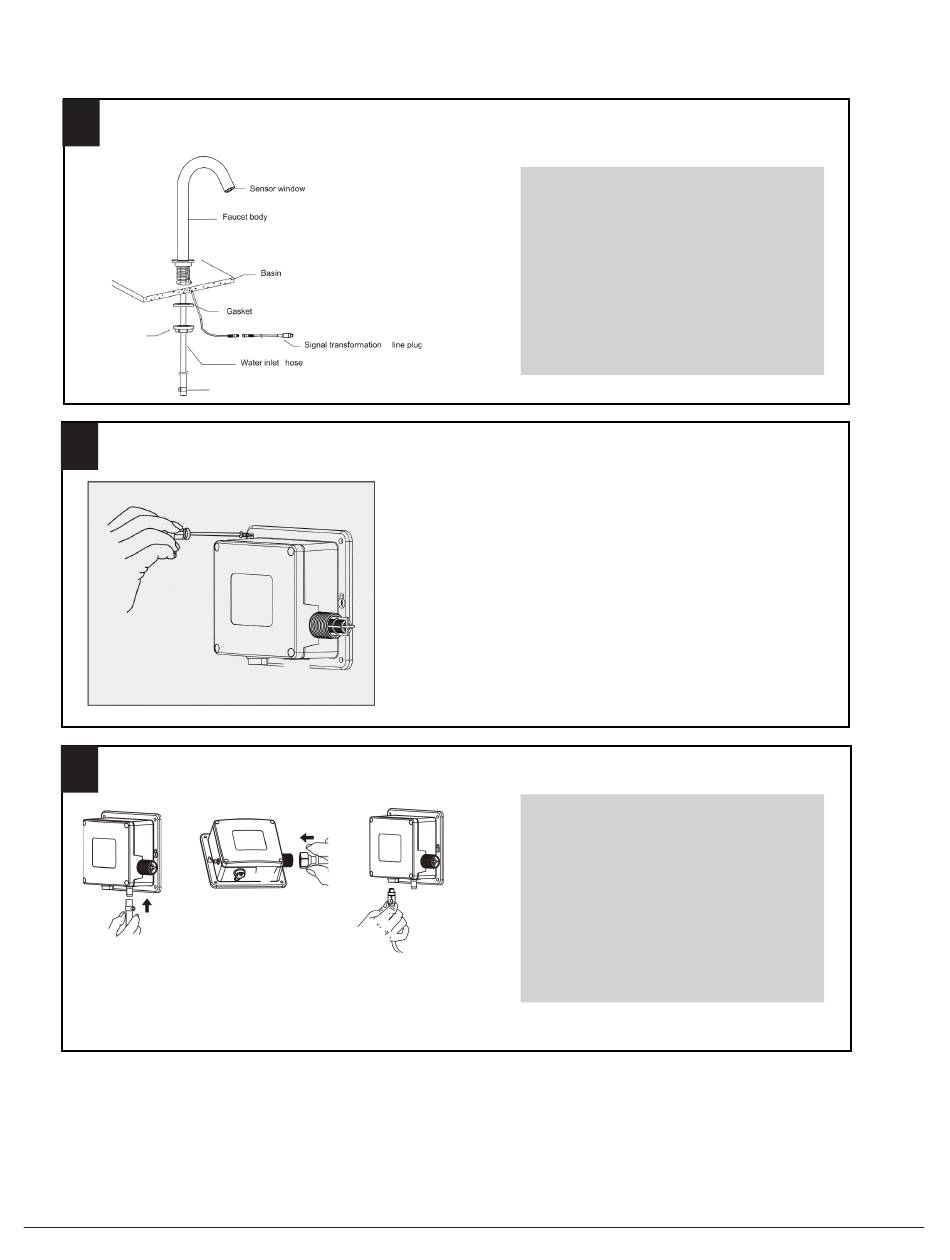

3. Installation Guide
1
Install faucet body
2
Install control box
3
Connect water supply
Fig. 3.1
2
Fig. 3.2 Fig. 3.3
1.1 Place the faucet into the sink ledge or
drilled faucet hole. Recommended hole size
1 3/8" - 1 1/2" (35 - 38mm).
1.2 Put gasket and nut in the water inlet hose
and screw on nut tightly to bottom of faucet.
2.1 Place the control box on the wall, ensuring
it is closer than 20" (50cm) from the sink.
2.2 Affix the control box to the wall with four
screws included.
3.1 Connect water outlet hose from faucet
body to control box. Secure with clamp.
3.2 Connect G 1/2" water supply hose to the
water inlet.
3.3 Connect the signal line to the control box.
HHF49GZMI | 06/20
