Hands Free Faucet HHF49G
Installation and Operating Instructions
1. Safety First
These instructions relate to the use of the Franke Hands Free
Faucets only, any external or 'add-on' parts will be supplied with
separate instructions.
Appropriate personal protective equipment must be worn when
installing, calibrating and commissioning this product.
It is recommended that the electrical part of the installation be
carried out by a qualified electrician in accordance with the latest
electrical regulations. It is also recommended that any plumbing is
carried out by a qualified plumber.
If the faucet is used by individuals (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, they must be given adequate supervision or instruction
concerning use of the faucet by a person responsible for their
safety. Children should be supervised to ensure that they do not
play with the faucet.
IMPORTANT: Please read these instructions
carefully and follow each stage in order!
Franke Kindred Canada Limited | 1000 Franke Kindred Road | Midland | Ontario | Canada | L4R 4K9
CANADA: T 1-855-446-5663 | F 1-866-227-3050 | commercial-info.ca@franke.com
USA: T 1-855-526-0503 | F 1-866-440-2250 | commercial-info.us@franke.com

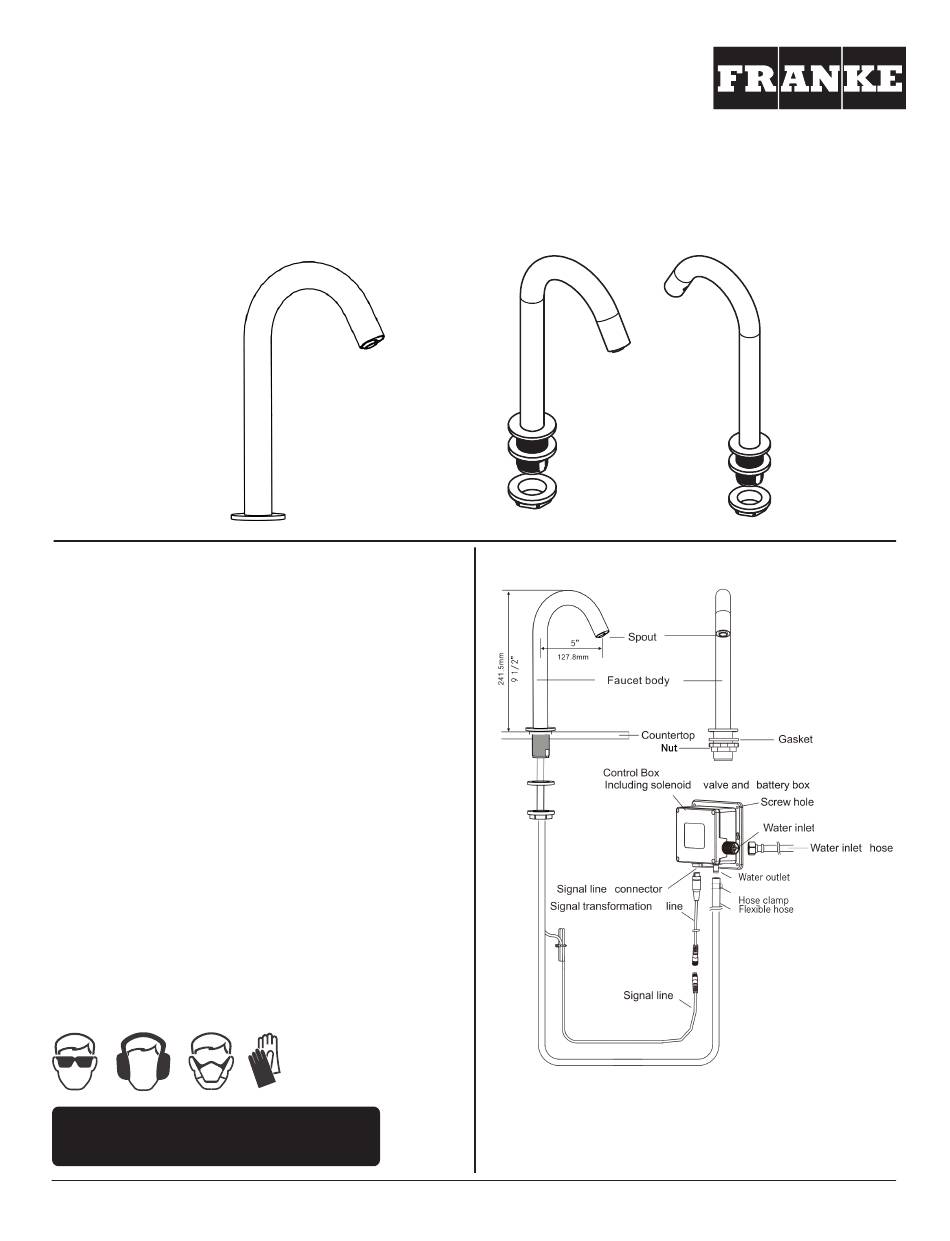

2. Faucet Parts Diagram
HHF49GZMI | 06/20
