NATURAL GAS CONVERSION INSTRUCTION
16
17
Note to installation technicians. Verify the manifold pressure by using a
3/8" flared T-junction(not included) at the location marked by the arrow below.
Then usinga digital manometer verify that the pressure before the orifice is
7" W.C. Also verify that the orifice spud has the 3.86mm or 3.9mm marked.
This will allow you to verify that the input rating of the appliance is correct.
Bellows
For installations at elevations above 2000 ft. (610 m) contact your local dealer or gas
supplier before installing as input rating should be reduced approximately 4% for each
1000 ft. above sea level. Refer to the National Fuel Gas Code.
Contact the Ocean Rock USA for more information at 800-678-7294.
!
IMPORTANT

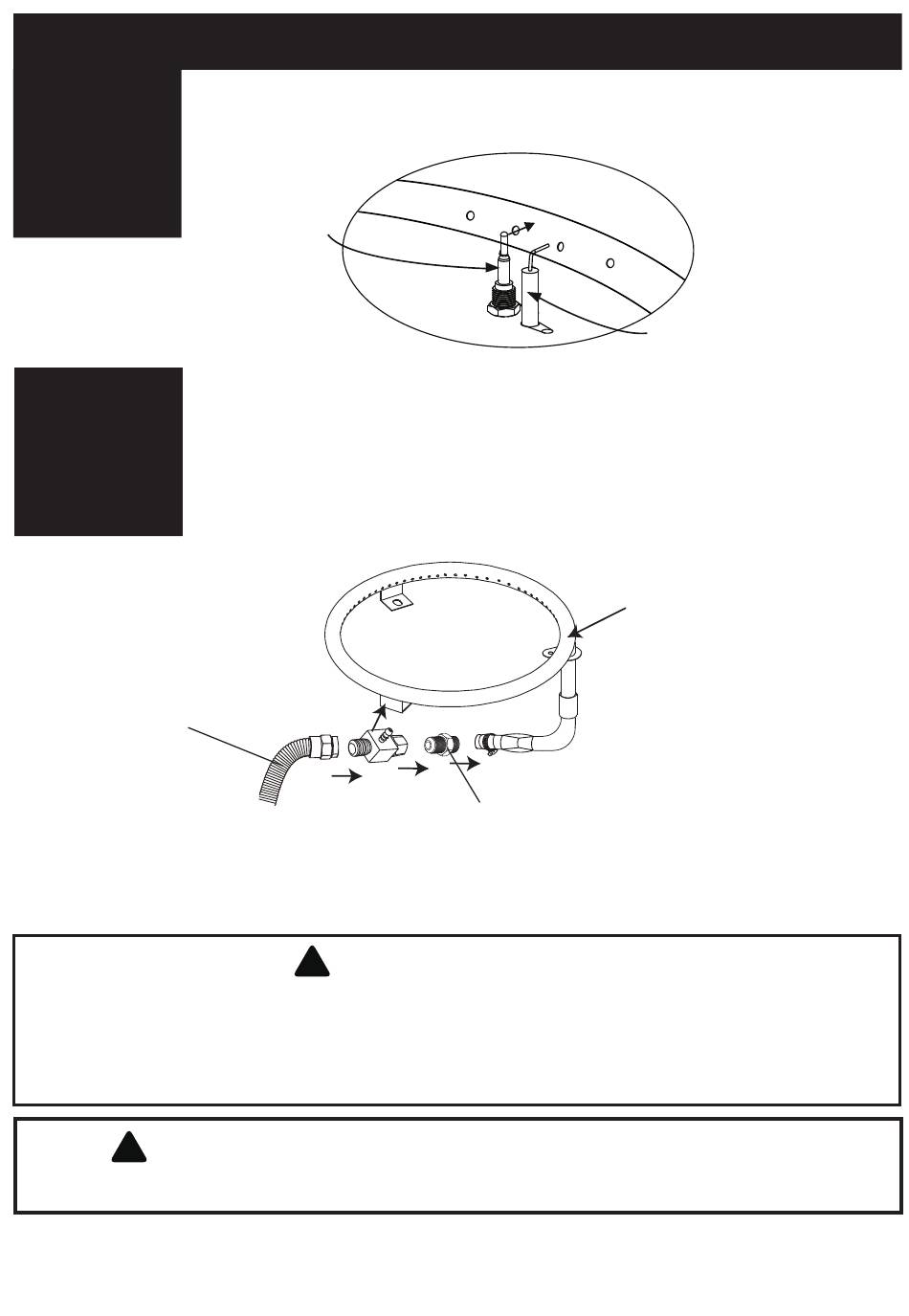

After installing the conversion kit, verify the location of the Thermocouple and
Igniter Pin using the illustration below.
Thermocouple
To Manometer
!
Installing at Altitude
The proper manifold pressure for this converted appliance is 7" W.C..
The maximum inlet gas pressure for this unit is 10.5 in wc (2.61 kPa)
The minimum inlet gas pressure for this unit is 3.5 in wc (0.87 kPa)
5mm /
0.196"
NG Orifice Spud
11 / 40
Igniter Pin
Burner Tube
