S-6610-1.5, S-6612-1.5
Single Handle Centerset Lavatory Faucet
Operation & Maintenance Manual
Model Numbers

S-6610-1.5
Unity Single Handle Centerset Lavatory Faucet
Less Rod

S-6612-1.5
Unity Single Handle Centerset Lavatory Faucet
Compliance
-NSF/ANSI 372, NSF/ANSI 61.9
-ASME A112.18.1/CSA B125.1
-WaterSense 1.5 gpm (5.7 L/min)
WARNING: This product can expose you to chemicals
including lead, which is known to the state of California to
cause cancer, birth defects, or other reproductive harm.
For more information, go to www.P65Warnings.ca.gov.
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.

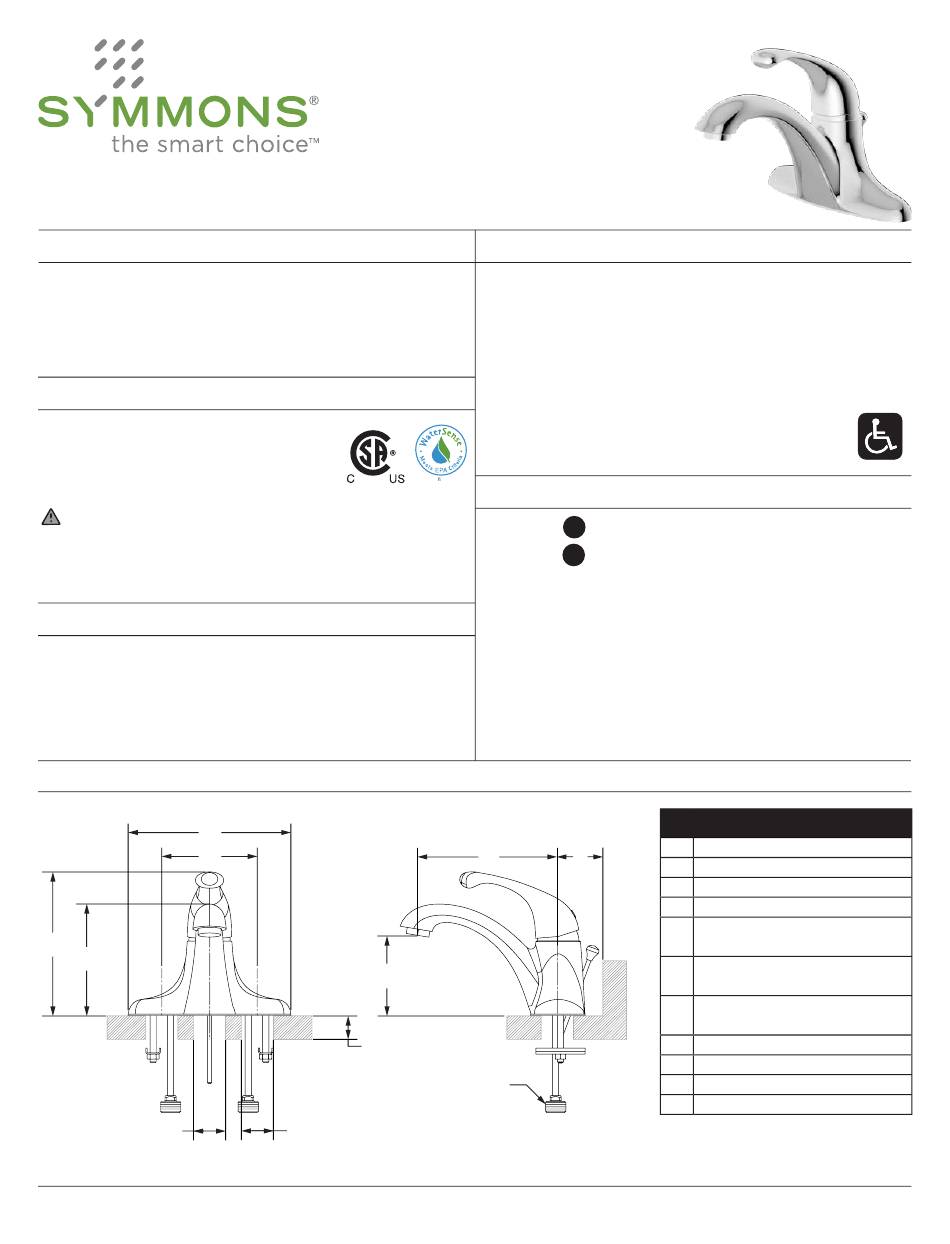

Dimensions
A A
B B
C C
D D
F F
Note: Dimensions subject to change without notice.
All manuals and user guides at all-guides.com
Unity
®
Certi ed by
CSA Group
H H
E E
G G
Specification
Single handle centerset lavatory faucet featuring a
4" mounting configuration. Includes ceramic cartridge,
1/4" copper supply lines, 1/2" IPS inlet connections,
50/50 drain assembly and standard 1.5 gpm (5.7 L/min)
aerator. Components made from brass and nonmetallic
materials plated in standard polished chrome finish.
Modifications
-0.5
0.5 gpm (1.9 L/min) aerator
 CG
-1.0
1.0 gpm (3.8 L/min) aerator
 CG
-G
Grid drain

-Delete
2.2 gpm (8.3 L/min) aerator

Suffix
1.5
-MP
Metal pop-up drain in place of standard

-STN
Satin Nickel finish

Note: Append appropriate -suffix to model number.
I I J J
K K
Measurements
A 6-5/8", 168 mm
B 3-3/8", 86 mm
C 5-7/8", 149 mm
D 4-1/2", 114 mm
Deck Thickness Ref.
E
Max. 1-3/8", 35 mm
Hole Size
F
Ø 1-3/8", 35 mm
(2x) Hole Size
G
Ø 1-1/2", 38 mm
H 3-1/4", 83 mm
I 5-3/4", 146 mm
J Min. 2-1/2", 64 mm
K 1/2-14 NPSM
