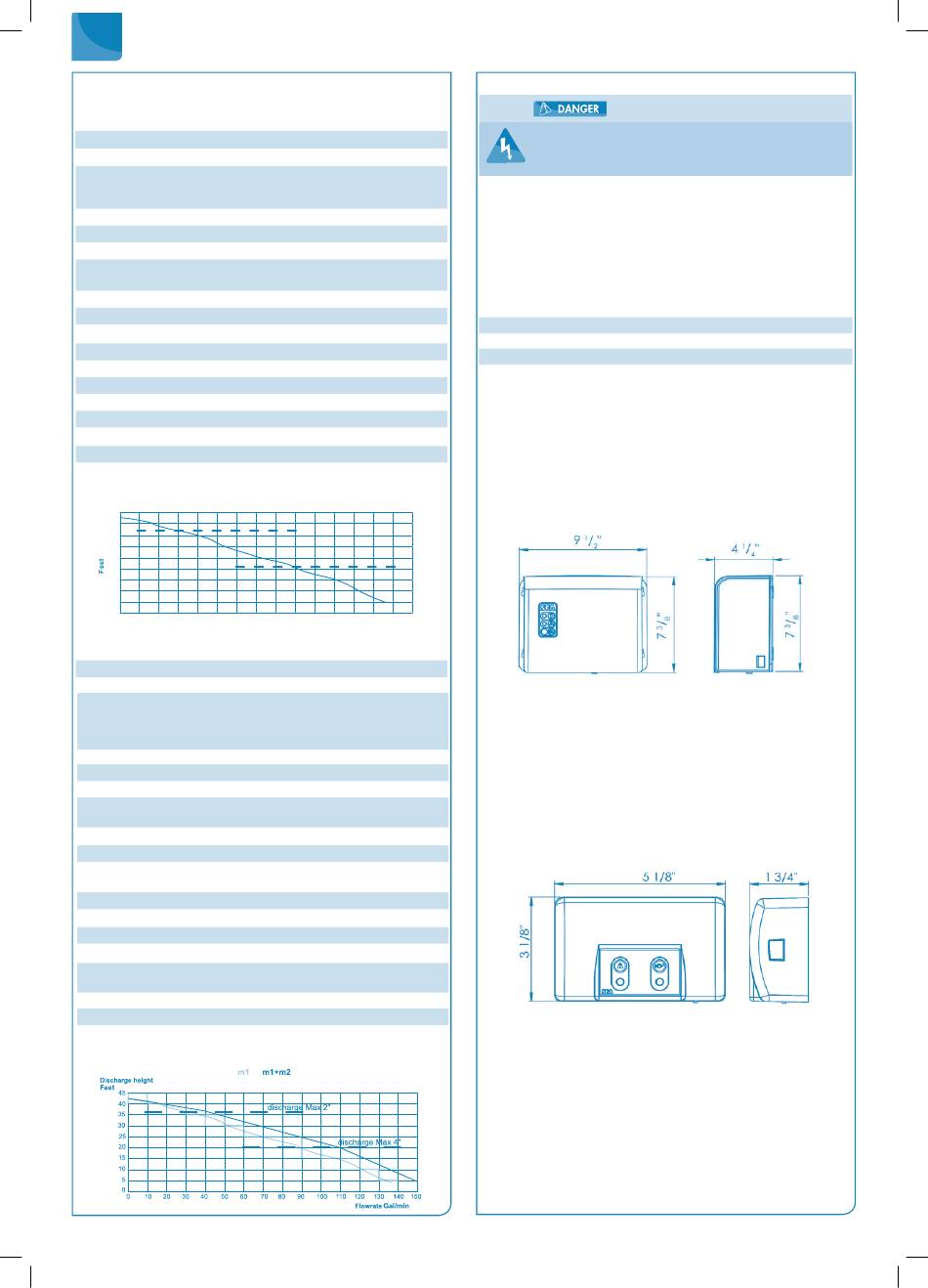

3.5 Technical data
Submersible pumping stations for blackwater
SANICUBIC® 1 VX
Type of current
Power/Electrical information
Motor - Pump
Type of pump
Cable station – control box
Control box cable – socket
Protection
Station:
Control box:
Max. recommended height
Shut off head
Max. flow
Max. temperature of incoming wastewater
Tank volume
Usefull volume
Height of low inlets (from the ground)
Gross Weight [lbs]
Waste pipe
Inlet
Ventilation
Flow curve
Discharge height
45
40
35
30
25
20
15
10
5
0
0
10
20
30
40
50
60
Gal/min
SANICUBIC® 2 VX
Type of current
Power/Electrical information
Motor - Pump
Type of pump
Cable station – control box
Control box cable – socket
Protection
Station:
Control box:
Max. recommended height
Shut off head
Max. flow
*Both motors in operation
Max. temperature of incoming wastewater
Tank volume
Usefull volume
Height of low inlets (from the ground)
Gross Weight [lbs]
(including packaging and accessories) :
Waste pipe
Inlet
Ventilation
Volume units of measurement : Gal (US)/min
Flow curve
Single-phase
220-240V/ 60 Hz / 12A/ 1,5 HP
Oil bath cooled
Thermal overload protection
Class F insulation
Vortex Impeller
13 feet - H07RN-F-4 G 1.5
8 feet-14/3 AWG SJOOW
IP68
IPX4
36 Ft (2'') / 20 Ft (4'')
43 ft
125 gpm (2'') / 137 gpm (4'')
158 °F (Max. 5 min.)
15.9 gallons
5.5 gallons
6 1/8 ''
68 lbs
2'' or 4''
Ø 1 1/2'' or 4''
2 1/2''
discharge Max 2"
discharge Max 4"
70
80
90
100
110
120
130
140 150
Flowrate
Single-phase
220-240V/ 60Hz/ 2 x12A / 2 x1,5 HP
Oil bath cooled
Thermal overload
protection
Class F insulation
Vortex Impeller
13 feet - H07RN-F-4 G 1.5
8 feet-12/3 AWG SJOOW
IP68
IPX4
36 Ft (2'') / 20 Ft (4'')
43 ft
145 gpm (2'') or 250 gpm (4'')
158 °F (Max. 5 min.)
31.7 gallons
6.8 gallons
7 1/2''
223 lbs
2'' or 4''
Ø 1 1/2'' or 4''
2 1/2''
3.6 Control box
Submersion of the control device
Risk of death by electric shock
w Only use the control device in rooms safe from floods
SANICUBIC® VX remote control box
• Pump control and monitoring cabinet integrated into a compact plastic housing
• For 1 or 2 pumps
• Option of forced mode
3.6.1 Electrical characteristics
Table 3: Electrical characteristics of the control box
Parameter
Nominal power supply
Network frequency
Protection index
3.6.2 Technical characteristics of the detection device
Analog level sensor:
• Input voltage 0 - 5 V
Process outputs:
• One potential-free signalling output (250 V, 16 A) NO Contact
• One signalling output for the wired alarm unit that comes with the device
(except SANICUBIC® 2 VX): 5V, 50mA
3.6.3 Dimensions of the remote control box
3.7 Alarm unit
3.7.1 Technical characteristics of the alarm device
SANICUBIC® VX alarm unit:
Wired alarm unit
16'' cable
Audio and visual information
Protection index: IP20
3.7.2 Dimensions of the remote alarm unit
3.7.3 Option of connection to an external alarm
Option of externalizing the alarm signal (depending on the model). Dry
contact (no voltage) NO (normally open) operated by a max. 250V/16A relay.
The terminals can be connected to a powered system.
This contact closes as soon as the station is in alarm mode (except in the case
of area alarm) and remains closed as long as the alarm sounds.
4
Value
220-240V
60 Hz
IPX4
