Installation
1

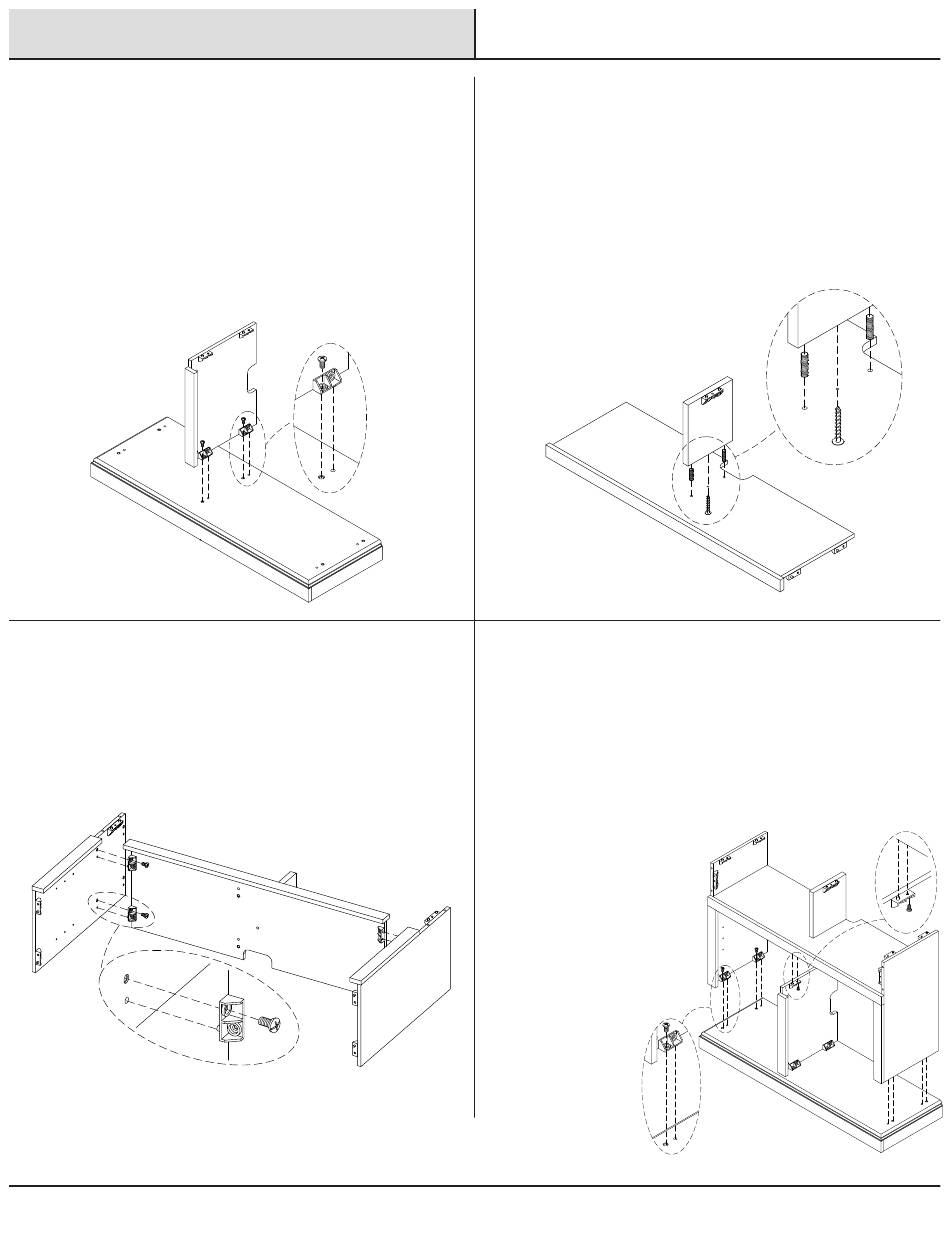

Assembling the Base and Middle
Vertical Panel
□ Locate the base panel (B) and middle vertical panel (F).
Place them on a soft surface to protect the finish.
□ Align and attach the middle vertical panel (F) to the center
holes in the base panel (B) by inserting two bolts (AA)
into the holes in the hardware in the threaded hole in the
middle vertical panel (F). Fully tighten the bolts (AA) with a
screwdriver. Set sub-assembly aside for step 4.
3
Attaching the Left and Right Panels
to the Media Shelf
□ Insert four bolts (AA) through the holes in the hardware
on the media shelf (C) and into the threaded holes on the
inside face of the left and right side panels (D & E). Fully
tighten the bolts (AA) with a screwdriver.
D
AA
F
B
C
AA
2
Assembling the Media Shelf and
Media Divider
□ Insert two dowels (BB) into the outer holes on the media
divider (G) and attach the panel to the media shelf with
screw (CC) from beneath the media shelf. Fully tighten the
bolts (CC) with a screwdriver.
4
Attaching the Base Panel
□ Locate the base panel assembly from Step 1 and align
hardware with media panel assembly as shown.
□ Insert four bolts (AA) through the holes in the hardware on
the left and right side panels (D & E) and into the threaded
holes on the top face of the base panel (B). Fully tighten
the bolts (AA) with a screwdriver.
□ Insert two bolts (AA) through
the holes in the hardware
on the middle vertical
panel (F) and into the
threaded holes on the
bottom face of the media
shelf (C). Fully tighten
E
the bolts (AA) with
a screwdriver.
6
BB
G
C
AA
C
D
F
AA
B
CC
E
