SOMFY Amy 1 RS100 io Notice page 8

EN

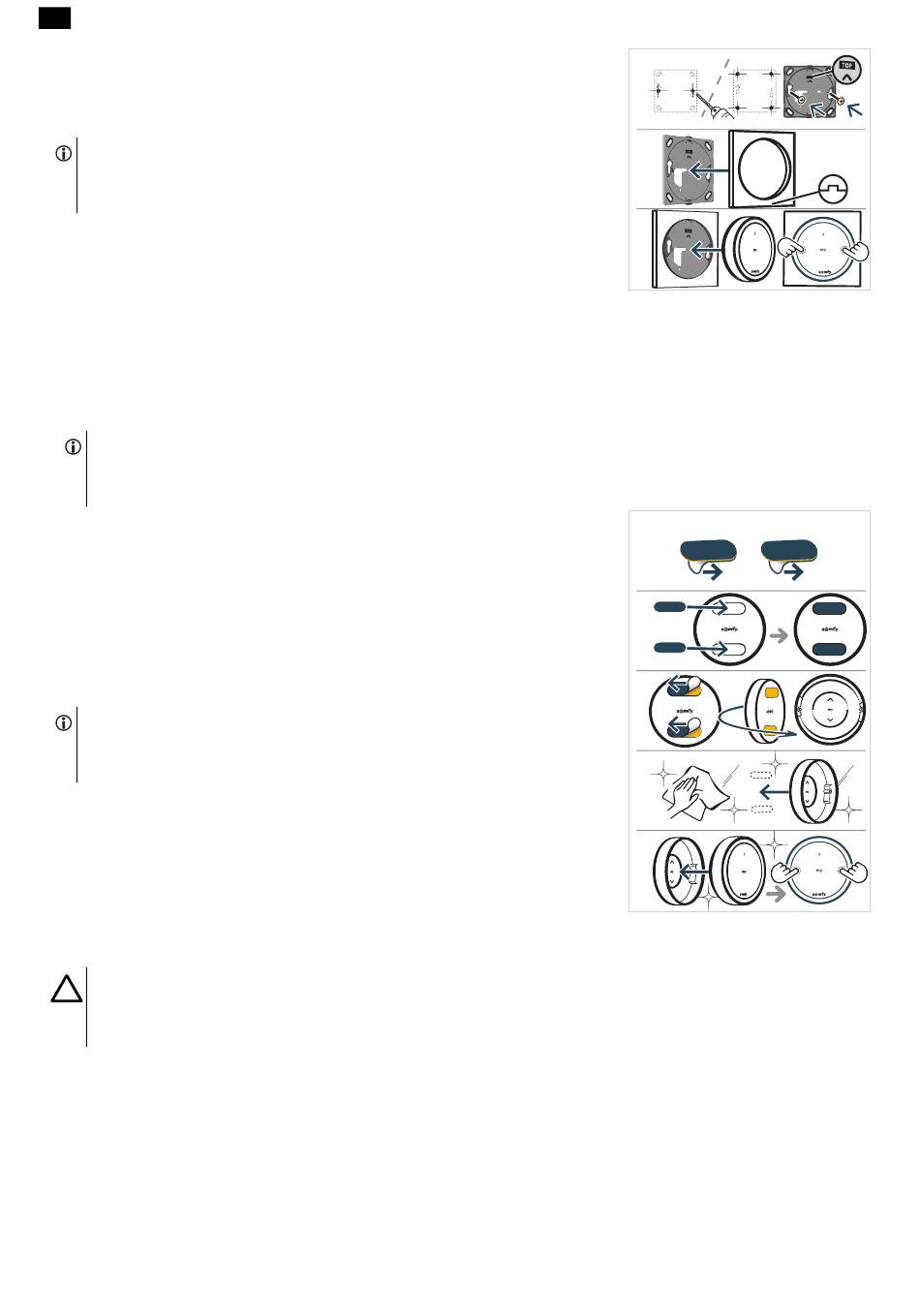

1] Fix the black mounting plate using screws appropriate for hole size and wall
type, following the orientation shown on the front panel.
2] First clip the square frame onto the black mounting plate.
NOTICE
Make sure Amy 1 RS100 io is switched on before clipping the module (refer to
Switching on Amy 1 RS100 io).
3] Clip the Amy 1 RS100 io module onto the black mounting plate through
square frame. Press firmly on the front of the module, on the right and left
near the my button as close as possible to the translucent circle without
pressing on the edges of the module (to avoid unwanted radio transmission),
until it clicks into place.
2.5.2.Wall mounting with circular back cover
2.5.2.1. Using double-sided tapes
NOTICE
The product is designed to be fixed to most wall surfaces, such as paint, wallpaper, earthenware, wood, varnished
wood, primer/coating. However the walls must be flat and clean.
1] Remove the protective films from the double-sided tapes.
2] Take the provided circular back cover and stick the double-sided tapes on its
back.
3] Remove the second protective films from the double-sided tapes already
sticked.
4] Following the orientation indicated inside the circular back cover, press it on a
flat, clean, and dry surface. Make sure it is firmly fastened to the surface.
NOTICE
Make sure Amy 1 RS100 io is switched on before clipping the module (refer to
Switching on Amy 1 RS100 io).
5] Clip the Amy 1 RS100 io module onto the circular back cover. Press firmly on
the front of the module, on the right and left near the my button as close as
possible to the translucent circle without pressing on the edges of the module
(to avoid unwanted radio transmission), until it clicks into place.
2.5.2.2. Using screws
CAUTION
• Do not use an electric screwdriver.
• The order of assembly must be followed to ensure that the parts fit together correctly and don't get damaged.
8
1]
2]
3]
1]
2]
3]
Designed in France
4]
5]
©
Copyright 2024 SOMFY ACTIVITES SA. All rights reserved.
