FIELD TEST DEVICE - LoRaWAN Europe - Guide utilisateur / User guide version V2.0.0
The request are identify «JR» following with a number showing the number of request done. The frequency used for the request is showing after
this information.
Note : If there is no network available, the «Join Request» will be send indefinitely.
Item
RF status
(Second on the left)

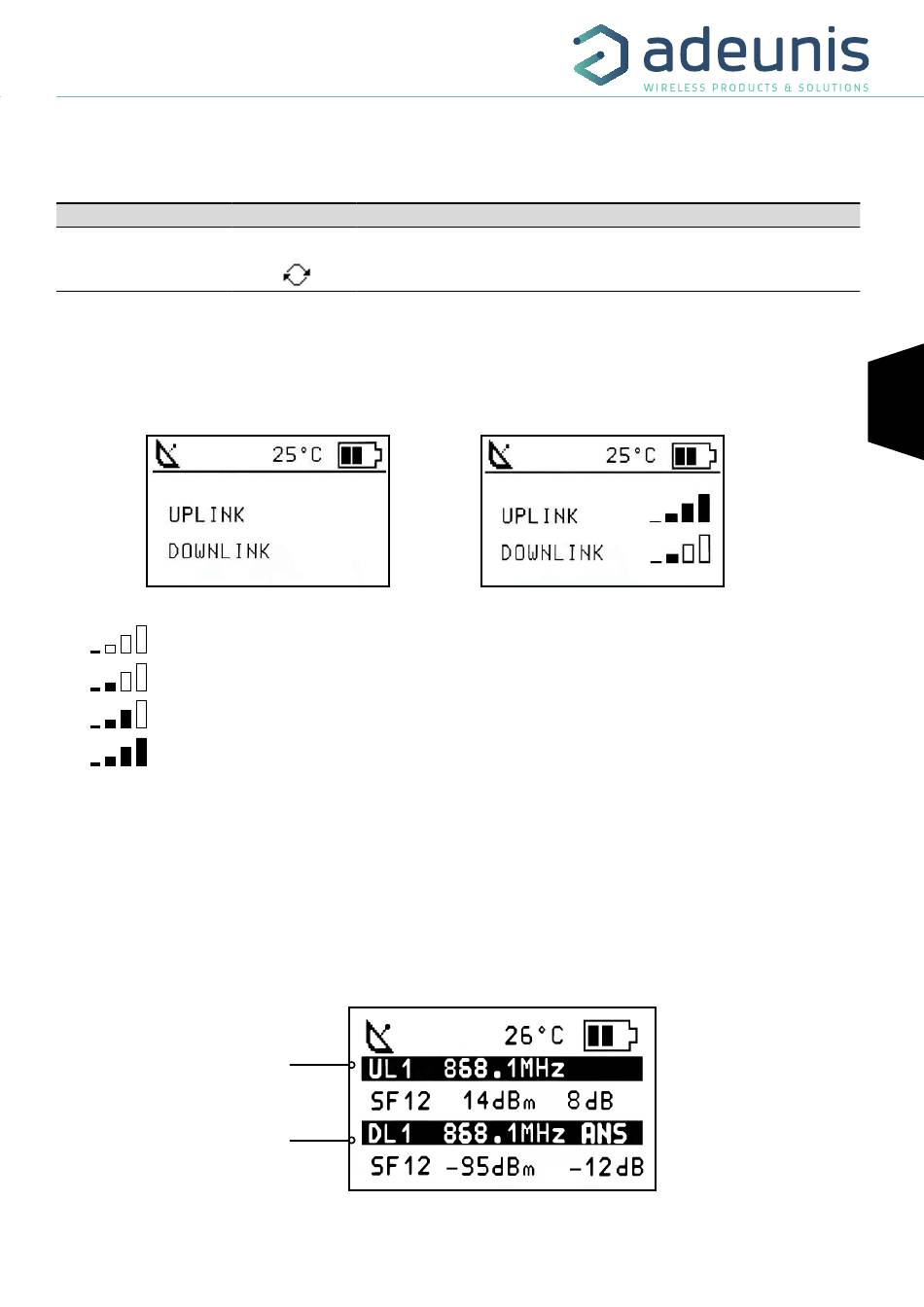

3.3. Uplink/Downlink screen - "simplified" view
This screen is the first screen displayed after the "Start screen".
On this screen, only 2 indicators are available in the form of network bars to give the radio link quality (uplink and downlink).
When the device is sending a message or when no frame has been received by the FTD, there is no indicator on the screen. After reception of a
downlink the FTD shows the 2 indicators of the link radio quality from 1 bar to 4 bars.
Before reception of the network reply
No network or very weak signal, installation not possible.
Bad network, frame loss rate higher than 10%, installation is not recommended by adeunis.
Good network, frame loss rate lower than 10%, installation possible but autonomy of the transmitter not optimized.
Very good network, no frame lost or very low frame loss rate, installation possible and optimized autonomy of the transmitter.
3.4. Uplink/Downlink screen - "advanced" view
This screen is displayed after pushing the screen button (pushbutton 2).
Uplink and Downlink transmission information will be displayed on the LCD screen.
• The first line show the Uplink information «ULx» with x for the number and frequency of repetition.
• The second line show the SF, the power used and the SNR of the uplink (given by the gateway).
• The third line show the Downlink information «DLx» with x for the number and frequency of the reception window
• The last line show the SF, RSSI and SNR of the frame received
Status bar
Transmission
information
Icon Description
No icon The JOIN phase is completed and the device is operational on the network
The device is in JOIN phase, and is trying to connect to the network
After reception of the network reply
Advanced screen
