2.1 IDENTIFICATION CODE
The root part number could have an optional suffix, which not influential the equipment and the type of protection.
593.xyz-w...-nE
• 593
Product Series
• x
Enclosure configuration:
1 = enclosure size 1
3 = enclosure size 3
4 = enclosure size 3 with enclosure size 1 ( interconnected with nipple MP00076 )
• y
Elements configuration:
1 = enclosure with 1 element ( size 1 ), or enclosure with 1 element and 1 instrument ( size 3 )
2 = enclosure with 2 elements
3 = enclosure with 3 elements
•
Number of enclosures :
1 = enclosure base size 1 or size 3
2 = enclosure base size 1 joined with enclosure size 3.
• w
Cable entries :
1 = n° 1 cable entry M20x1.5 ( top or bottom )
2 = n° 2 cable entries M20x1.5 ( top and bottom )
3 = n° 3 cable entries M20x1.5 ( 1 top and 2 bottom, and vice-versa )
4 = n° 4 cable entries M20x1.5 ( 2 top and 2 bottom )
5 = n° 1 cable entry M25x1.5 ( top or bottom, no metallic cable glands allowed )
6 = n° 2 cable entries M25x1.5 ( top and bottom, no metallic cable glands allowed )
• ...
Elements type, ( Mushroom pushbutton, Push Button, Pilot Light, Switches, instruments etc., ).
Code composed by two or more alphanumeric characters.
• n
Minimum ambient temperature :
- = Minimum ambient temperature -35°C, (Standard temperature when this option is not mentioned).
A = For minimum ambient temperature -50°C.
B = For minimum ambient temperature -20°C.
• E
Earth-stud (Optional).

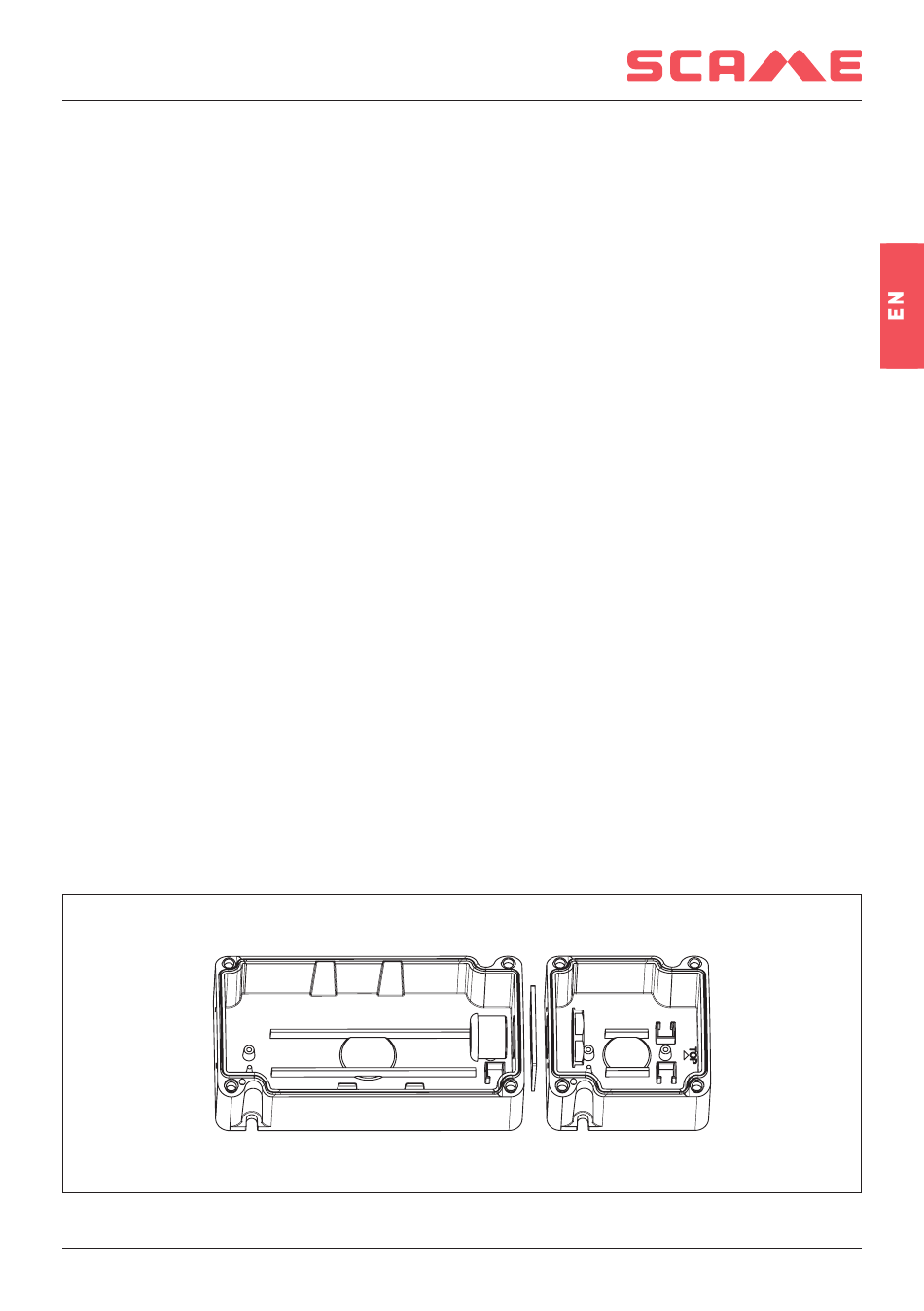

2.2 ASSEMBLED COMPACT-EX[GD]
Is possible to supply COMPACT-EX[GD] as indicated in the hereby picture, with one COMPACT-EX[GD] size 1 on
top and 1 COMPACT-EX[GD] size 3 on bottom using the SCAME threaded nipple with brass nut code MP00076.
Figure 2 – Assembled
-15-
