Instructions for installation

6.7. Installing the glass door

Screw the two door fittings onto the glass element, making sure that they are
straight and that the doors open outward.
The alignment of the fittings is achieved by adjusting / rotating both
plastic inserts.

6.8. Installing accessories

The door handles are screwed together from the inside.
Fit the door magnet and sleeve plate. There are mounting holes under the seal
for the door magnet; the seal needs to be cut at the left or right depending on
how the door opens.
Assemble the protection grille.
Install the cable cover slat as required.

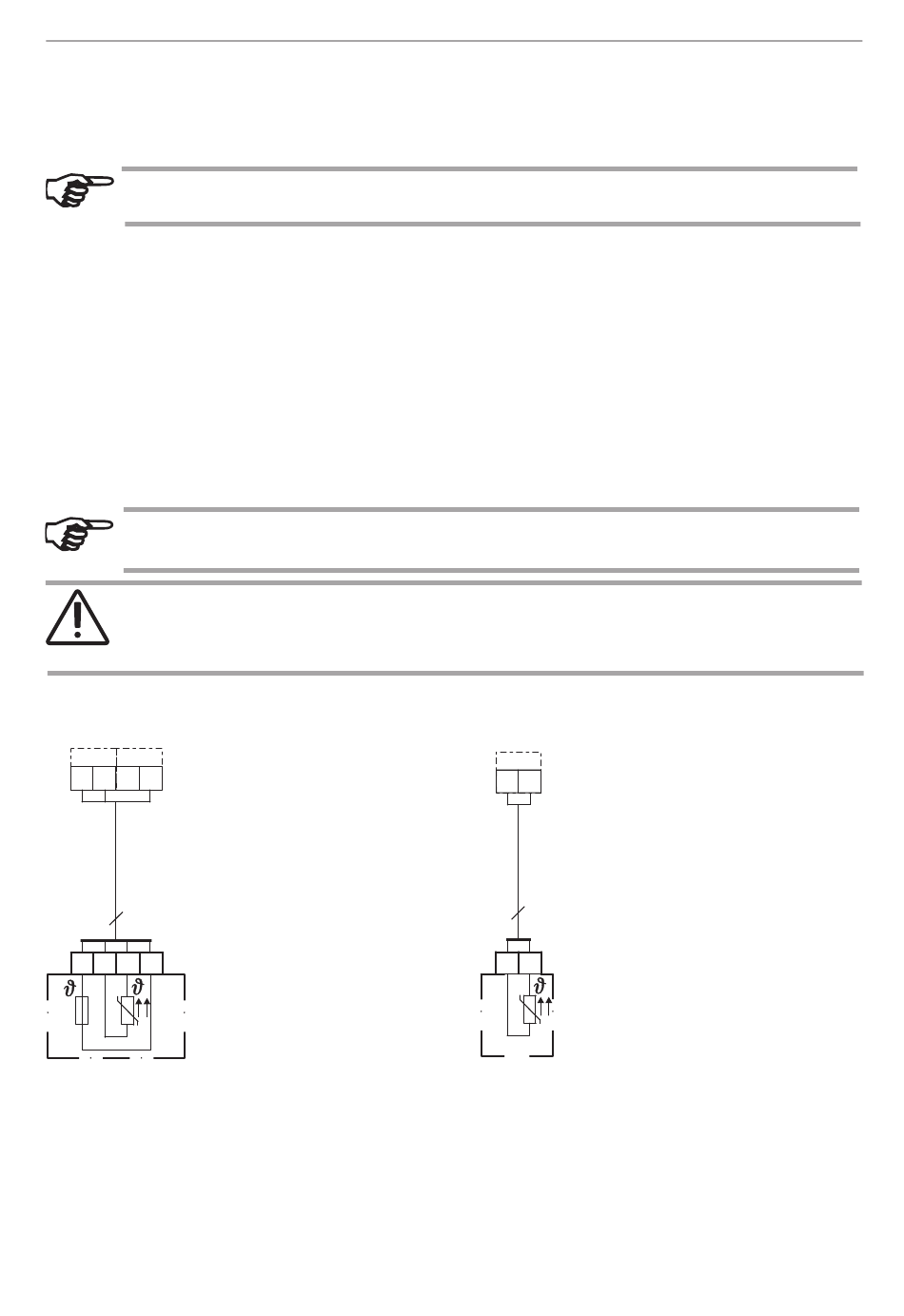

6.9. Connecting the electrical equipment

Observe the operating instructions for your sauna heater and the sau-
na control.
ATTENTION!
Installation may only be performed by a qualified electrician or similarly
qualified person.
Heater sensor (F1)
Power unit
TS F1
w w
r r
rd rd wt wt
4
r w w r
rd wt wt rd
TS F1
F1
Bench sensor (F2)
Power unit
F2
w w
wt wt
2
w w
wt wt
F2
F2
p. 14/16
Colour code:
wt - White
rd - Red
