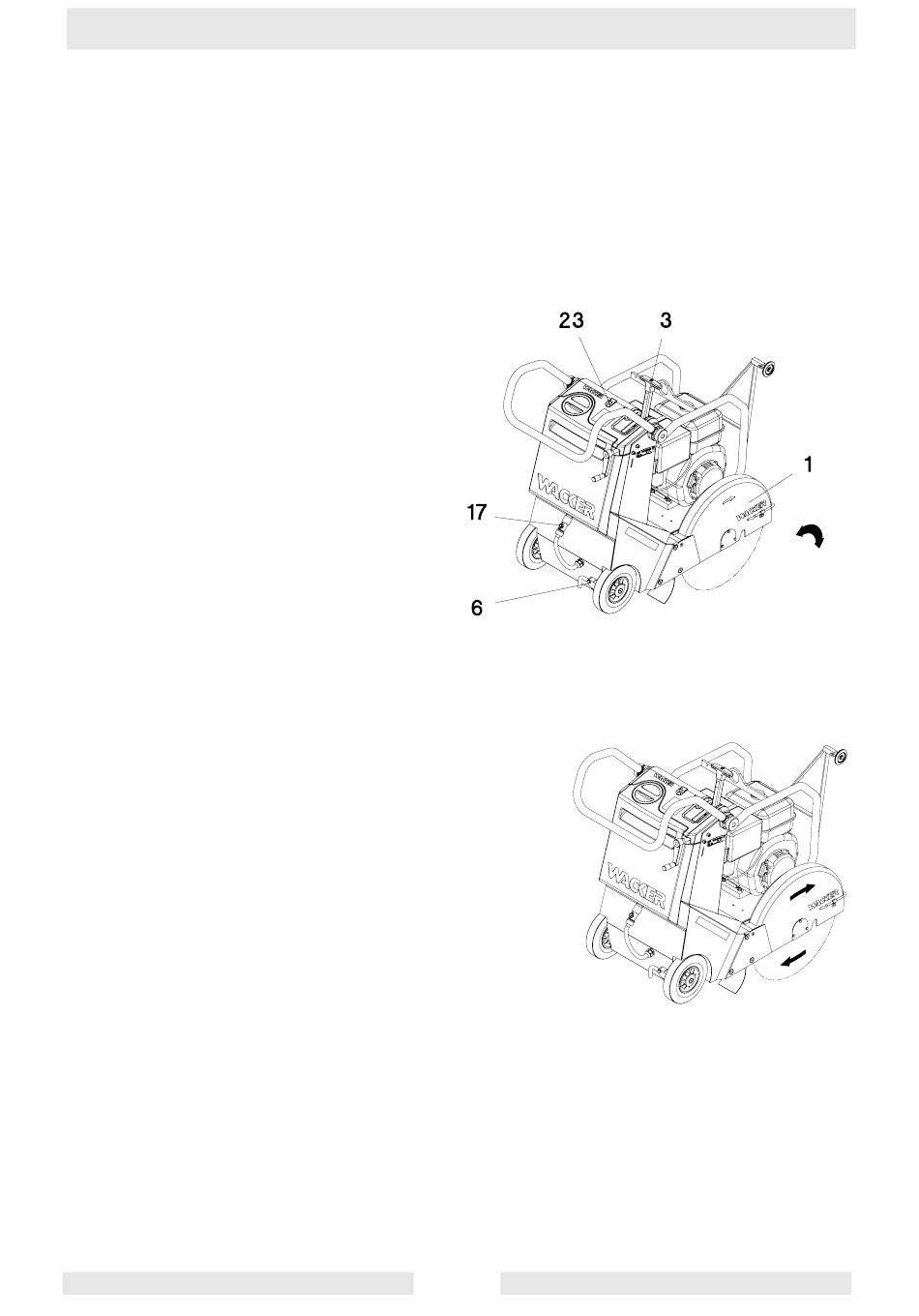

Removal of the cutting disc
Proceed as follows to remove a cutting disc:
1. Apply parking brake (6), stop engine (23) and stop water supply (17).
2. Move quick-lift lever (3) to position at the rear.
3. Disconnect the water hose.
4. Raise the cutting disc guard (1) all the way up.
5. Loosen the tightening nut. Hold cutting shaft with spanner at spanner surfaces.
Note:
To disassemble cutting disc from right side loosen nut in clockwise direction (left-handed thread).
To disassemble cutting disc from left side loosen nut in anti-clockwise direction.
Installation of the cutting disc
Before installing check new cutting disc as follows:
* The disc type must be of the appropriate type for the material to be cut. Pay attention to the circumferential
speed, see also "Technical Specifications".
* The central boring of the cutting disc must fit exactly on the shaft to make sure that the disc does not run
out of center.
* The cutting disc should not be damaged.
ATTENTION!
Pay close attention to the correct turning direction of
the cutting disc!
In other words, check to see that the turning direction
arrow on the cutting disc coincides with the turning di-
rection arrow on the cutting disc guard.
Proceed as follows for the installation of the cutting disc:
1. Clean the faceplates and the locking pin and then check to
see that they are undamaged.
2. Place an intermediate layer (disc label) under each face-
plate when using bakelite-bonded cutting discs.
3. Place cutting disc and face plate on shaft.
4. Tighten the hex nut. Hold the cutting shaft with a spanner at spanner surfaces.
Note:
To assemble cutting disc on right side tighten nut in anti-clockwise direction (left-handed thread).
To assemble cutting disc on left side tighten nut in clockwise direction.
5. Push cutting disc guard (1) back down.
The flange cover must be in place on the protective hood.
6. Connect the water hose.
ATTENTION!
Only start the unit once the water hose has been plugged in (attached) and the water feed
connected.
T00835GB.fm
15
OPERATION
